ELECTRICAL SYSTEM 16-67
Lighting System

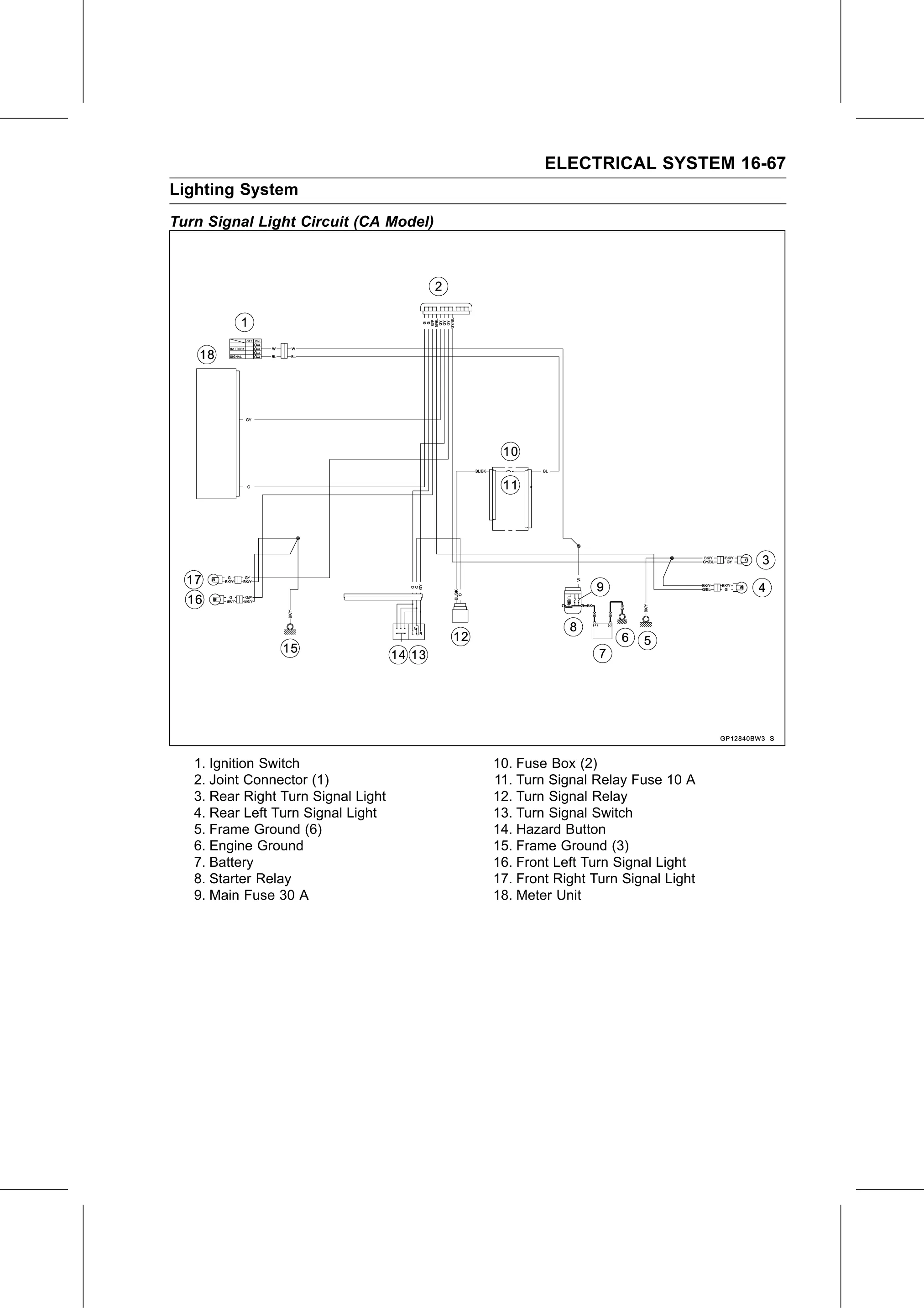

Turn Signal Light Circuit (CA Model)

   1. Ignition Switch                  10. Fuse Box (2)
   2. Joint Connector (1)              11. Turn Signal Relay Fuse 10 A
   3. Rear Right Turn Signal Light     12. Turn Signal Relay
   4. Rear Left Turn Signal Light      13. Turn Signal Switch
   5. Frame Ground (6)                 14. Hazard Button
   6. Engine Ground                    15. Frame Ground (3)
   7. Battery                          16. Front Left Turn Signal Light
   8. Starter Relay                    17. Front Right Turn Signal Light
   9. Main Fuse 30 A                   18. Meter Unit
