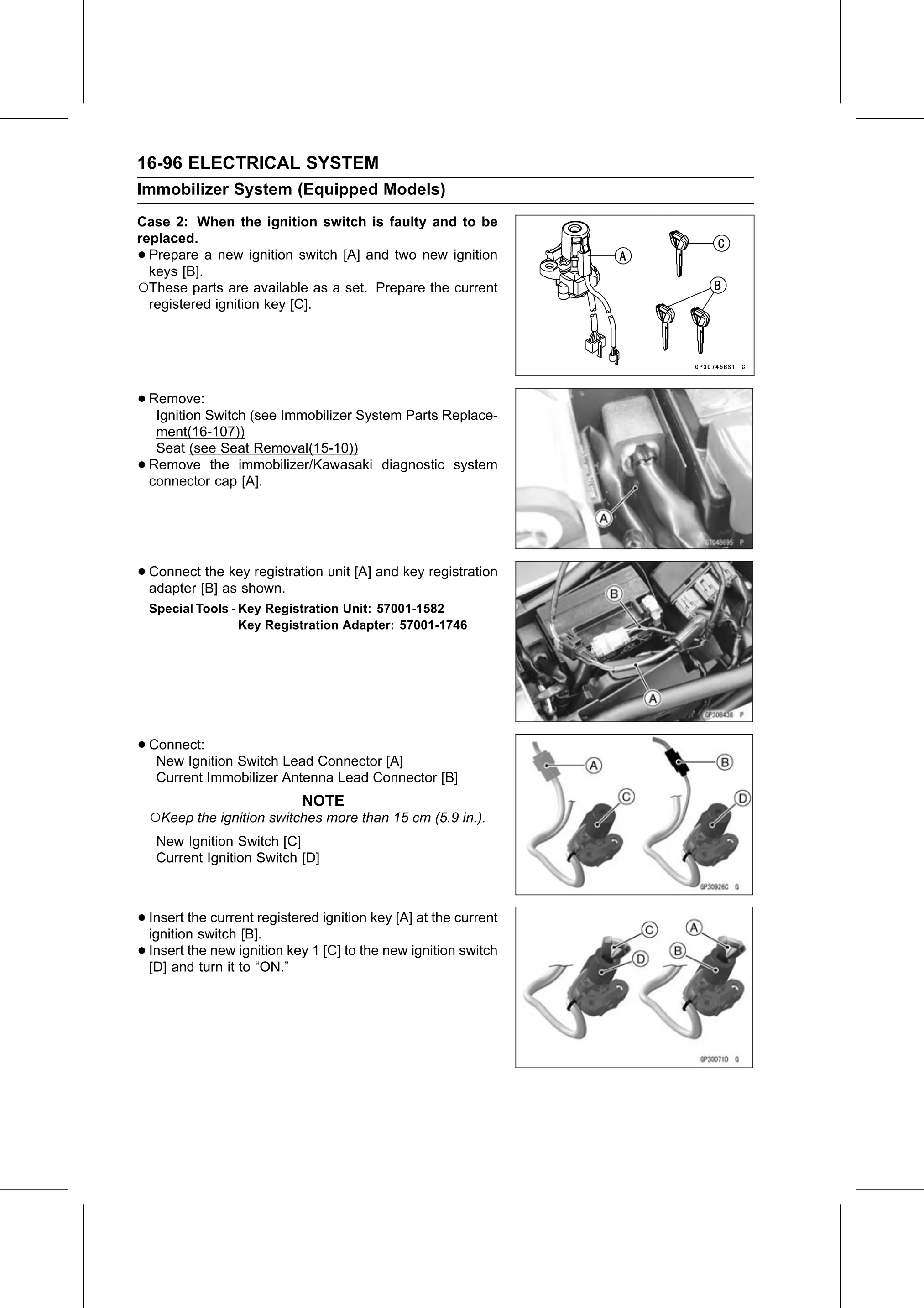

16-96 ELECTRICAL SYSTEM
Immobilizer System (Equipped Models)
Case 2: When the ignition switch is faulty and to be
replaced.
• Prepare a new ignition switch [A] and two new ignition
  keys [B].
○These parts are available as a set. Prepare the current
  registered ignition key [C].

• Remove:
   Ignition Switch (see Immobilizer System Parts Replace-
     ment(16-107))
     Seat (see Seat Removal(15-10))
•   Remove the immobilizer/Kawasaki diagnostic system
    connector cap [A].

• Connect  the key registration unit [A] and key registration
  adapter [B] as shown.
    Special Tools - Key Registration Unit: 57001-1582
                    Key Registration Adapter: 57001-1746

• Connect:
   New Ignition Switch Lead Connector [A]
     Current Immobilizer Antenna Lead Connector [B]
                             NOTE
    ○Keep the ignition switches more than 15 cm (5.9 in.).
     New Ignition Switch [C]
     Current Ignition Switch [D]

• Insert the current registered ignition key [A] at the current
  ignition switch [B].
• Insert the new ignition key 1 [C] to the new ignition switch
  [D] and turn it to “ON.”
