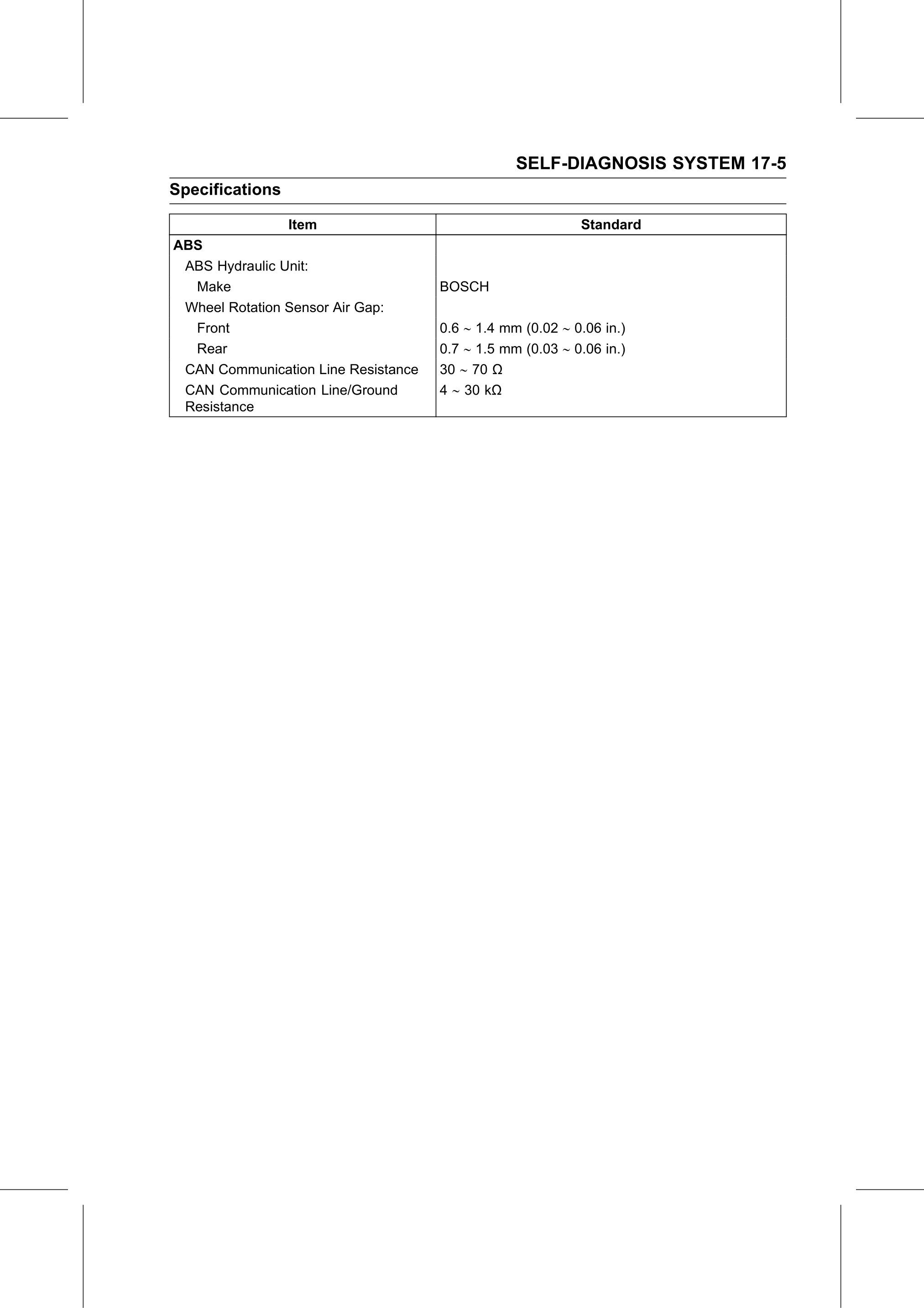

SELF-DIAGNOSIS SYSTEM 17-5
Specifications

                 Item                                      Standard
ABS
 ABS Hydraulic Unit:
  Make                               BOSCH
 Wheel Rotation Sensor Air Gap:
  Front                              0.6  1.4 mm (0.02  0.06 in.)
  Rear                               0.7  1.5 mm (0.03  0.06 in.)
 CAN Communication Line Resistance   30  70 Ω
 CAN Communication Line/Ground       4  30 kΩ
 Resistance
