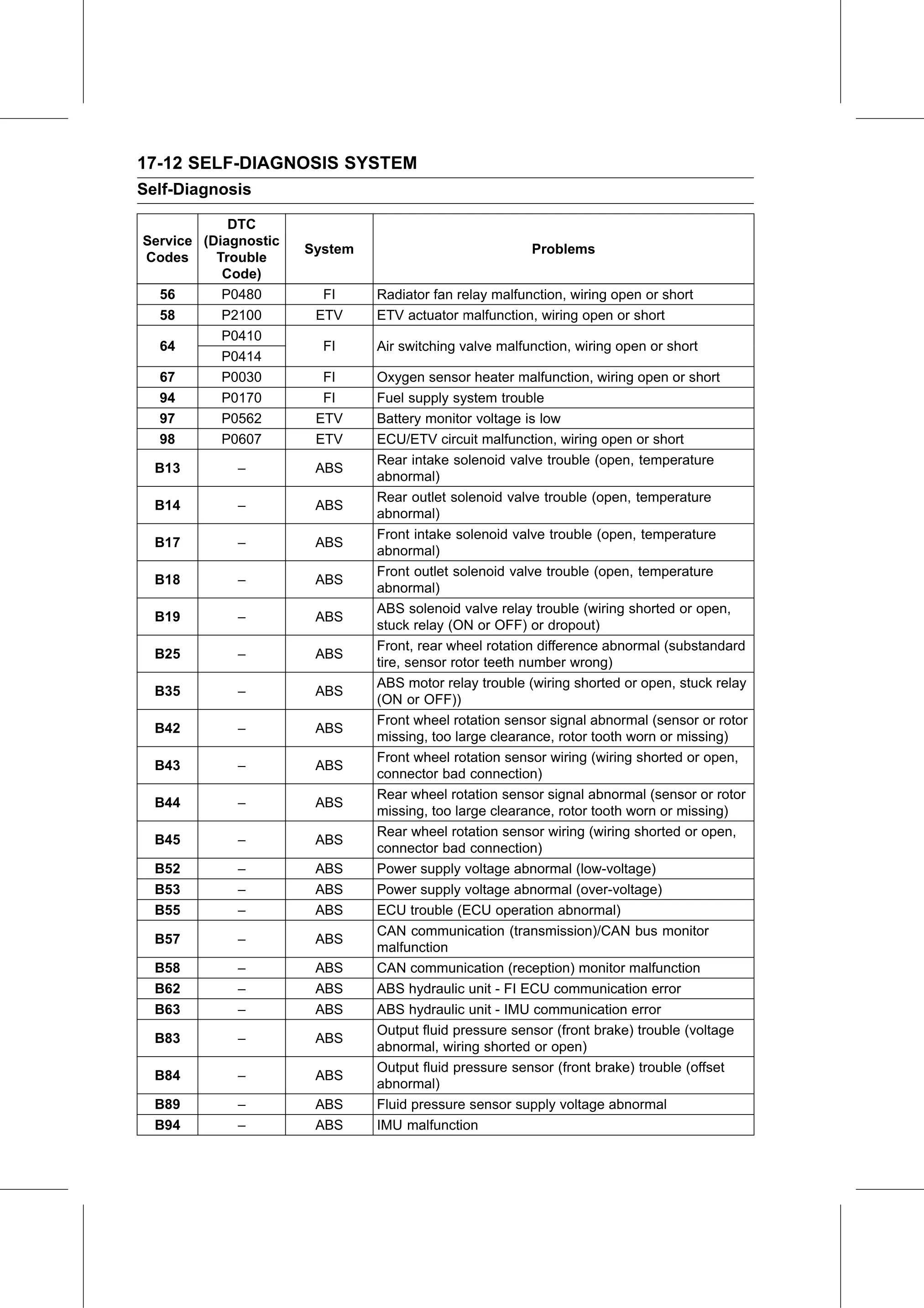

17-12 SELF-DIAGNOSIS SYSTEM
Self-Diagnosis

            DTC
Service (Diagnostic
                      System                            Problems
Codes     Trouble
           Code)
  56       P0480        FI     Radiator fan relay malfunction, wiring open or short
  58       P2100       ETV     ETV actuator malfunction, wiring open or short
           P0410
  64                    FI     Air switching valve malfunction, wiring open or short
           P0414
  67       P0030        FI     Oxygen sensor heater malfunction, wiring open or short
  94       P0170        FI     Fuel supply system trouble
  97       P0562       ETV     Battery monitor voltage is low
  98       P0607       ETV     ECU/ETV circuit malfunction, wiring open or short
                               Rear intake solenoid valve trouble (open, temperature
  B13        –         ABS
                               abnormal)
                               Rear outlet solenoid valve trouble (open, temperature
  B14        –         ABS
                               abnormal)
                               Front intake solenoid valve trouble (open, temperature
  B17        –         ABS
                               abnormal)
                               Front outlet solenoid valve trouble (open, temperature
  B18        –         ABS
                               abnormal)
                               ABS solenoid valve relay trouble (wiring shorted or open,
  B19        –         ABS
                               stuck relay (ON or OFF) or dropout)
                               Front, rear wheel rotation difference abnormal (substandard
  B25        –         ABS
                               tire, sensor rotor teeth number wrong)
                               ABS motor relay trouble (wiring shorted or open, stuck relay
  B35        –         ABS
                               (ON or OFF))
                               Front wheel rotation sensor signal abnormal (sensor or rotor
  B42        –         ABS
                               missing, too large clearance, rotor tooth worn or missing)
                               Front wheel rotation sensor wiring (wiring shorted or open,
  B43        –         ABS
                               connector bad connection)
                               Rear wheel rotation sensor signal abnormal (sensor or rotor
  B44        –         ABS
                               missing, too large clearance, rotor tooth worn or missing)
                               Rear wheel rotation sensor wiring (wiring shorted or open,
  B45        –         ABS
                               connector bad connection)
  B52        –         ABS     Power supply voltage abnormal (low-voltage)
  B53        –         ABS     Power supply voltage abnormal (over-voltage)
  B55        –         ABS     ECU trouble (ECU operation abnormal)
                               CAN communication (transmission)/CAN bus monitor
  B57        –         ABS
                               malfunction
  B58        –         ABS     CAN communication (reception) monitor malfunction
  B62        –         ABS     ABS hydraulic unit - FI ECU communication error
  B63        –         ABS     ABS hydraulic unit - IMU communication error
                               Output fluid pressure sensor (front brake) trouble (voltage
  B83        –         ABS
                               abnormal, wiring shorted or open)
                               Output fluid pressure sensor (front brake) trouble (offset
  B84        –         ABS
                               abnormal)
  B89        –         ABS     Fluid pressure sensor supply voltage abnormal
  B94        –         ABS     IMU malfunction
