SELF-DIAGNOSIS SYSTEM 17-49
Front Wheel Rotation Sensor Signal (Service Code 27) (DTC P0500)

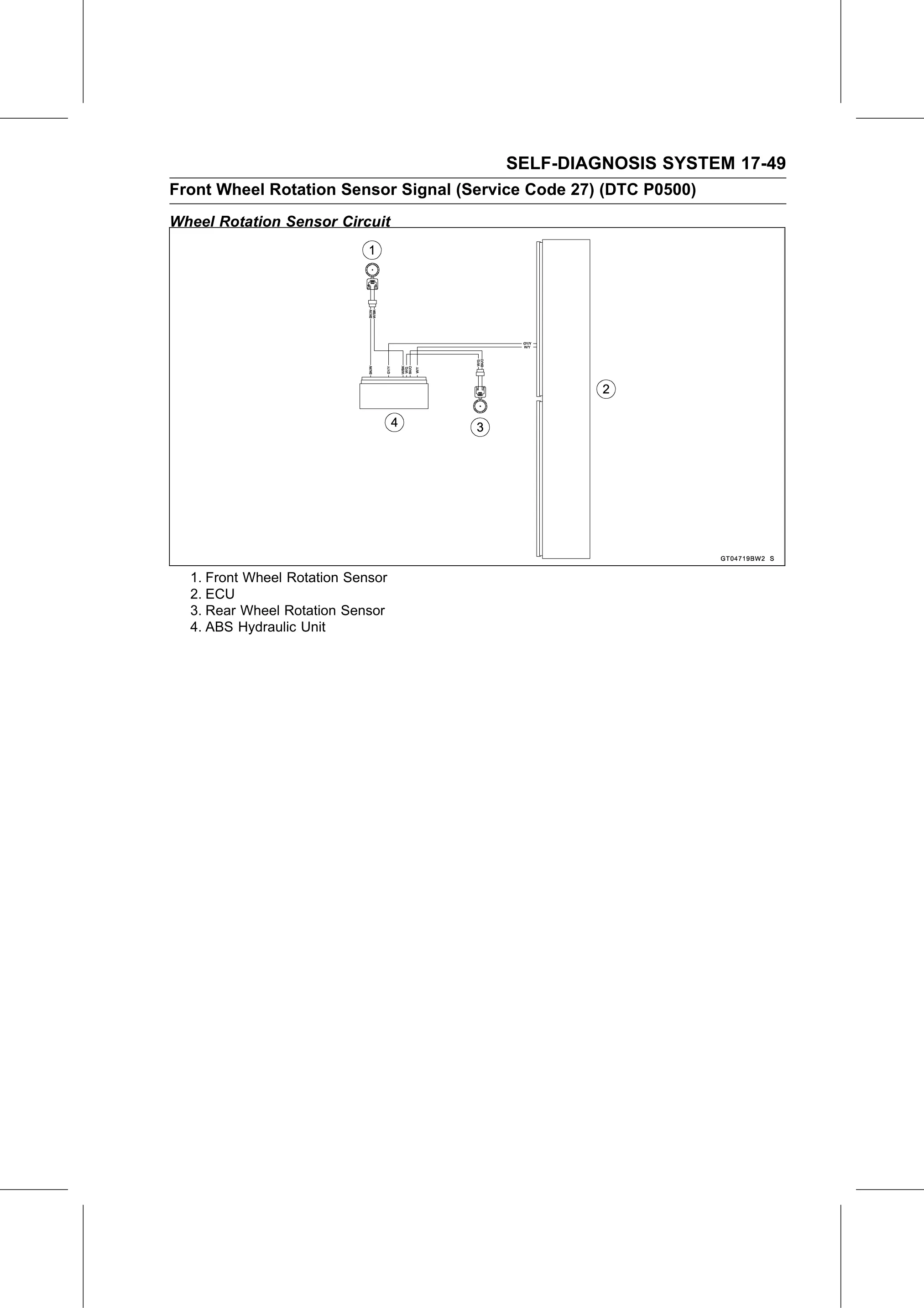

Wheel Rotation Sensor Circuit

  1. Front Wheel Rotation Sensor
  2. ECU
  3. Rear Wheel Rotation Sensor
  4. ABS Hydraulic Unit
