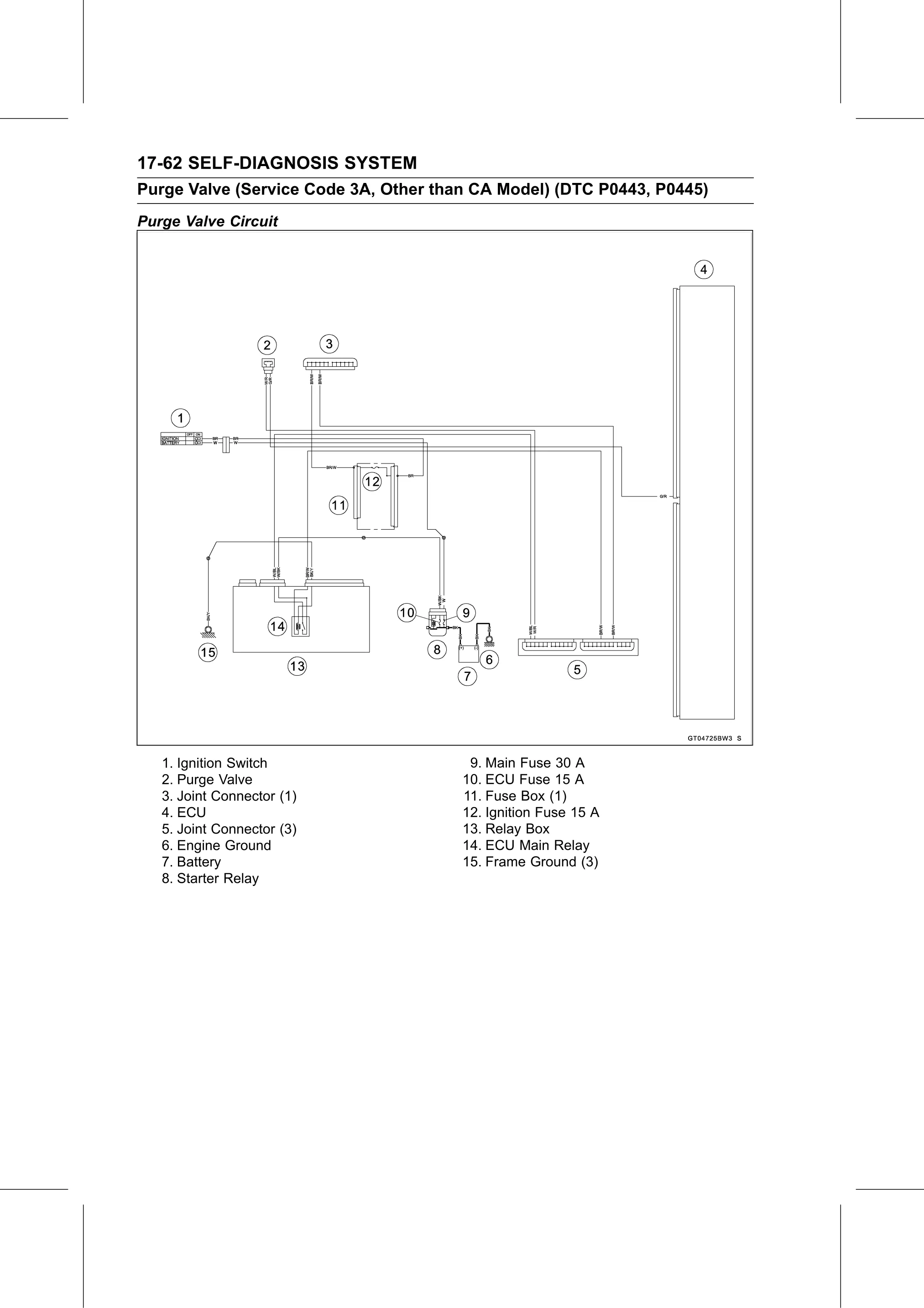

17-62 SELF-DIAGNOSIS SYSTEM
Purge Valve (Service Code 3A, Other than CA Model) (DTC P0443, P0445)
Purge Valve Circuit

   1. Ignition Switch                   9. Main Fuse 30 A
   2. Purge Valve                      10. ECU Fuse 15 A
   3. Joint Connector (1)              11. Fuse Box (1)
   4. ECU                              12. Ignition Fuse 15 A
   5. Joint Connector (3)              13. Relay Box
   6. Engine Ground                    14. ECU Main Relay
   7. Battery                          15. Frame Ground (3)
   8. Starter Relay
