17-70 SELF-DIAGNOSIS SYSTEM
Fuel Pump Relay (Service Code 46) (DTC P0627)

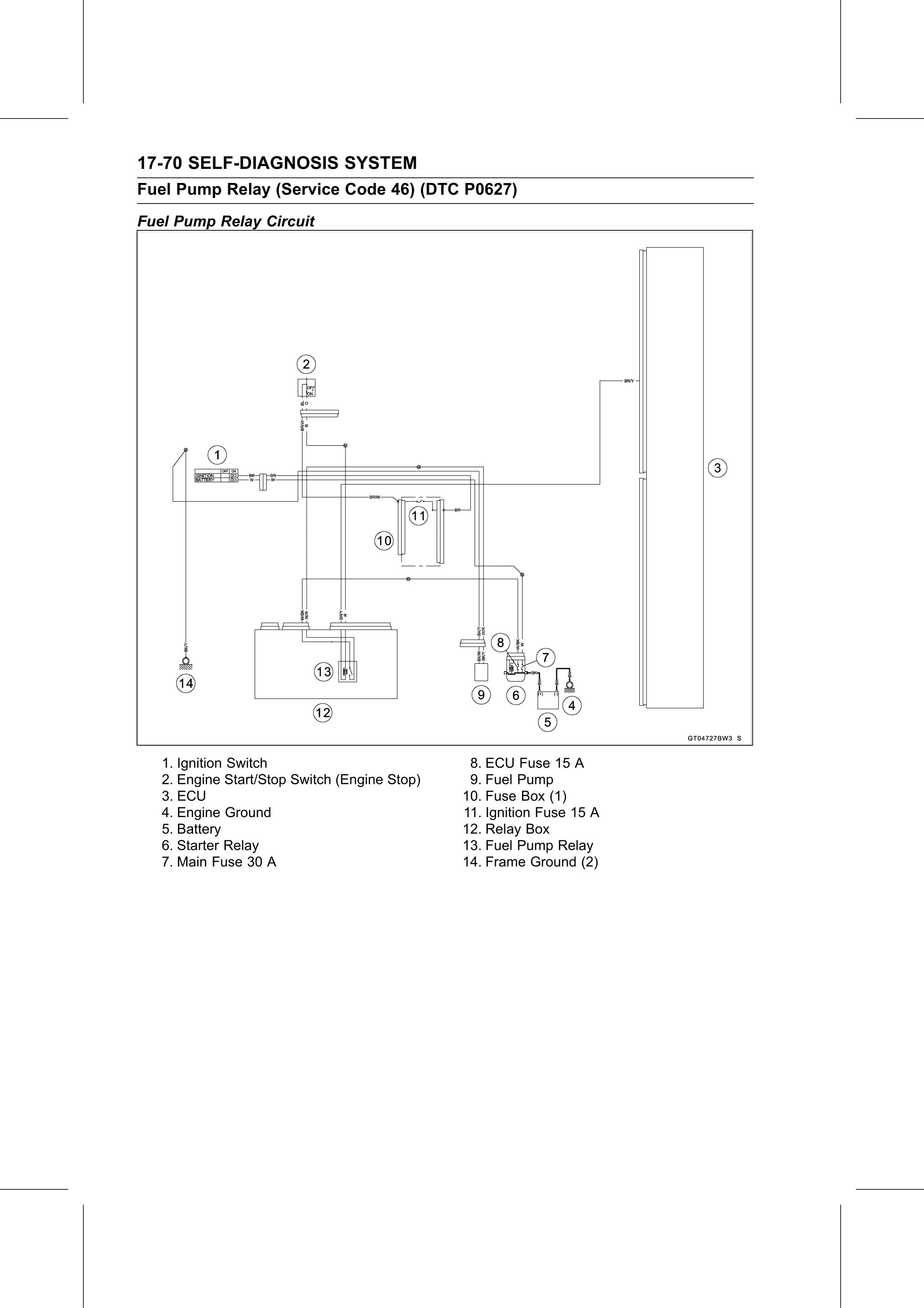

Fuel Pump Relay Circuit

   1. Ignition Switch                           8. ECU Fuse 15 A
   2. Engine Start/Stop Switch (Engine Stop)    9. Fuel Pump
   3. ECU                                      10. Fuse Box (1)
   4. Engine Ground                            11. Ignition Fuse 15 A
   5. Battery                                  12. Relay Box
   6. Starter Relay                            13. Fuel Pump Relay
   7. Main Fuse 30 A                           14. Frame Ground (2)
