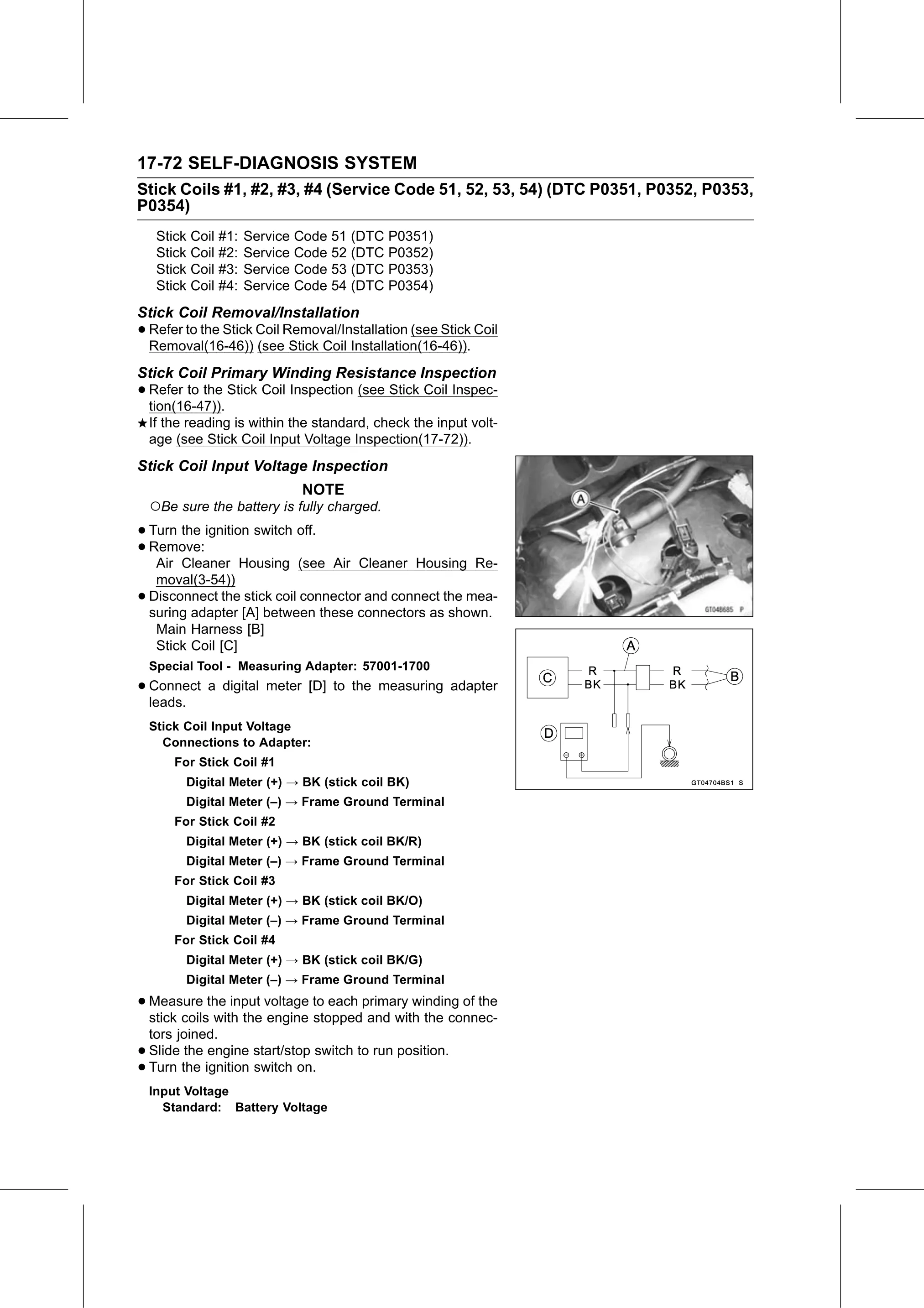

17-72 SELF-DIAGNOSIS SYSTEM
Stick Coils #1, #2, #3, #4 (Service Code 51, 52, 53, 54) (DTC P0351, P0352, P0353,
P0354)
Stick Coil #1: Service Code 51 (DTC P0351)
Stick Coil #2: Service Code 52 (DTC P0352)
Stick Coil #3: Service Code 53 (DTC P0353)
Stick Coil #4: Service Code 54 (DTC P0354)
Stick Coil Removal/Installation
• Refer to the Stick Coil Removal/Installation (see Stick Coil
Removal(16-46)) (see Stick Coil Installation(16-46)).
Stick Coil Primary Winding Resistance Inspection
• Refer to the Stick Coil Inspection (see Stick Coil Inspec-
tion(16-47)).
If the reading is within the standard, check the input volt-
age (see Stick Coil Input Voltage Inspection(17-72)).
Stick Coil Input Voltage Inspection
NOTE
○Be sure the battery is fully charged.
• Turn the ignition switch off.
• Air Cleaner Housing (see Air Cleaner Housing Re-
Remove:
moval(3-54))
• Disconnect the stick coil connector and connect the mea-
suring adapter [A] between these connectors as shown.
Main Harness [B]
Stick Coil [C]
Special Tool - Measuring Adapter: 57001-1700
• Connect
leads.
a digital meter [D] to the measuring adapter
Stick Coil Input Voltage
Connections to Adapter:
For Stick Coil #1
Digital Meter (+) → BK (stick coil BK)
Digital Meter (–) → Frame Ground Terminal
For Stick Coil #2
Digital Meter (+) → BK (stick coil BK/R)
Digital Meter (–) → Frame Ground Terminal
For Stick Coil #3
Digital Meter (+) → BK (stick coil BK/O)
Digital Meter (–) → Frame Ground Terminal
For Stick Coil #4
Digital Meter (+) → BK (stick coil BK/G)
Digital Meter (–) → Frame Ground Terminal
• Measure the input voltage to each primary winding of the
stick coils with the engine stopped and with the connec-
tors joined.
• Slide the engine start/stop switch to run position.
• Turn the ignition switch on.
Input Voltage
Standard: Battery Voltage
