SELF-DIAGNOSIS SYSTEM 17-75
Radiator Fan Relay (Service Code 56) (DTC P0480)

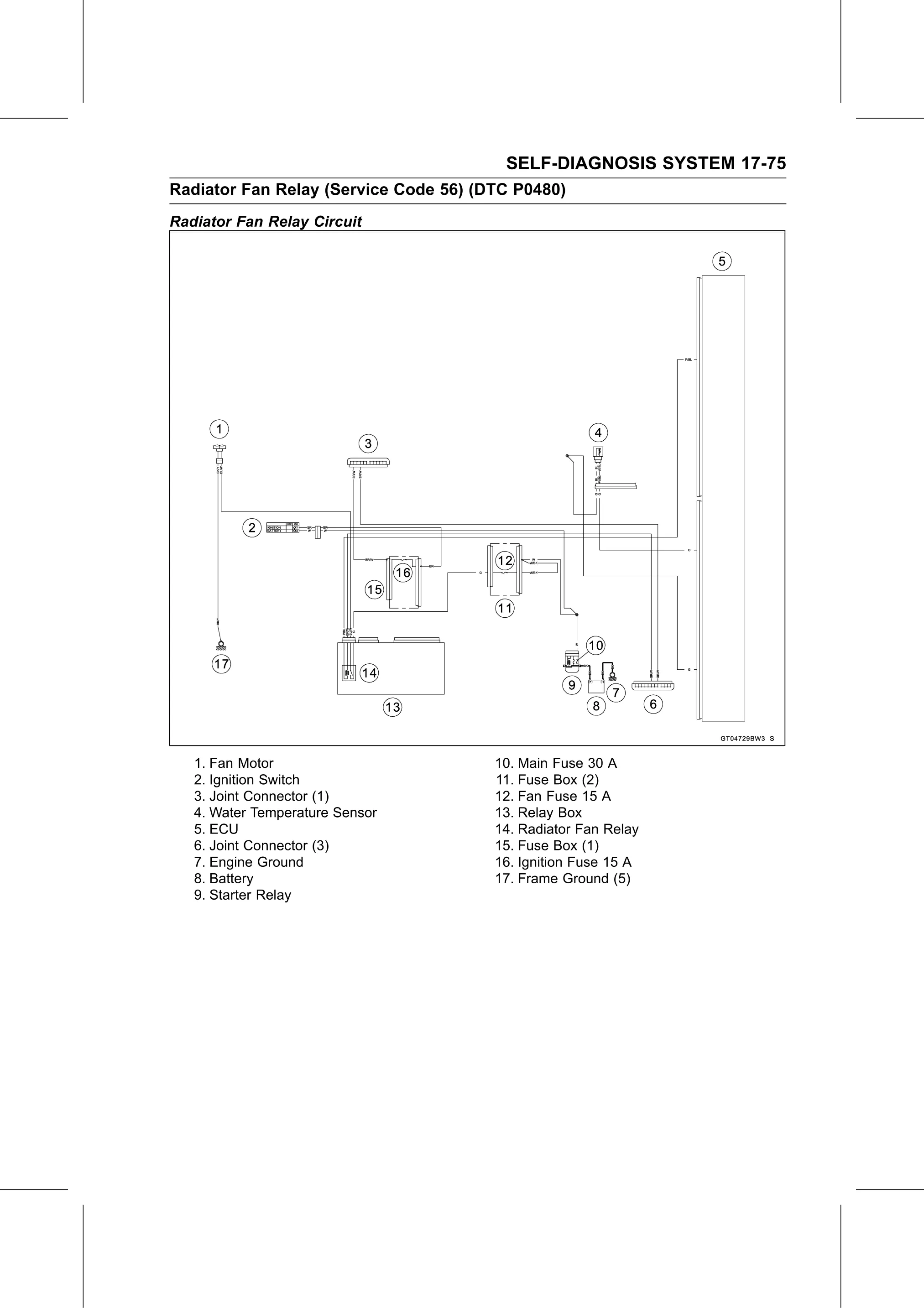

Radiator Fan Relay Circuit

   1. Fan Motor                        10. Main Fuse 30 A
   2. Ignition Switch                  11. Fuse Box (2)
   3. Joint Connector (1)              12. Fan Fuse 15 A
   4. Water Temperature Sensor         13. Relay Box
   5. ECU                              14. Radiator Fan Relay
   6. Joint Connector (3)              15. Fuse Box (1)
   7. Engine Ground                    16. Ignition Fuse 15 A
   8. Battery                          17. Frame Ground (5)
   9. Starter Relay
