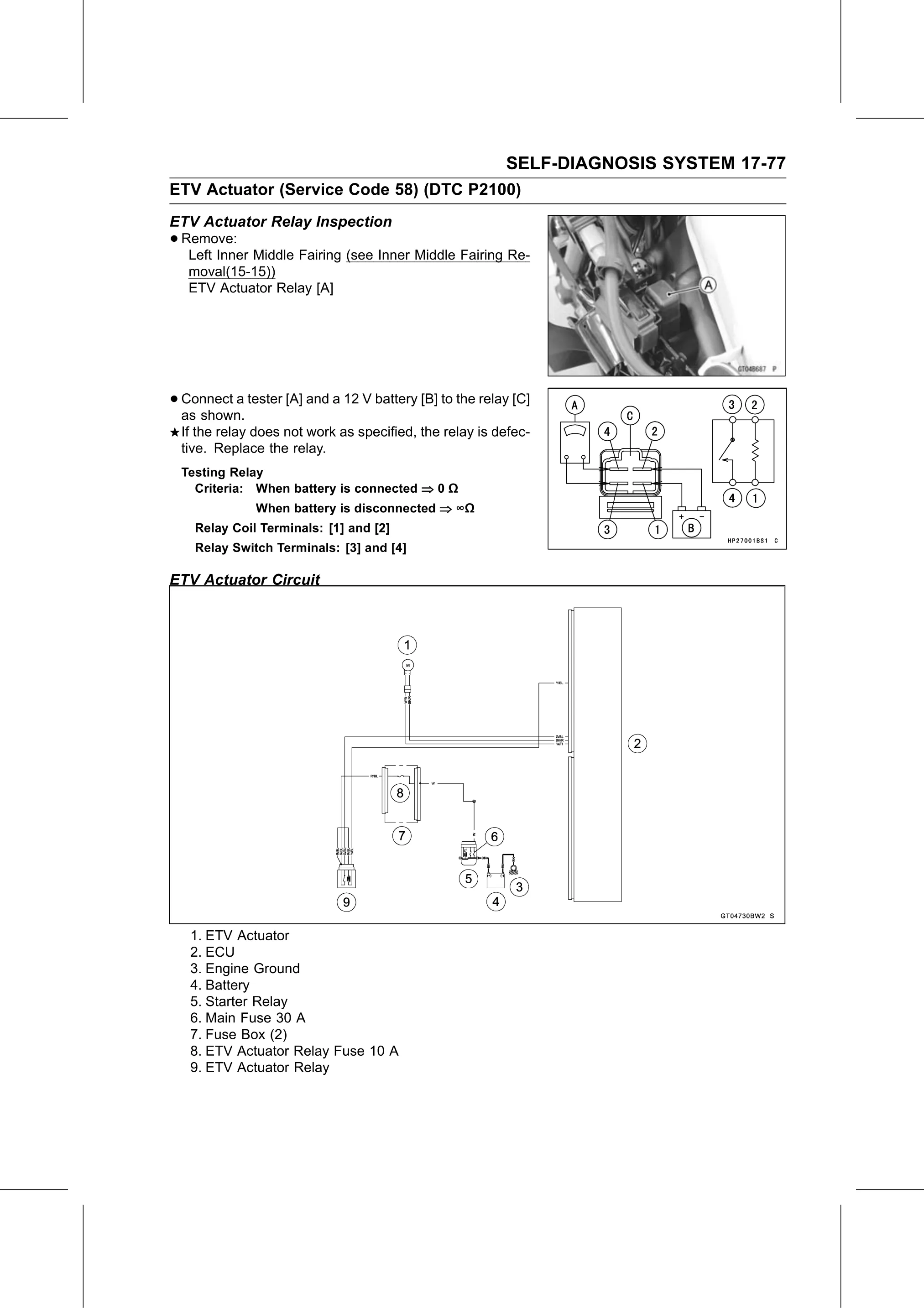

SELF-DIAGNOSIS SYSTEM 17-77
ETV Actuator (Service Code 58) (DTC P2100)
ETV Actuator Relay Inspection
• Remove:
   Left Inner Middle Fairing (see Inner Middle Fairing Re-
   moval(15-15))
   ETV Actuator Relay [A]

• Connect a tester [A] and a 12 V battery [B] to the relay [C]
  as shown.
  If the relay does not work as specified, the relay is defec-
  tive. Replace the relay.
  Testing Relay
    Criteria: When battery is connected  0 Ω
              When battery is disconnected  ∞Ω
    Relay Coil Terminals: [1] and [2]
    Relay Switch Terminals: [3] and [4]

ETV Actuator Circuit

   1. ETV Actuator
   2. ECU
   3. Engine Ground
   4. Battery
   5. Starter Relay
   6. Main Fuse 30 A
   7. Fuse Box (2)
   8. ETV Actuator Relay Fuse 10 A
   9. ETV Actuator Relay
