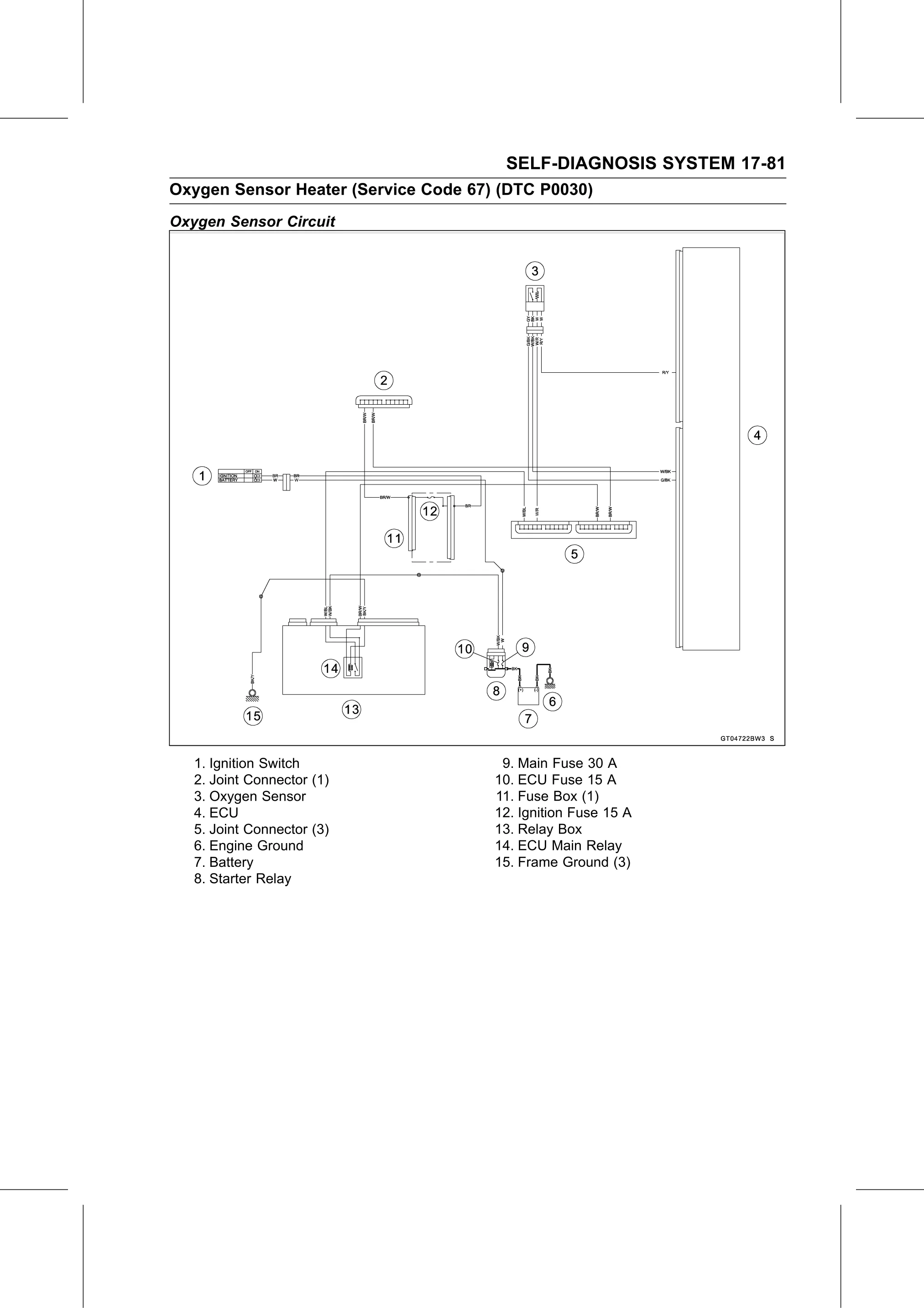

SELF-DIAGNOSIS SYSTEM 17-81
Oxygen Sensor Heater (Service Code 67) (DTC P0030)
Oxygen Sensor Circuit

   1. Ignition Switch                  9. Main Fuse 30 A
   2. Joint Connector (1)             10. ECU Fuse 15 A
   3. Oxygen Sensor                   11. Fuse Box (1)
   4. ECU                             12. Ignition Fuse 15 A
   5. Joint Connector (3)             13. Relay Box
   6. Engine Ground                   14. ECU Main Relay
   7. Battery                         15. Frame Ground (3)
   8. Starter Relay
