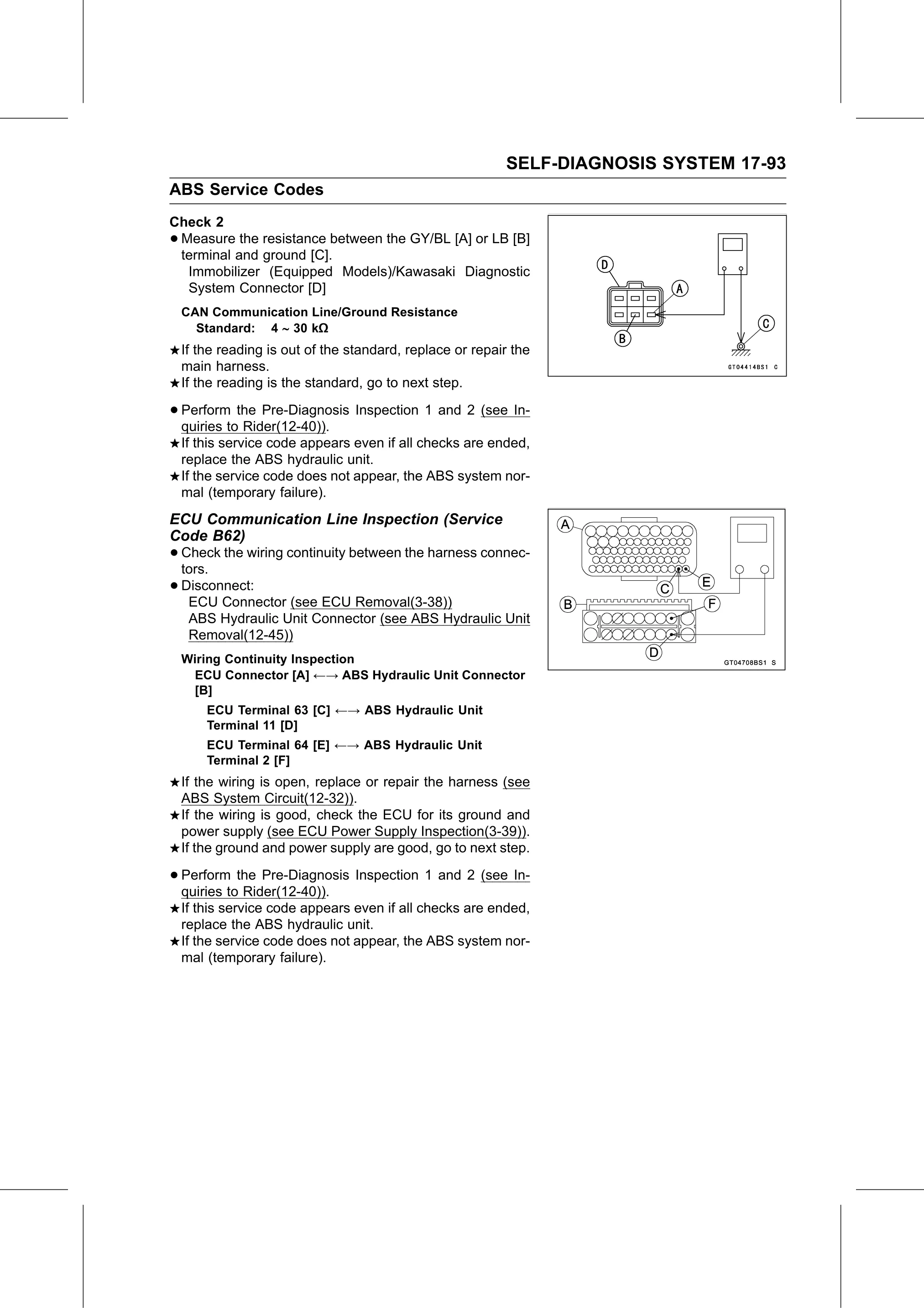

SELF-DIAGNOSIS SYSTEM 17-93
ABS Service Codes
Check 2
•Measure the resistance between the GY/BL [A] or LB [B]
 terminal and ground [C].
  Immobilizer (Equipped Models)/Kawasaki Diagnostic
  System Connector [D]
    CAN Communication Line/Ground Resistance
      Standard: 4  30 kΩ
    If the reading is out of the standard, replace or repair the
    main harness.
    If the reading is the standard, go to next step.

• Perform   the Pre-Diagnosis Inspection 1 and 2 (see In-
  quiries to Rider(12-40)).
    If this service code appears even if all checks are ended,
    replace the ABS hydraulic unit.
    If the service code does not appear, the ABS system nor-
    mal (temporary failure).
ECU Communication Line Inspection (Service
Code B62)
• Check
  tors.
        the wiring continuity between the harness connec-

• Disconnect:
   ECU Connector (see ECU Removal(3-38))
     ABS Hydraulic Unit Connector (see ABS Hydraulic Unit
     Removal(12-45))
    Wiring Continuity Inspection
     ECU Connector [A] ←→ ABS Hydraulic Unit Connector
     [B]
        ECU Terminal 63 [C] ←→ ABS Hydraulic Unit
        Terminal 11 [D]
        ECU Terminal 64 [E] ←→ ABS Hydraulic Unit
        Terminal 2 [F]
    If the wiring is open, replace or repair the harness (see
    ABS System Circuit(12-32)).
    If the wiring is good, check the ECU for its ground and
    power supply (see ECU Power Supply Inspection(3-39)).
    If the ground and power supply are good, go to next step.

• Perform   the Pre-Diagnosis Inspection 1 and 2 (see In-
  quiries to Rider(12-40)).
    If this service code appears even if all checks are ended,
    replace the ABS hydraulic unit.
    If the service code does not appear, the ABS system nor-
    mal (temporary failure).
