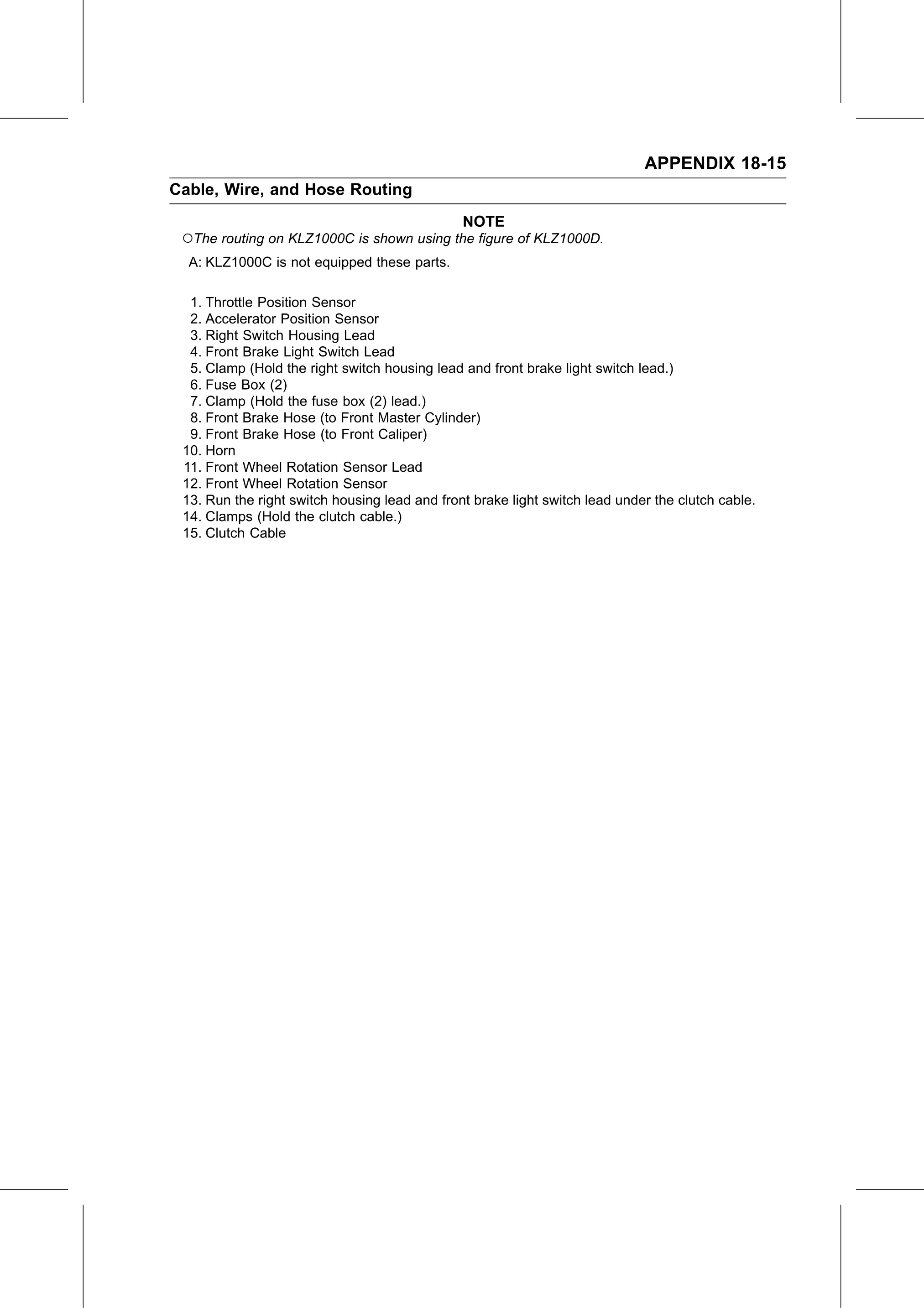

APPENDIX 18-15
Cable, Wire, and Hose Routing
                                               NOTE
 ○The routing on KLZ1000C is shown using the figure of KLZ1000D.
  A: KLZ1000C is not equipped these parts.

  1. Throttle Position Sensor
  2. Accelerator Position Sensor
  3. Right Switch Housing Lead
  4. Front Brake Light Switch Lead
  5. Clamp (Hold the right switch housing lead and front brake light switch lead.)
  6. Fuse Box (2)
  7. Clamp (Hold the fuse box (2) lead.)
  8. Front Brake Hose (to Front Master Cylinder)
  9. Front Brake Hose (to Front Caliper)
 10. Horn
 11. Front Wheel Rotation Sensor Lead
 12. Front Wheel Rotation Sensor
 13. Run the right switch housing lead and front brake light switch lead under the clutch cable.
 14. Clamps (Hold the clutch cable.)
 15. Clutch Cable
