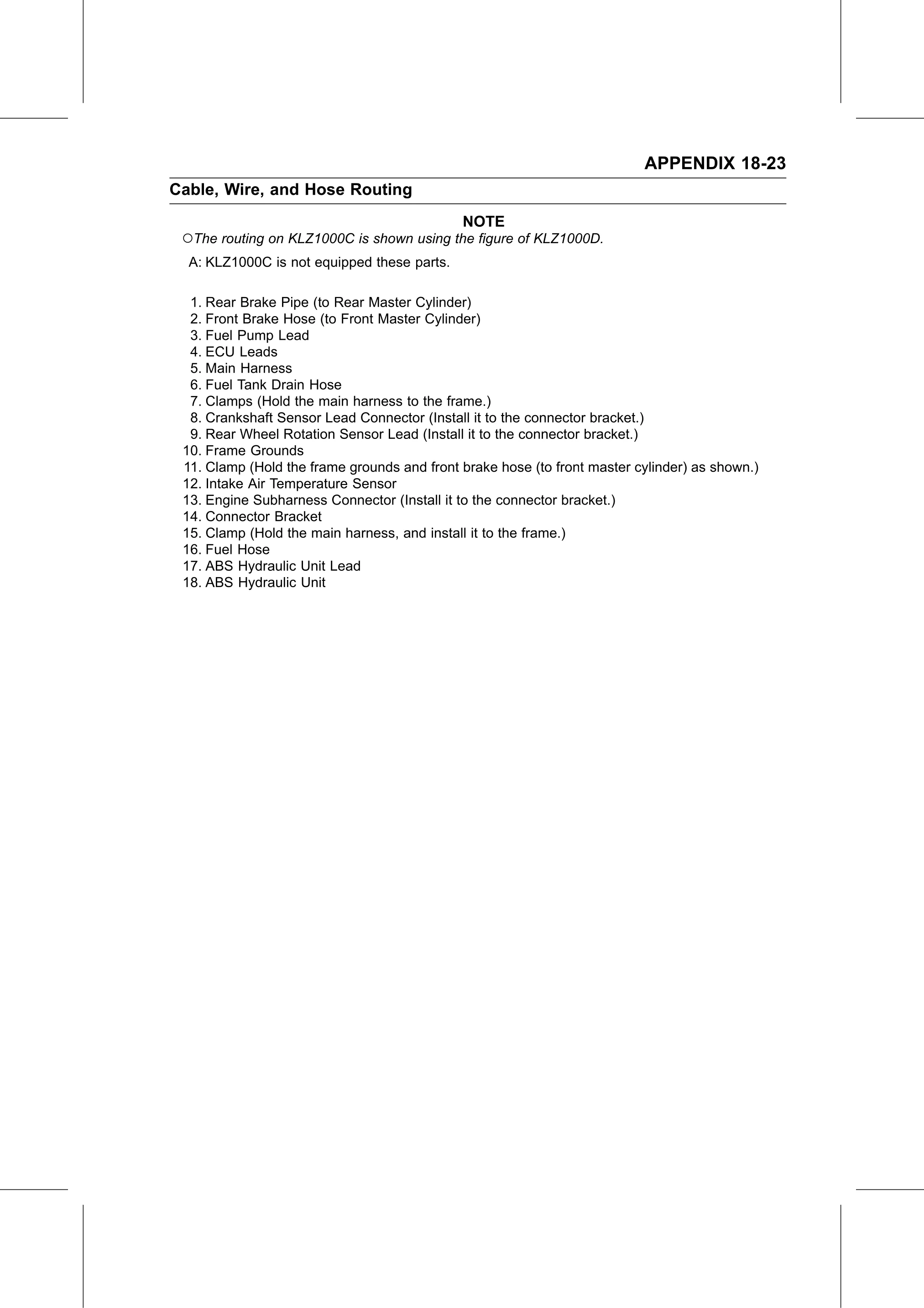

APPENDIX 18-23
Cable, Wire, and Hose Routing
                                             NOTE
 ○The routing on KLZ1000C is shown using the figure of KLZ1000D.
  A: KLZ1000C is not equipped these parts.

  1. Rear Brake Pipe (to Rear Master Cylinder)
  2. Front Brake Hose (to Front Master Cylinder)
  3. Fuel Pump Lead
  4. ECU Leads
  5. Main Harness
  6. Fuel Tank Drain Hose
  7. Clamps (Hold the main harness to the frame.)
  8. Crankshaft Sensor Lead Connector (Install it to the connector bracket.)
  9. Rear Wheel Rotation Sensor Lead (Install it to the connector bracket.)
 10. Frame Grounds
 11. Clamp (Hold the frame grounds and front brake hose (to front master cylinder) as shown.)
 12. Intake Air Temperature Sensor
 13. Engine Subharness Connector (Install it to the connector bracket.)
 14. Connector Bracket
 15. Clamp (Hold the main harness, and install it to the frame.)
 16. Fuel Hose
 17. ABS Hydraulic Unit Lead
 18. ABS Hydraulic Unit
