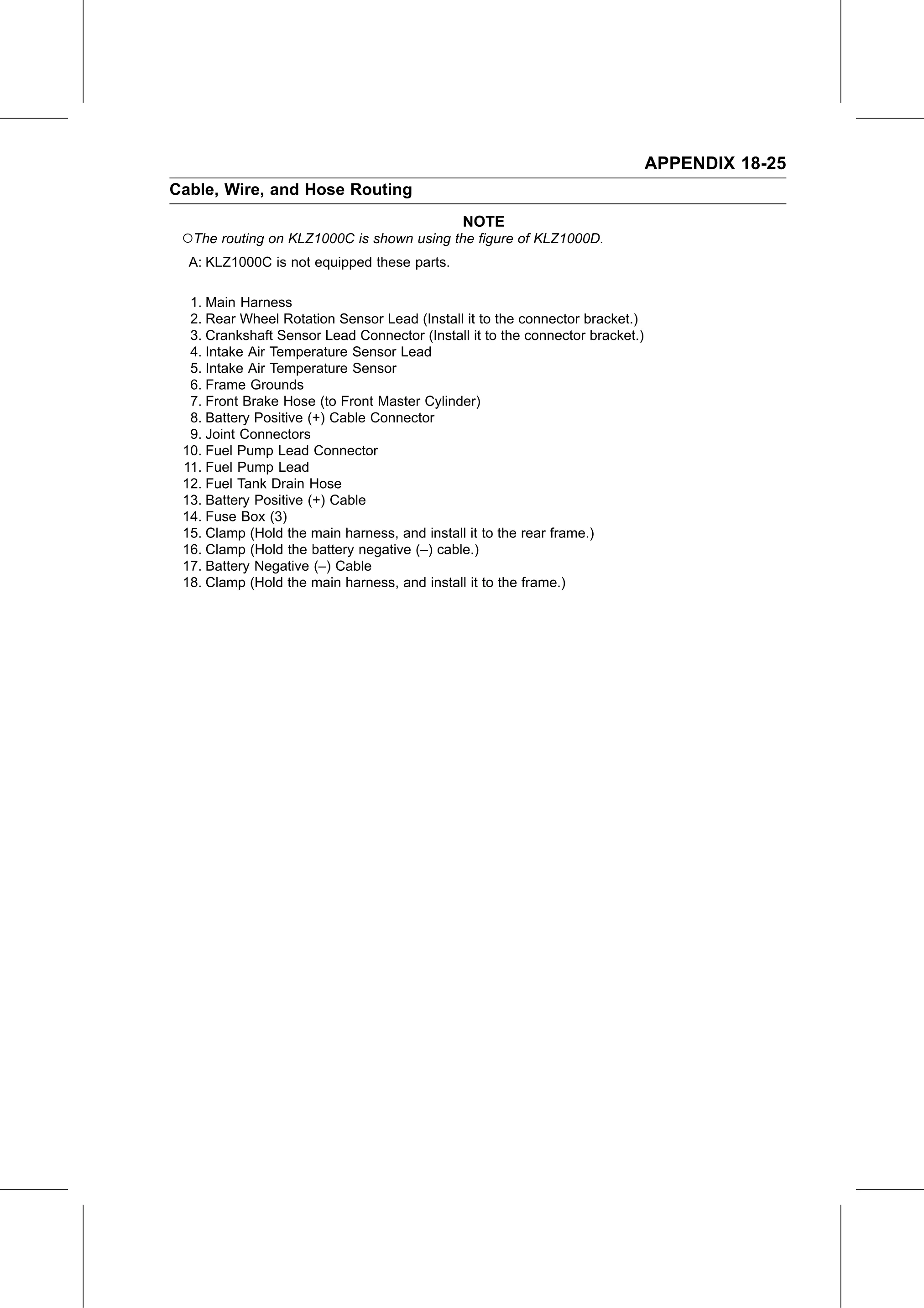

Service Manual (KLZ1000C) — page 723 of 762

Text on this page

APPENDIX 18-25
Cable, Wire, and Hose Routing
                                              NOTE
 ○The routing on KLZ1000C is shown using the figure of KLZ1000D.
  A: KLZ1000C is not equipped these parts.

  1. Main Harness
  2. Rear Wheel Rotation Sensor Lead (Install it to the connector bracket.)
  3. Crankshaft Sensor Lead Connector (Install it to the connector bracket.)
  4. Intake Air Temperature Sensor Lead
  5. Intake Air Temperature Sensor
  6. Frame Grounds
  7. Front Brake Hose (to Front Master Cylinder)
  8. Battery Positive (+) Cable Connector
  9. Joint Connectors
 10. Fuel Pump Lead Connector
 11. Fuel Pump Lead
 12. Fuel Tank Drain Hose
 13. Battery Positive (+) Cable
 14. Fuse Box (3)
 15. Clamp (Hold the main harness, and install it to the rear frame.)
 16. Clamp (Hold the battery negative (–) cable.)
 17. Battery Negative (–) Cable
 18. Clamp (Hold the main harness, and install it to the frame.)
