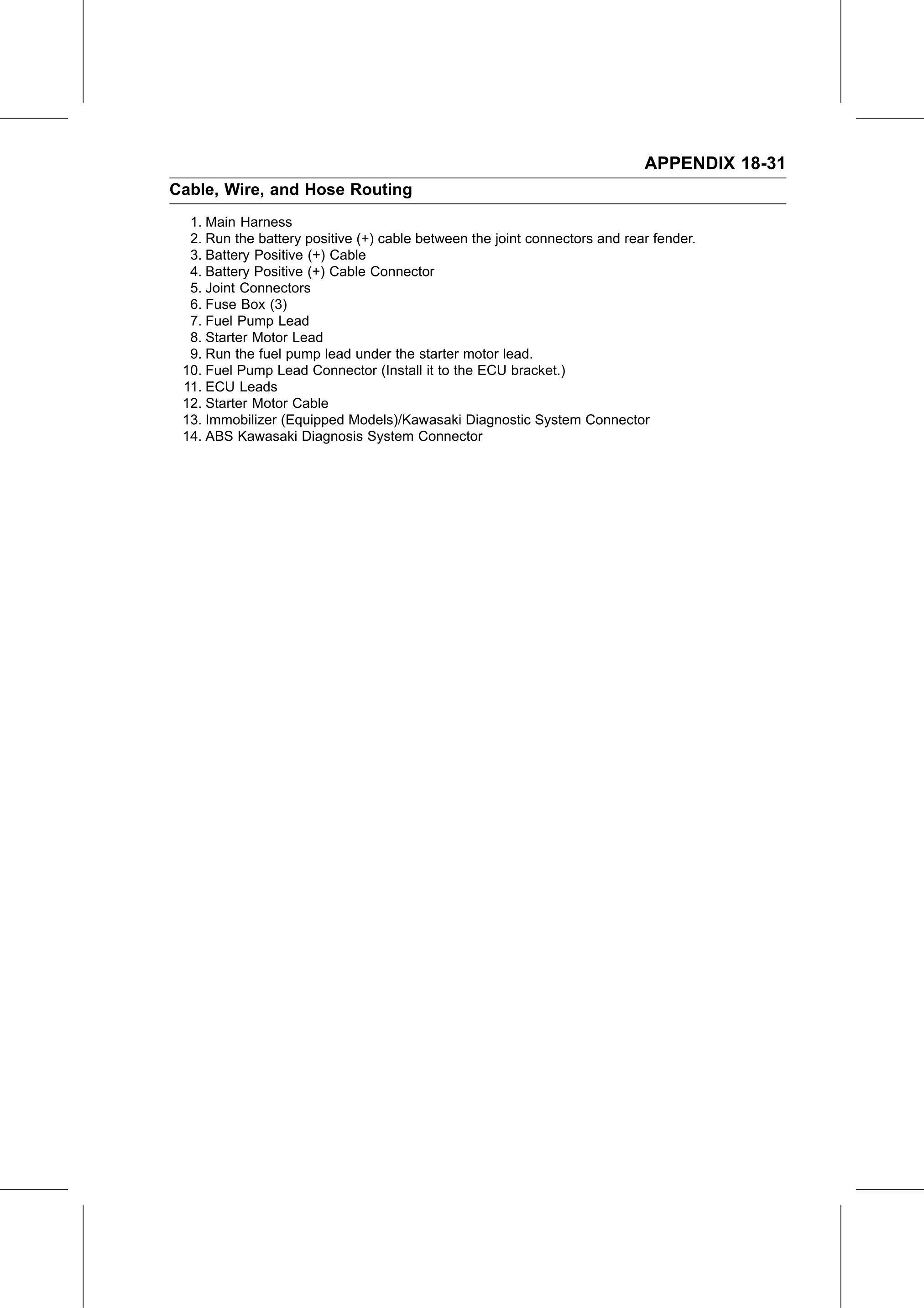

APPENDIX 18-31
Cable, Wire, and Hose Routing
  1. Main Harness
  2. Run the battery positive (+) cable between the joint connectors and rear fender.
  3. Battery Positive (+) Cable
  4. Battery Positive (+) Cable Connector
  5. Joint Connectors
  6. Fuse Box (3)
  7. Fuel Pump Lead
  8. Starter Motor Lead
  9. Run the fuel pump lead under the starter motor lead.
 10. Fuel Pump Lead Connector (Install it to the ECU bracket.)
 11. ECU Leads
 12. Starter Motor Cable
 13. Immobilizer (Equipped Models)/Kawasaki Diagnostic System Connector
 14. ABS Kawasaki Diagnosis System Connector
