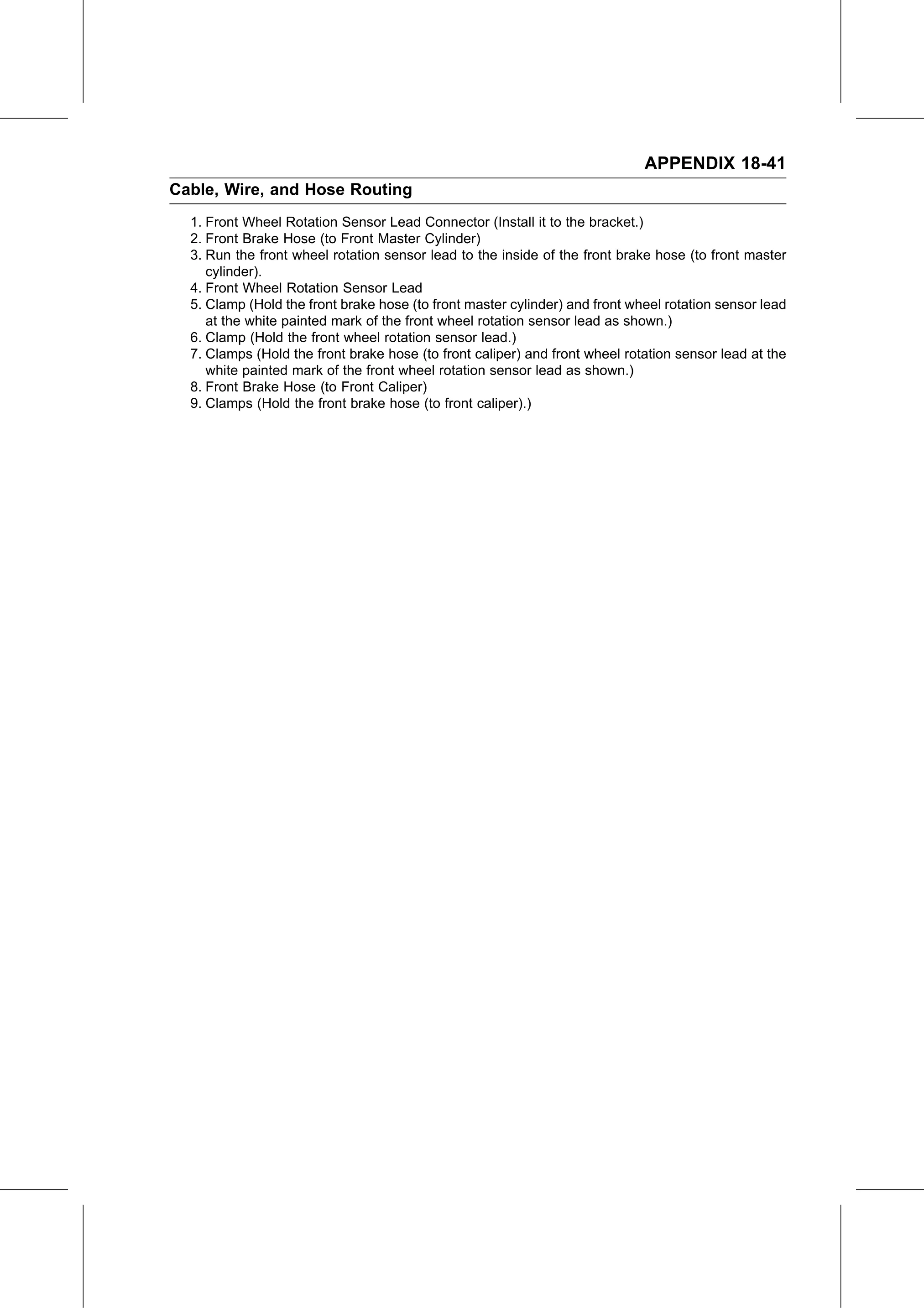

APPENDIX 18-41
Cable, Wire, and Hose Routing
  1. Front Wheel Rotation Sensor Lead Connector (Install it to the bracket.)
  2. Front Brake Hose (to Front Master Cylinder)
  3. Run the front wheel rotation sensor lead to the inside of the front brake hose (to front master
     cylinder).
  4. Front Wheel Rotation Sensor Lead
  5. Clamp (Hold the front brake hose (to front master cylinder) and front wheel rotation sensor lead
     at the white painted mark of the front wheel rotation sensor lead as shown.)
  6. Clamp (Hold the front wheel rotation sensor lead.)
  7. Clamps (Hold the front brake hose (to front caliper) and front wheel rotation sensor lead at the
     white painted mark of the front wheel rotation sensor lead as shown.)
  8. Front Brake Hose (to Front Caliper)
  9. Clamps (Hold the front brake hose (to front caliper).)
