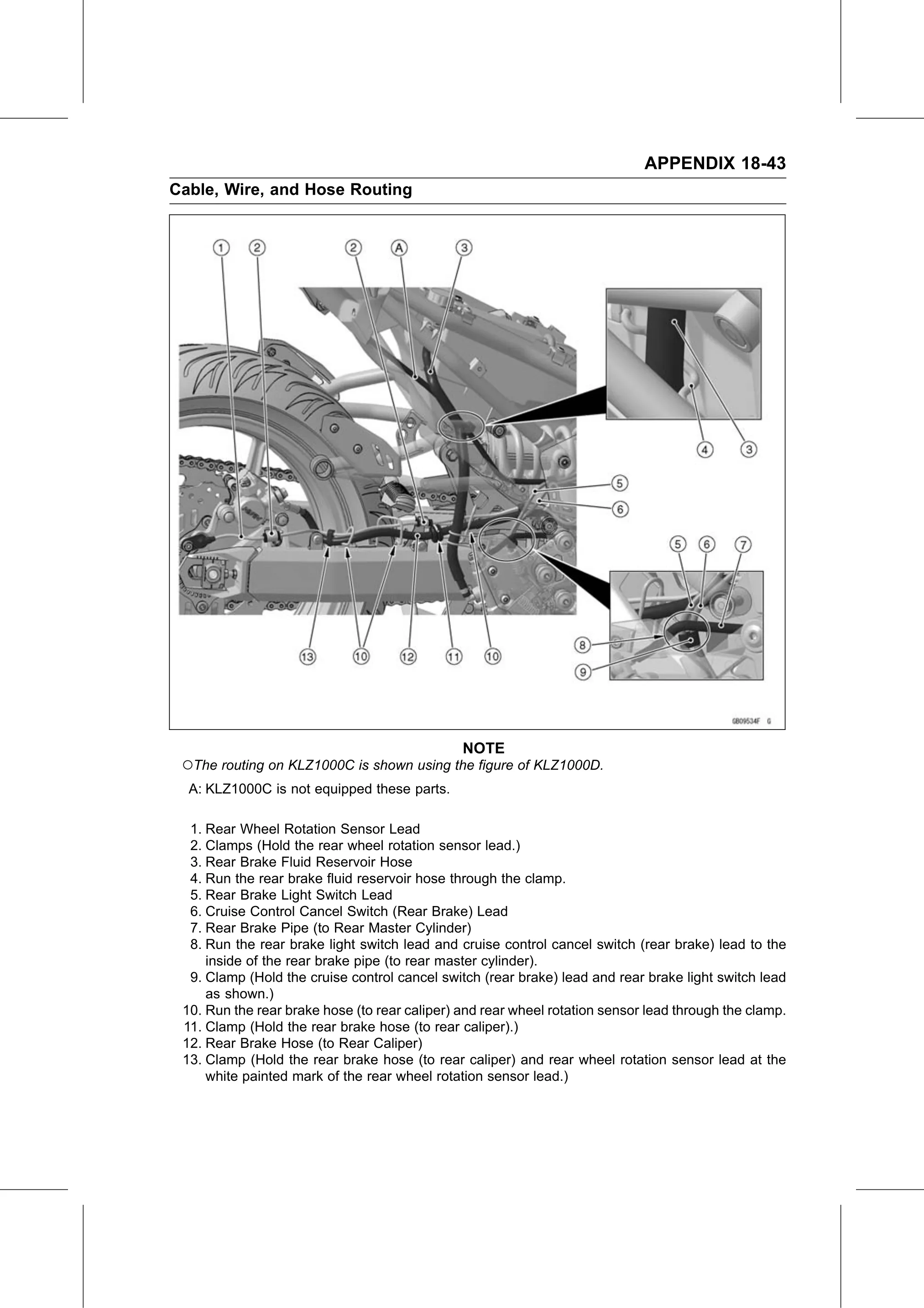

APPENDIX 18-43
Cable, Wire, and Hose Routing

                                               NOTE
 ○The routing on KLZ1000C is shown using the figure of KLZ1000D.
  A: KLZ1000C is not equipped these parts.

  1. Rear Wheel Rotation Sensor Lead
  2. Clamps (Hold the rear wheel rotation sensor lead.)
  3. Rear Brake Fluid Reservoir Hose
  4. Run the rear brake fluid reservoir hose through the clamp.
  5. Rear Brake Light Switch Lead
  6. Cruise Control Cancel Switch (Rear Brake) Lead
  7. Rear Brake Pipe (to Rear Master Cylinder)
  8. Run the rear brake light switch lead and cruise control cancel switch (rear brake) lead to the
     inside of the rear brake pipe (to rear master cylinder).
  9. Clamp (Hold the cruise control cancel switch (rear brake) lead and rear brake light switch lead
     as shown.)
 10. Run the rear brake hose (to rear caliper) and rear wheel rotation sensor lead through the clamp.
 11. Clamp (Hold the rear brake hose (to rear caliper).)
 12. Rear Brake Hose (to Rear Caliper)
 13. Clamp (Hold the rear brake hose (to rear caliper) and rear wheel rotation sensor lead at the
     white painted mark of the rear wheel rotation sensor lead.)
