APPENDIX 18-45

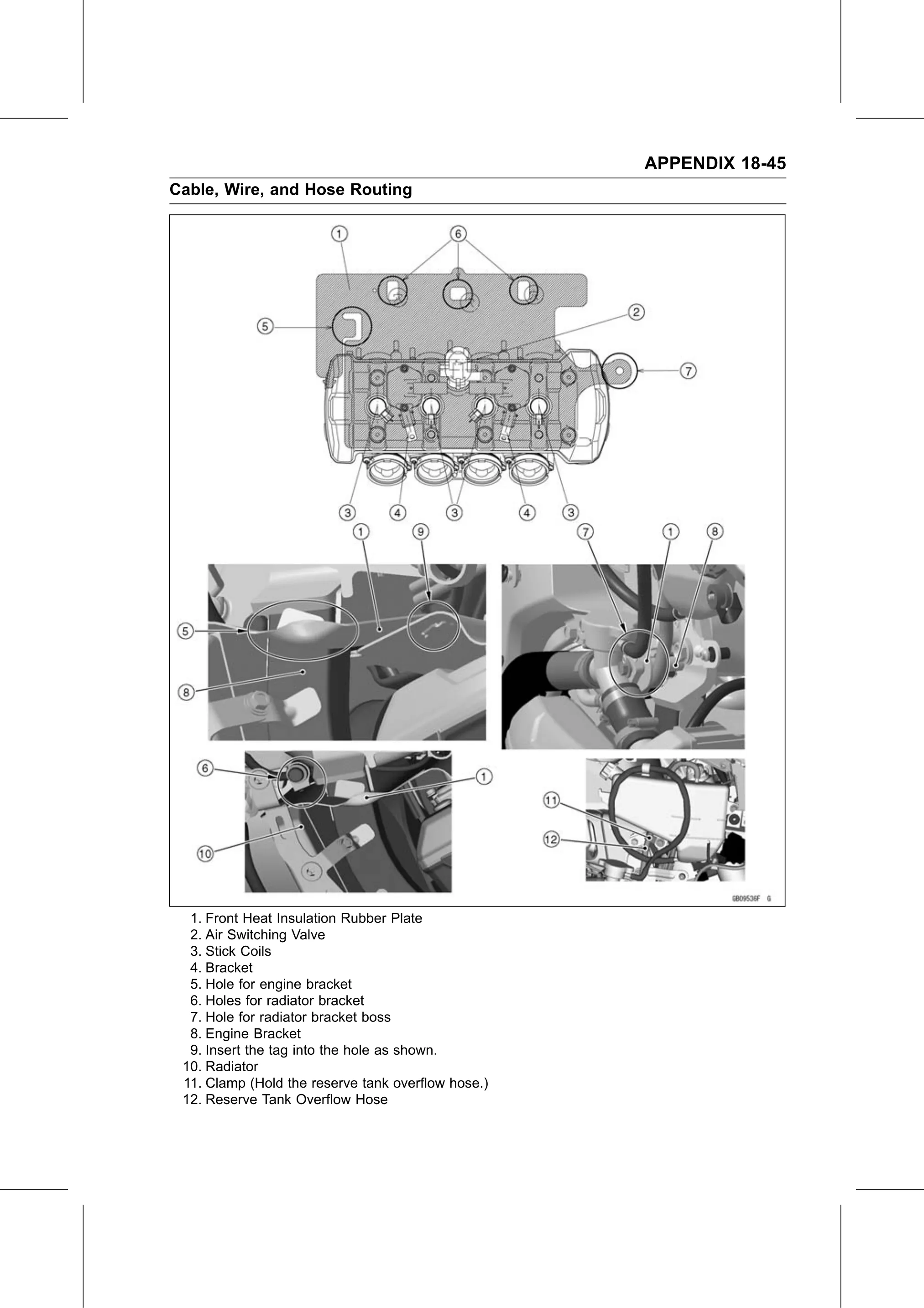

Cable, Wire, and Hose Routing

  1. Front Heat Insulation Rubber Plate
  2. Air Switching Valve
  3. Stick Coils
  4. Bracket
  5. Hole for engine bracket
  6. Holes for radiator bracket
  7. Hole for radiator bracket boss
  8. Engine Bracket
  9. Insert the tag into the hole as shown.
 10. Radiator
 11. Clamp (Hold the reserve tank overflow hose.)
 12. Reserve Tank Overflow Hose
