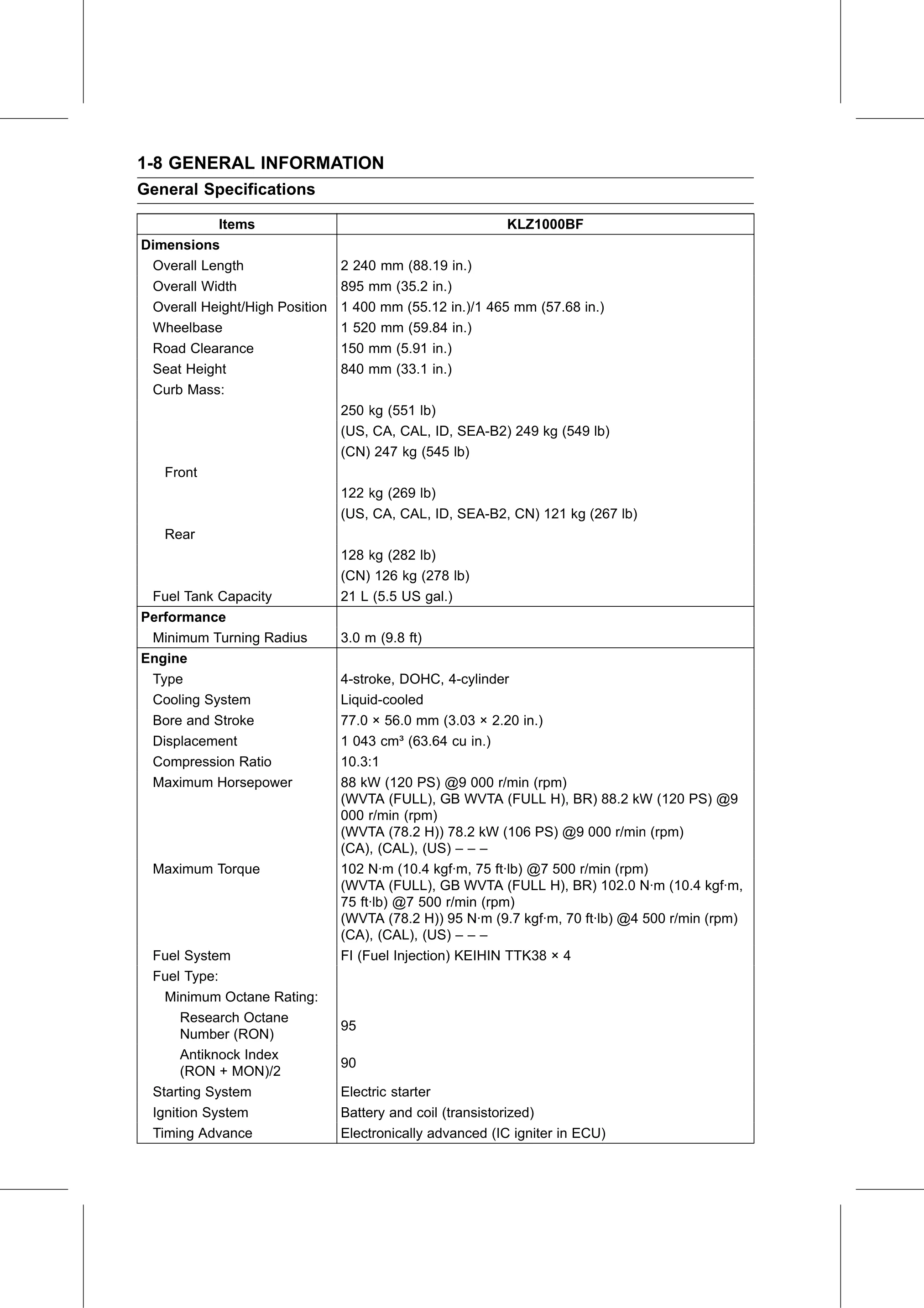

1-8 GENERAL INFORMATION
General Specifications

           Items                                           KLZ1000BF
Dimensions
 Overall Length                 2 240 mm (88.19 in.)
 Overall Width                  895 mm (35.2 in.)
 Overall Height/High Position   1 400 mm (55.12 in.)/1 465 mm (57.68 in.)
 Wheelbase                      1 520 mm (59.84 in.)
 Road Clearance                 150 mm (5.91 in.)
 Seat Height                    840 mm (33.1 in.)
 Curb Mass:
                                250 kg (551 lb)
                                (US, CA, CAL, ID, SEA-B2) 249 kg (549 lb)
                                (CN) 247 kg (545 lb)
   Front
                                122 kg (269 lb)
                                (US, CA, CAL, ID, SEA-B2, CN) 121 kg (267 lb)
   Rear
                                128 kg (282 lb)
                                (CN) 126 kg (278 lb)
 Fuel Tank Capacity             21 L (5.5 US gal.)
Performance
 Minimum Turning Radius         3.0 m (9.8 ft)
Engine
 Type                           4-stroke, DOHC, 4-cylinder
 Cooling System                 Liquid-cooled
 Bore and Stroke                77.0 × 56.0 mm (3.03 × 2.20 in.)
 Displacement                   1 043 cm³ (63.64 cu in.)
 Compression Ratio              10.3:1
 Maximum Horsepower             88 kW (120 PS) @9 000 r/min (rpm)
                                (WVTA (FULL), GB WVTA (FULL H), BR) 88.2 kW (120 PS) @9
                                000 r/min (rpm)
                                (WVTA (78.2 H)) 78.2 kW (106 PS) @9 000 r/min (rpm)
                                (CA), (CAL), (US) – – –
 Maximum Torque                 102 N·m (10.4 kgf·m, 75 ft·lb) @7 500 r/min (rpm)
                                (WVTA (FULL), GB WVTA (FULL H), BR) 102.0 N·m (10.4 kgf·m,
                                75 ft·lb) @7 500 r/min (rpm)
                                (WVTA (78.2 H)) 95 N·m (9.7 kgf·m, 70 ft·lb) @4 500 r/min (rpm)
                                (CA), (CAL), (US) – – –
 Fuel System                    FI (Fuel Injection) KEIHIN TTK38 × 4
 Fuel Type:
   Minimum Octane Rating:
      Research Octane
                                95
      Number (RON)
      Antiknock Index
                                90
      (RON + MON)/2
 Starting System                Electric starter
 Ignition System                Battery and coil (transistorized)
 Timing Advance                 Electronically advanced (IC igniter in ECU)
