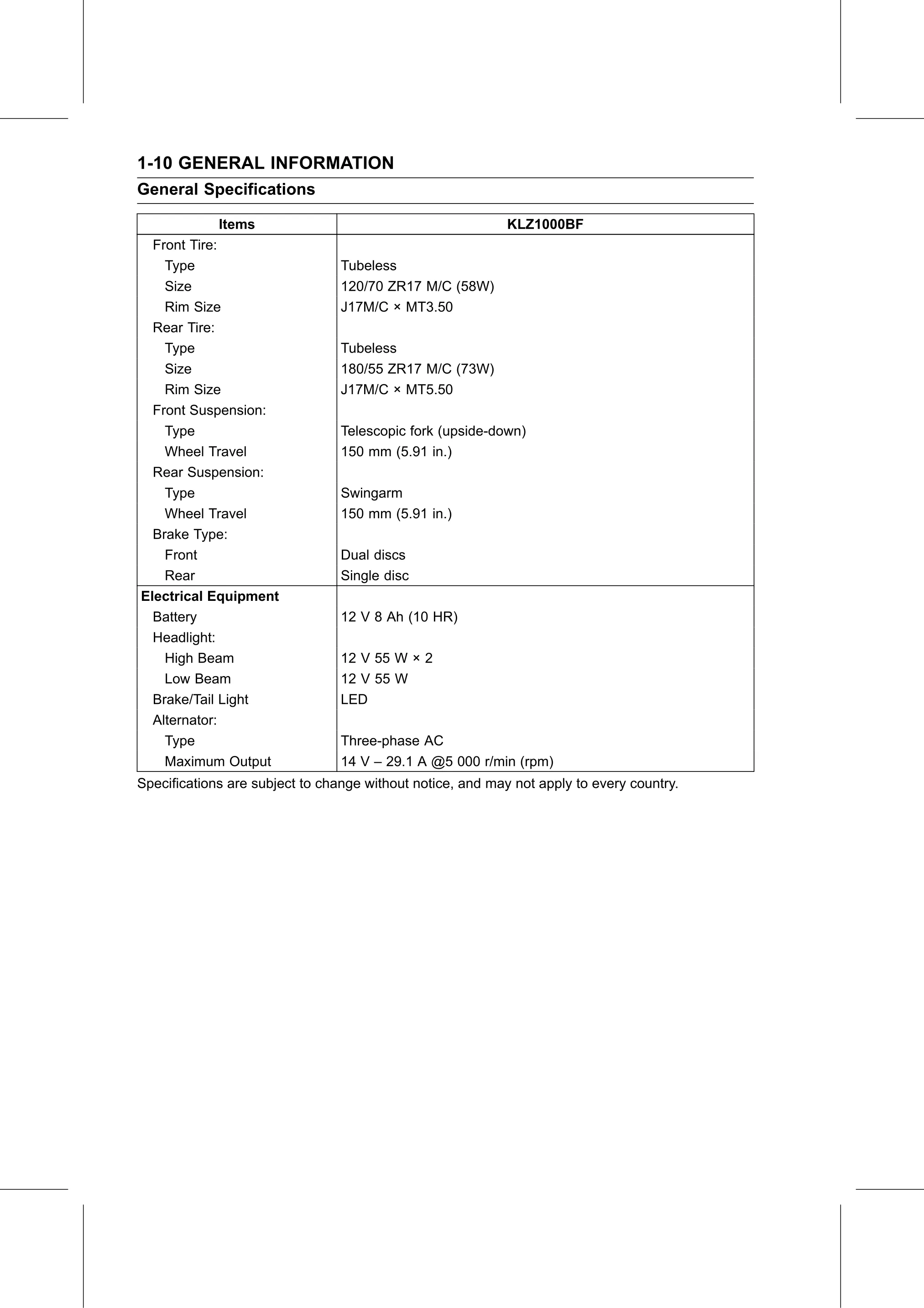

1-10 GENERAL INFORMATION
General Specifications

             Items                                          KLZ1000BF
  Front Tire:
    Type                         Tubeless
    Size                         120/70 ZR17 M/C (58W)
    Rim Size                     J17M/C × MT3.50
  Rear Tire:
    Type                         Tubeless
    Size                         180/55 ZR17 M/C (73W)
    Rim Size                     J17M/C × MT5.50
  Front Suspension:
    Type                         Telescopic fork (upside-down)
    Wheel Travel                 150 mm (5.91 in.)
  Rear Suspension:
    Type                         Swingarm
    Wheel Travel                 150 mm (5.91 in.)
  Brake Type:
    Front                        Dual discs
    Rear                         Single disc
Electrical Equipment
  Battery                        12 V 8 Ah (10 HR)
  Headlight:
    High Beam                    12 V 55 W × 2
    Low Beam                     12 V 55 W
  Brake/Tail Light               LED
  Alternator:
    Type                         Three-phase AC
    Maximum Output               14 V – 29.1 A @5 000 r/min (rpm)
Specifications are subject to change without notice, and may not apply to every country.
