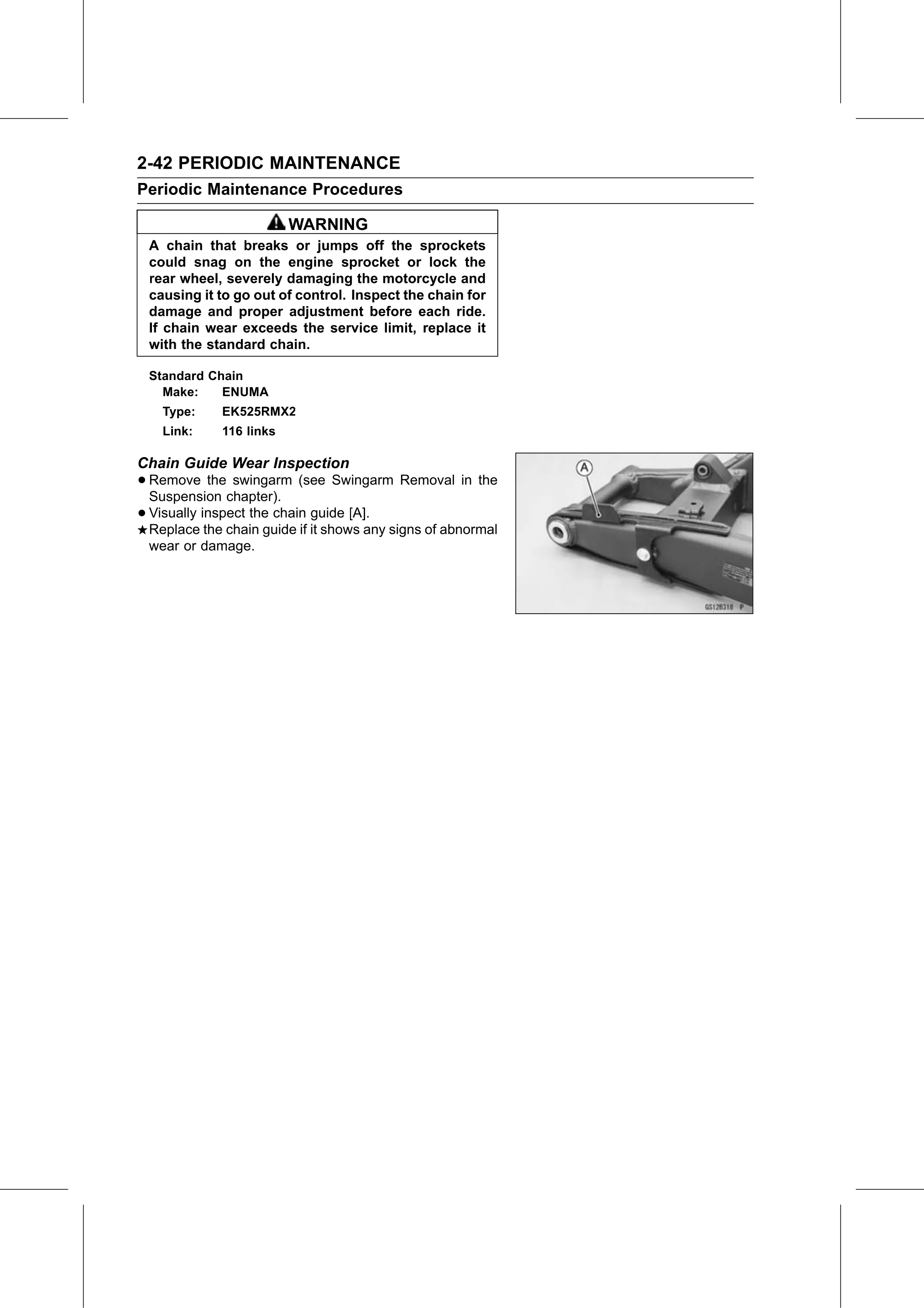

2-42 PERIODIC MAINTENANCE
Periodic Maintenance Procedures

                         WARNING
 A chain that breaks or jumps off the sprockets
 could snag on the engine sprocket or lock the
 rear wheel, severely damaging the motorcycle and
 causing it to go out of control. Inspect the chain for
 damage and proper adjustment before each ride.
 If chain wear exceeds the service limit, replace it
 with the standard chain.

 Standard Chain
   Make:    ENUMA
    Type:    EK525RMX2
    Link:    116 links

Chain Guide Wear Inspection
• Remove    the swingarm (see Swingarm Removal in the
  Suspension chapter).
• Visually inspect the chain guide [A].
  Replace the chain guide if it shows any signs of abnormal
 wear or damage.
