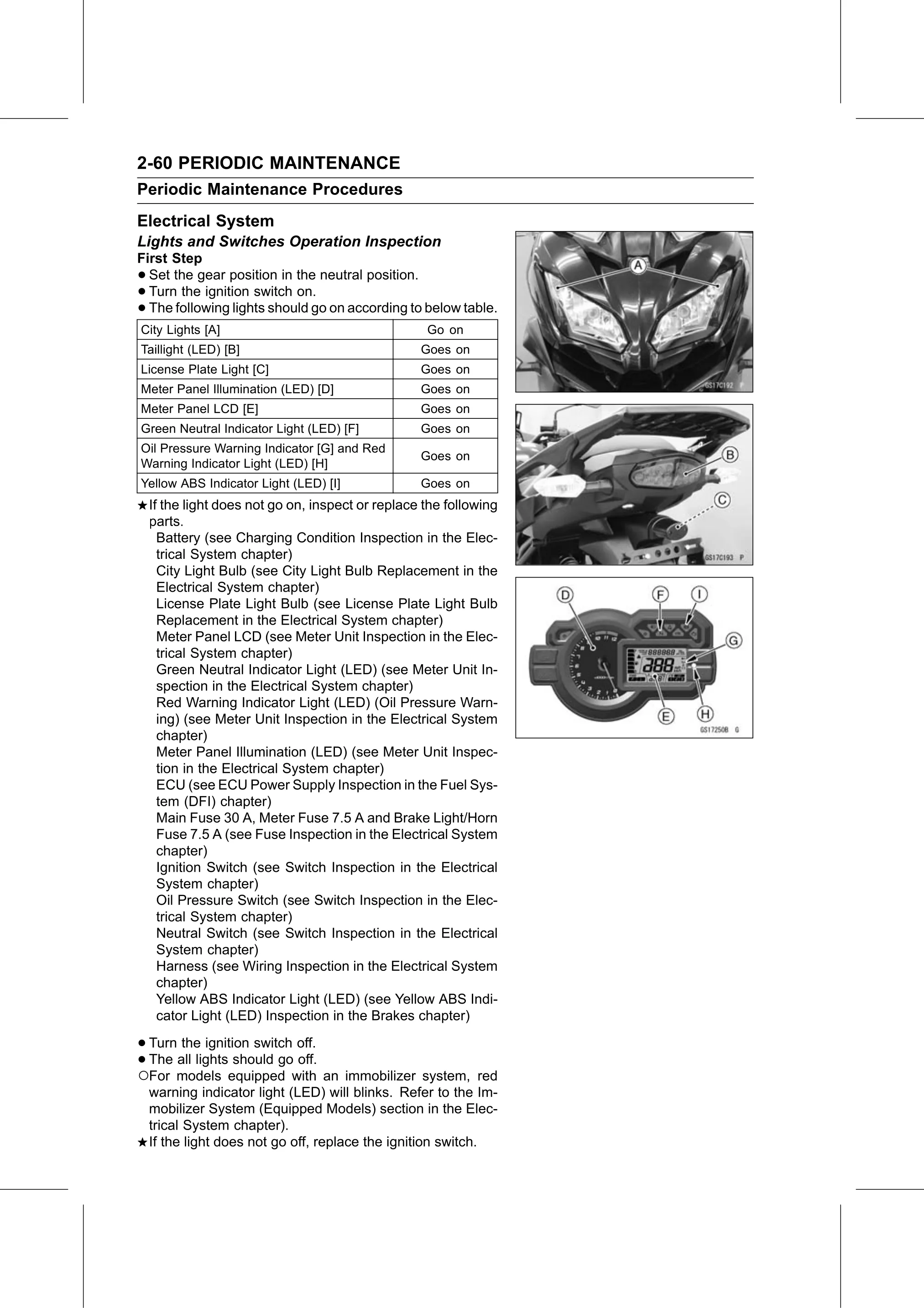

2-60 PERIODIC MAINTENANCE
Periodic Maintenance Procedures
Electrical System
Lights and Switches Operation Inspection
First Step
• Set the gear position in the neutral position.
• Turn the ignition switch on.
• The following lights should go on according to below table.
City Lights [A]                                     Go on
Taillight (LED) [B]                                Goes on
License Plate Light [C]                            Goes on
Meter Panel Illumination (LED) [D]                 Goes on
Meter Panel LCD [E]                                Goes on
Green Neutral Indicator Light (LED) [F]            Goes on
Oil Pressure Warning Indicator [G] and Red
                                                   Goes on
Warning Indicator Light (LED) [H]
Yellow ABS Indicator Light (LED) [I]               Goes on
    If the light does not go on, inspect or replace the following
    parts.
      Battery (see Charging Condition Inspection in the Elec-
      trical System chapter)
      City Light Bulb (see City Light Bulb Replacement in the
      Electrical System chapter)
      License Plate Light Bulb (see License Plate Light Bulb
      Replacement in the Electrical System chapter)
      Meter Panel LCD (see Meter Unit Inspection in the Elec-
      trical System chapter)
      Green Neutral Indicator Light (LED) (see Meter Unit In-
      spection in the Electrical System chapter)
      Red Warning Indicator Light (LED) (Oil Pressure Warn-
      ing) (see Meter Unit Inspection in the Electrical System
      chapter)
      Meter Panel Illumination (LED) (see Meter Unit Inspec-
      tion in the Electrical System chapter)
      ECU (see ECU Power Supply Inspection in the Fuel Sys-
      tem (DFI) chapter)
      Main Fuse 30 A, Meter Fuse 7.5 A and Brake Light/Horn
      Fuse 7.5 A (see Fuse Inspection in the Electrical System
      chapter)
      Ignition Switch (see Switch Inspection in the Electrical
      System chapter)
      Oil Pressure Switch (see Switch Inspection in the Elec-
      trical System chapter)
      Neutral Switch (see Switch Inspection in the Electrical
      System chapter)
      Harness (see Wiring Inspection in the Electrical System
      chapter)
      Yellow ABS Indicator Light (LED) (see Yellow ABS Indi-
      cator Light (LED) Inspection in the Brakes chapter)

• Turn  the ignition switch off.
•○For models
  The  all lights should go off.
                 equipped with an immobilizer system, red
    warning indicator light (LED) will blinks. Refer to the Im-
    mobilizer System (Equipped Models) section in the Elec-
    trical System chapter).
    If the light does not go off, replace the ignition switch.
