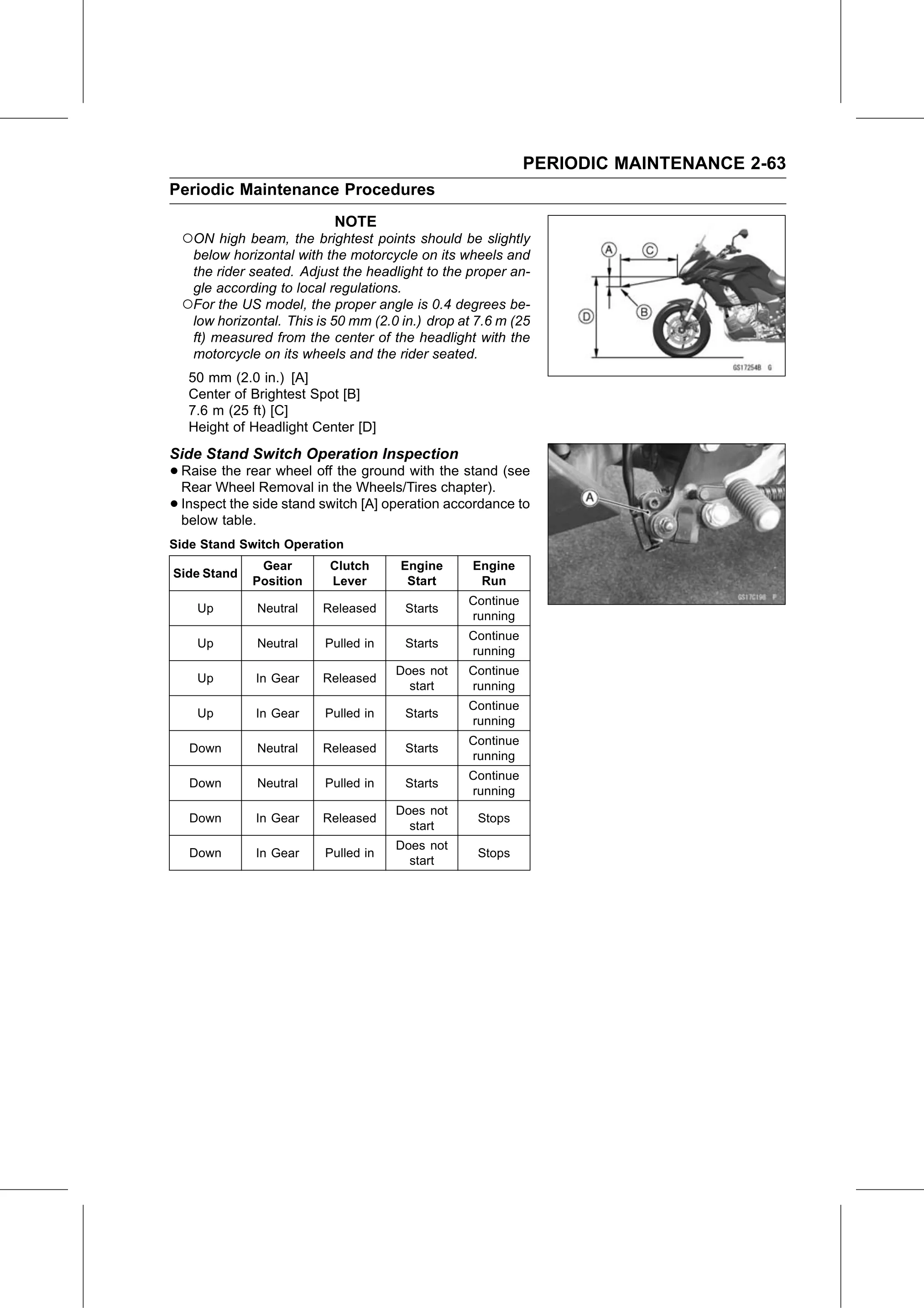

PERIODIC MAINTENANCE 2-63
Periodic Maintenance Procedures
NOTE
○ON high beam, the brightest points should be slightly
below horizontal with the motorcycle on its wheels and
the rider seated. Adjust the headlight to the proper an-
gle according to local regulations.
○For the US model, the proper angle is 0.4 degrees be-
low horizontal. This is 50 mm (2.0 in.) drop at 7.6 m (25
ft) measured from the center of the headlight with the
motorcycle on its wheels and the rider seated.
50 mm (2.0 in.) [A]
Center of Brightest Spot [B]
7.6 m (25 ft) [C]
Height of Headlight Center [D]
Side Stand Switch Operation Inspection
• Raise the rear wheel off the ground with the stand (see
Rear Wheel Removal in the Wheels/Tires chapter).
• Inspect the side stand switch [A] operation accordance to
below table.
Side Stand Switch Operation
Gear Clutch Engine Engine
Side Stand
Position Lever Start Run
Continue
Up Neutral Released Starts
running
Continue
Up Neutral Pulled in Starts
running
Does not Continue
Up In Gear Released
start running
Continue
Up In Gear Pulled in Starts
running
Continue
Down Neutral Released Starts
running
Continue
Down Neutral Pulled in Starts
running
Does not
Down In Gear Released Stops
start
Does not
Down In Gear Pulled in Stops
start
