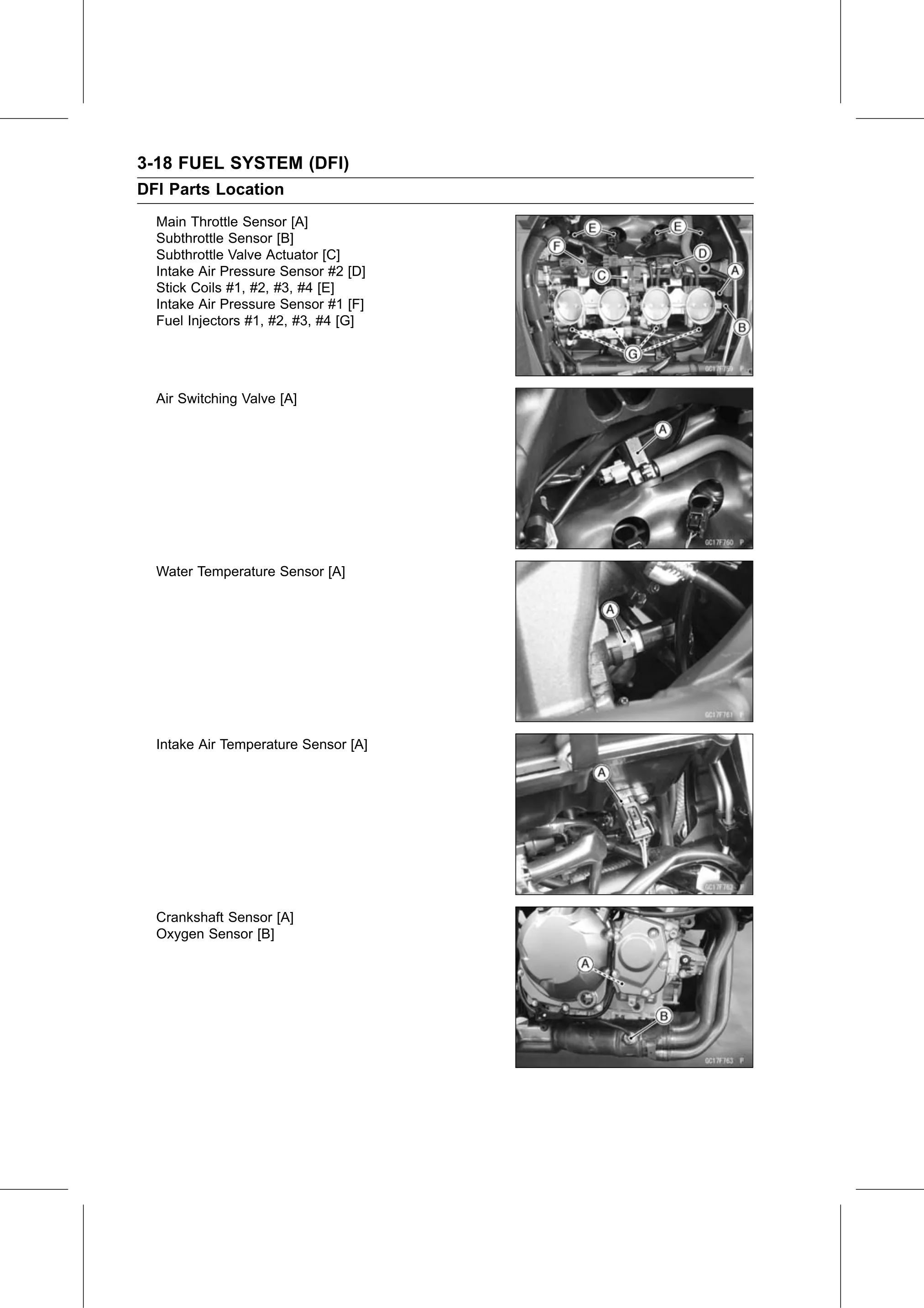

3-18 FUEL SYSTEM (DFI)
DFI Parts Location
  Main Throttle Sensor [A]
  Subthrottle Sensor [B]
  Subthrottle Valve Actuator [C]
  Intake Air Pressure Sensor #2 [D]
  Stick Coils #1, #2, #3, #4 [E]
  Intake Air Pressure Sensor #1 [F]
  Fuel Injectors #1, #2, #3, #4 [G]

  Air Switching Valve [A]

  Water Temperature Sensor [A]

  Intake Air Temperature Sensor [A]

  Crankshaft Sensor [A]
  Oxygen Sensor [B]
