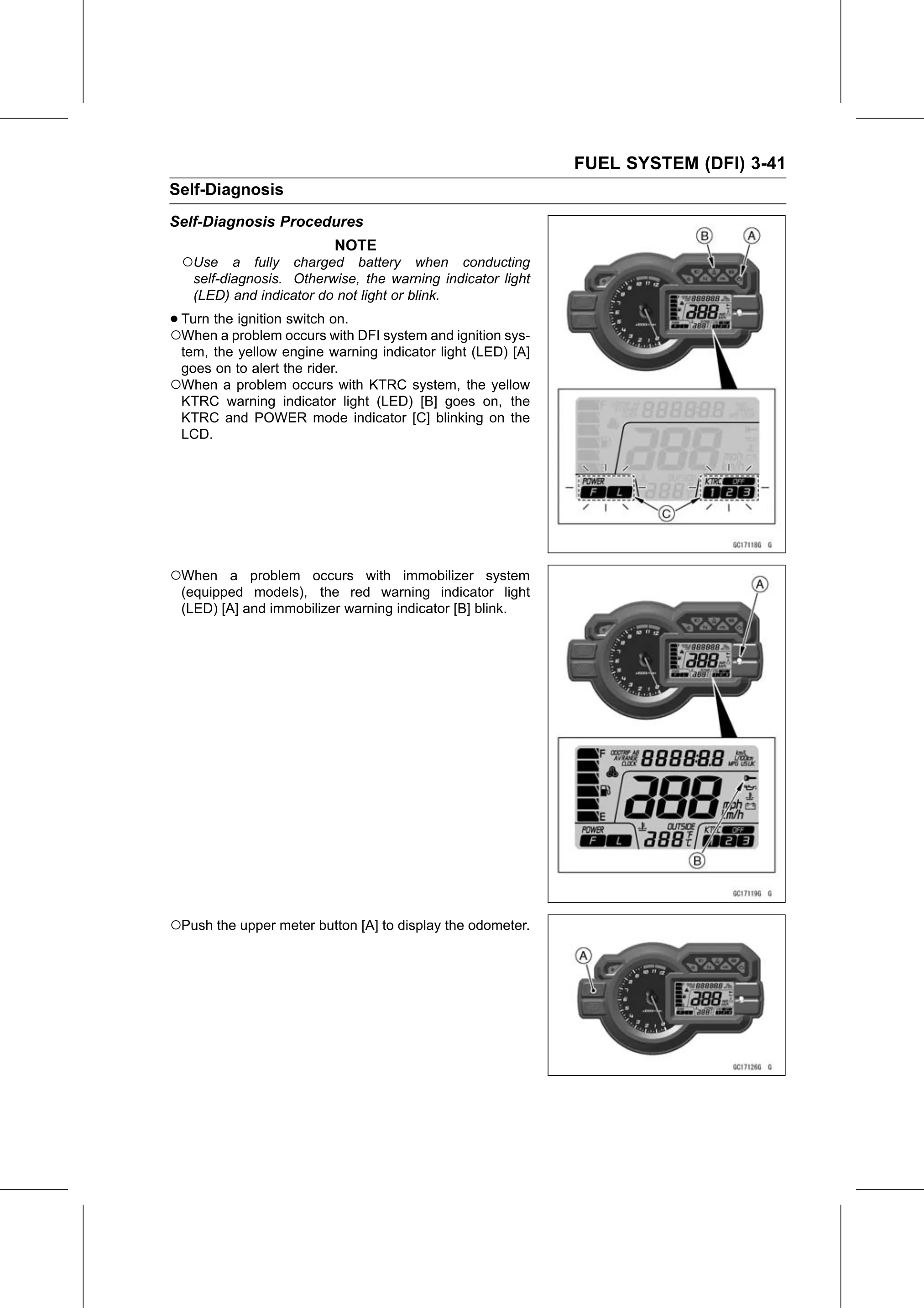

FUEL SYSTEM (DFI) 3-41
Self-Diagnosis
Self-Diagnosis Procedures
                          NOTE
 ○Use a fully charged battery when conducting
   self-diagnosis. Otherwise, the warning indicator light
   (LED) and indicator do not light or blink.

•○Turn the ignition switch on.
  When a problem occurs with DFI system and ignition sys-
 tem, the yellow engine warning indicator light (LED) [A]
 goes on to alert the rider.
○When a problem occurs with KTRC system, the yellow
 KTRC warning indicator light (LED) [B] goes on, the
 KTRC and POWER mode indicator [C] blinking on the
 LCD.

○When a problem occurs with immobilizer system
 (equipped models), the red warning indicator light
 (LED) [A] and immobilizer warning indicator [B] blink.

○Push the upper meter button [A] to display the odometer.
