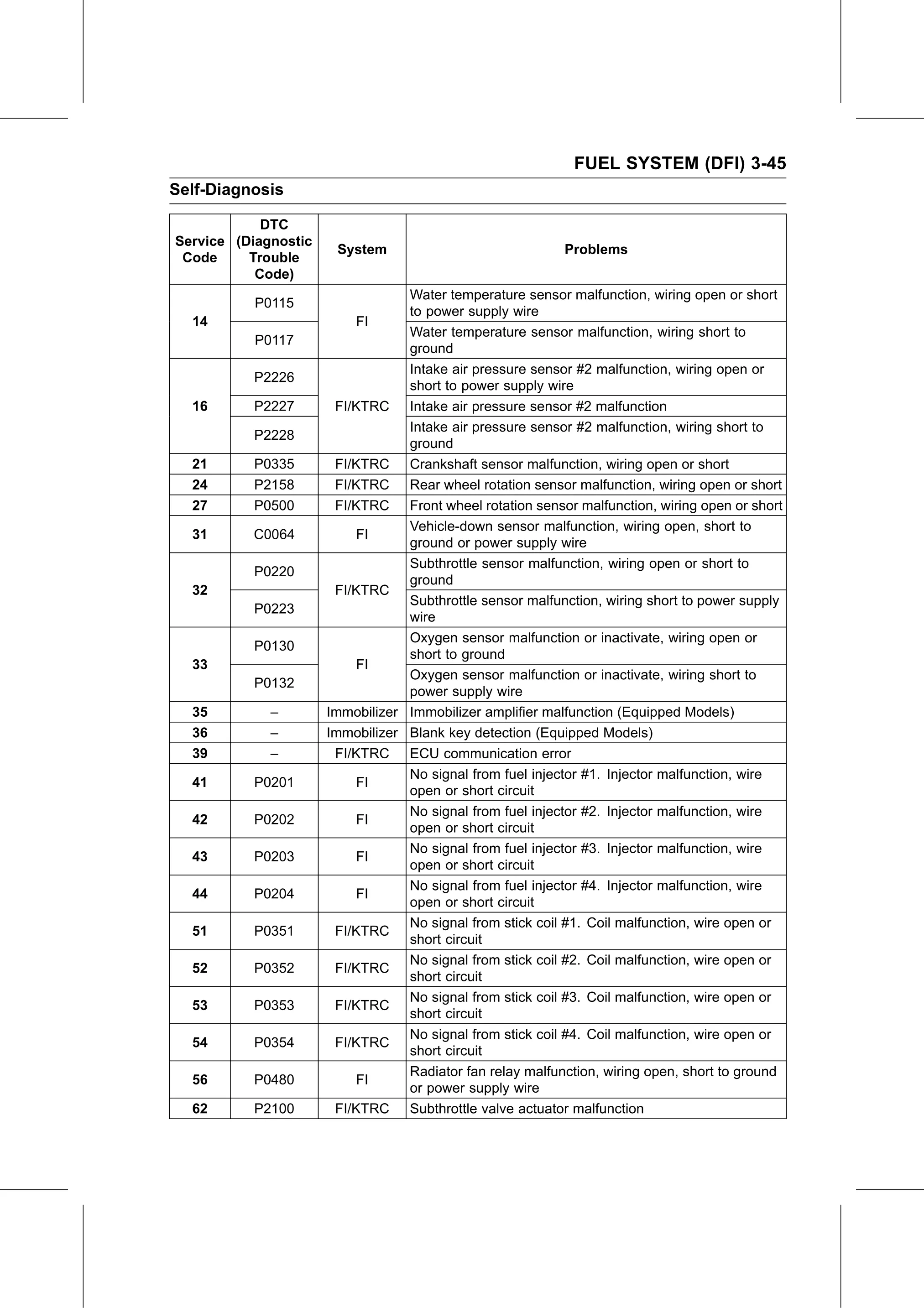

FUEL SYSTEM (DFI) 3-45
Self-Diagnosis

            DTC
Service (Diagnostic
                       System                              Problems
 Code     Trouble
           Code)
                                  Water temperature sensor malfunction, wiring open or short
           P0115
                                  to power supply wire
  14                      FI
                                  Water temperature sensor malfunction, wiring short to
           P0117
                                  ground
                                  Intake air pressure sensor #2 malfunction, wiring open or
          P2226
                                  short to power supply wire
  16      P2227        FI/KTRC Intake air pressure sensor #2 malfunction
                                  Intake air pressure sensor #2 malfunction, wiring short to
          P2228
                                  ground
  21      P0335        FI/KTRC Crankshaft sensor malfunction, wiring open or short
  24      P2158        FI/KTRC Rear wheel rotation sensor malfunction, wiring open or short
  27      P0500        FI/KTRC Front wheel rotation sensor malfunction, wiring open or short
                                  Vehicle-down sensor malfunction, wiring open, short to
  31      C0064           FI
                                  ground or power supply wire
                                  Subthrottle sensor malfunction, wiring open or short to
          P0220
                                  ground
  32                   FI/KTRC
                                  Subthrottle sensor malfunction, wiring short to power supply
          P0223
                                  wire
                                  Oxygen sensor malfunction or inactivate, wiring open or
          P0130
                                  short to ground
  33                      FI
                                  Oxygen sensor malfunction or inactivate, wiring short to
          P0132
                                  power supply wire
  35         –        Immobilizer Immobilizer amplifier malfunction (Equipped Models)
  36         –        Immobilizer Blank key detection (Equipped Models)
  39         –         FI/KTRC ECU communication error
                                  No signal from fuel injector #1. Injector malfunction, wire
  41      P0201           FI
                                  open or short circuit
                                  No signal from fuel injector #2. Injector malfunction, wire
  42      P0202           FI
                                  open or short circuit
                                  No signal from fuel injector #3. Injector malfunction, wire
  43      P0203           FI
                                  open or short circuit
                                  No signal from fuel injector #4. Injector malfunction, wire
  44      P0204           FI
                                  open or short circuit
                                  No signal from stick coil #1. Coil malfunction, wire open or
  51      P0351        FI/KTRC
                                  short circuit
                                  No signal from stick coil #2. Coil malfunction, wire open or
  52      P0352        FI/KTRC
                                  short circuit
                                  No signal from stick coil #3. Coil malfunction, wire open or
  53      P0353        FI/KTRC
                                  short circuit
                                  No signal from stick coil #4. Coil malfunction, wire open or
  54      P0354        FI/KTRC
                                  short circuit
                                  Radiator fan relay malfunction, wiring open, short to ground
  56      P0480           FI
                                  or power supply wire
  62      P2100        FI/KTRC Subthrottle valve actuator malfunction
