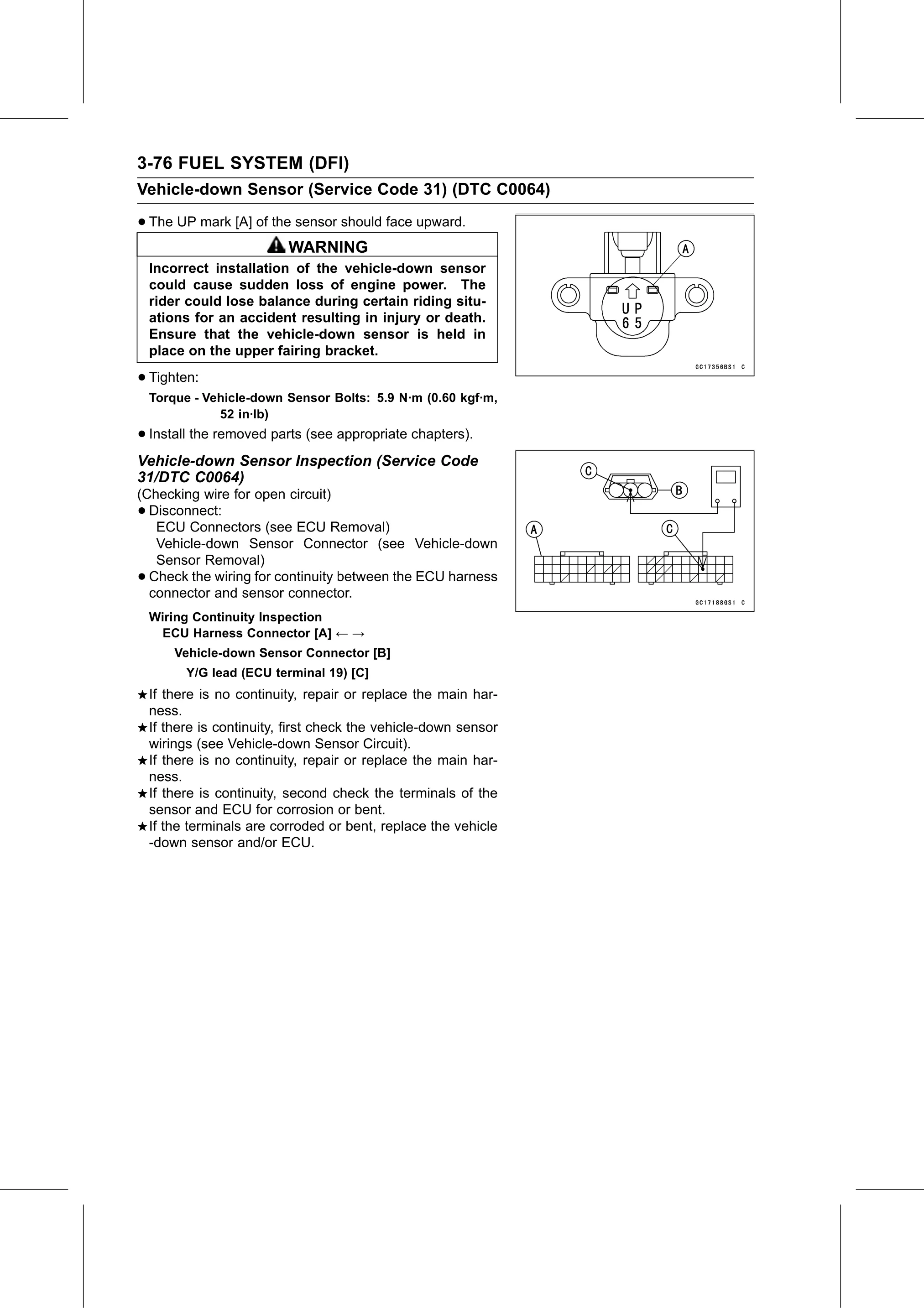

3-76 FUEL SYSTEM (DFI)
Vehicle-down Sensor (Service Code 31) (DTC C0064)

• The UP mark [A] of the sensor should face upward.
                           WARNING
    Incorrect installation of the vehicle-down sensor
    could cause sudden loss of engine power. The
    rider could lose balance during certain riding situ-
    ations for an accident resulting in injury or death.
    Ensure that the vehicle-down sensor is held in
    place on the upper fairing bracket.

• Tighten:
    Torque - Vehicle-down Sensor Bolts: 5.9 N·m (0.60 kgf·m,
               52 in·lb)
• Install the removed parts (see appropriate chapters).
Vehicle-down Sensor Inspection (Service Code
31/DTC C0064)
(Checking wire for open circuit)
• Disconnect:
   ECU Connectors (see ECU Removal)
   Vehicle-down Sensor Connector (see Vehicle-down
   Sensor Removal)
• Check the wiring for continuity between the ECU harness
  connector and sensor connector.
    Wiring Continuity Inspection
     ECU Harness Connector [A] ← →
        Vehicle-down Sensor Connector [B]
          Y/G lead (ECU terminal 19) [C]
    If there is no continuity, repair or replace the main har-
    ness.
    If there is continuity, first check the vehicle-down sensor
    wirings (see Vehicle-down Sensor Circuit).
    If there is no continuity, repair or replace the main har-
    ness.
    If there is continuity, second check the terminals of the
    sensor and ECU for corrosion or bent.
    If the terminals are corroded or bent, replace the vehicle
    -down sensor and/or ECU.
