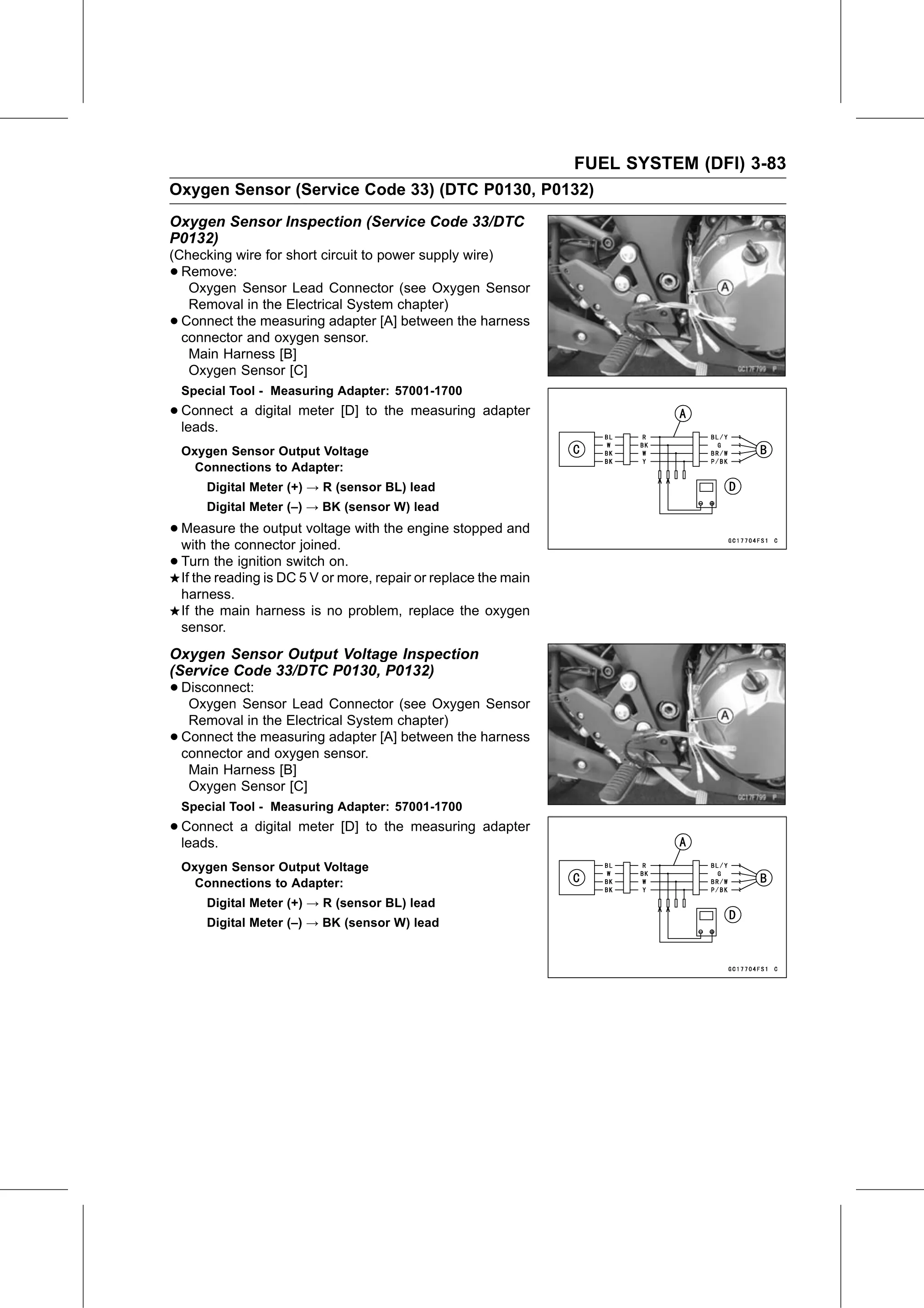

FUEL SYSTEM (DFI) 3-83
Oxygen Sensor (Service Code 33) (DTC P0130, P0132)
Oxygen Sensor Inspection (Service Code 33/DTC
P0132)
(Checking wire for short circuit to power supply wire)
• Remove:
   Oxygen Sensor Lead Connector (see Oxygen Sensor
   Removal in the Electrical System chapter)
• Connect the measuring adapter [A] between the harness
  connector and oxygen sensor.
   Main Harness [B]
   Oxygen Sensor [C]
    Special Tool - Measuring Adapter: 57001-1700
• Connect
  leads.
          a digital meter [D] to the measuring adapter

    Oxygen Sensor Output Voltage
      Connections to Adapter:
       Digital Meter (+) → R (sensor BL) lead
       Digital Meter (–) → BK (sensor W) lead

• Measure     the output voltage with the engine stopped and
  with the connector joined.
• Turn   the ignition switch on.
  If the reading is DC 5 V or more, repair or replace the main
    harness.
    If the main harness is no problem, replace the oxygen
    sensor.
Oxygen Sensor Output Voltage Inspection
(Service Code 33/DTC P0130, P0132)
• Disconnect:
   Oxygen Sensor Lead Connector (see Oxygen Sensor
     Removal in the Electrical System chapter)
•   Connect the measuring adapter [A] between the harness
    connector and oxygen sensor.
     Main Harness [B]
     Oxygen Sensor [C]
    Special Tool - Measuring Adapter: 57001-1700
• Connect
  leads.
          a digital meter [D] to the measuring adapter

    Oxygen Sensor Output Voltage
      Connections to Adapter:
       Digital Meter (+) → R (sensor BL) lead
       Digital Meter (–) → BK (sensor W) lead
