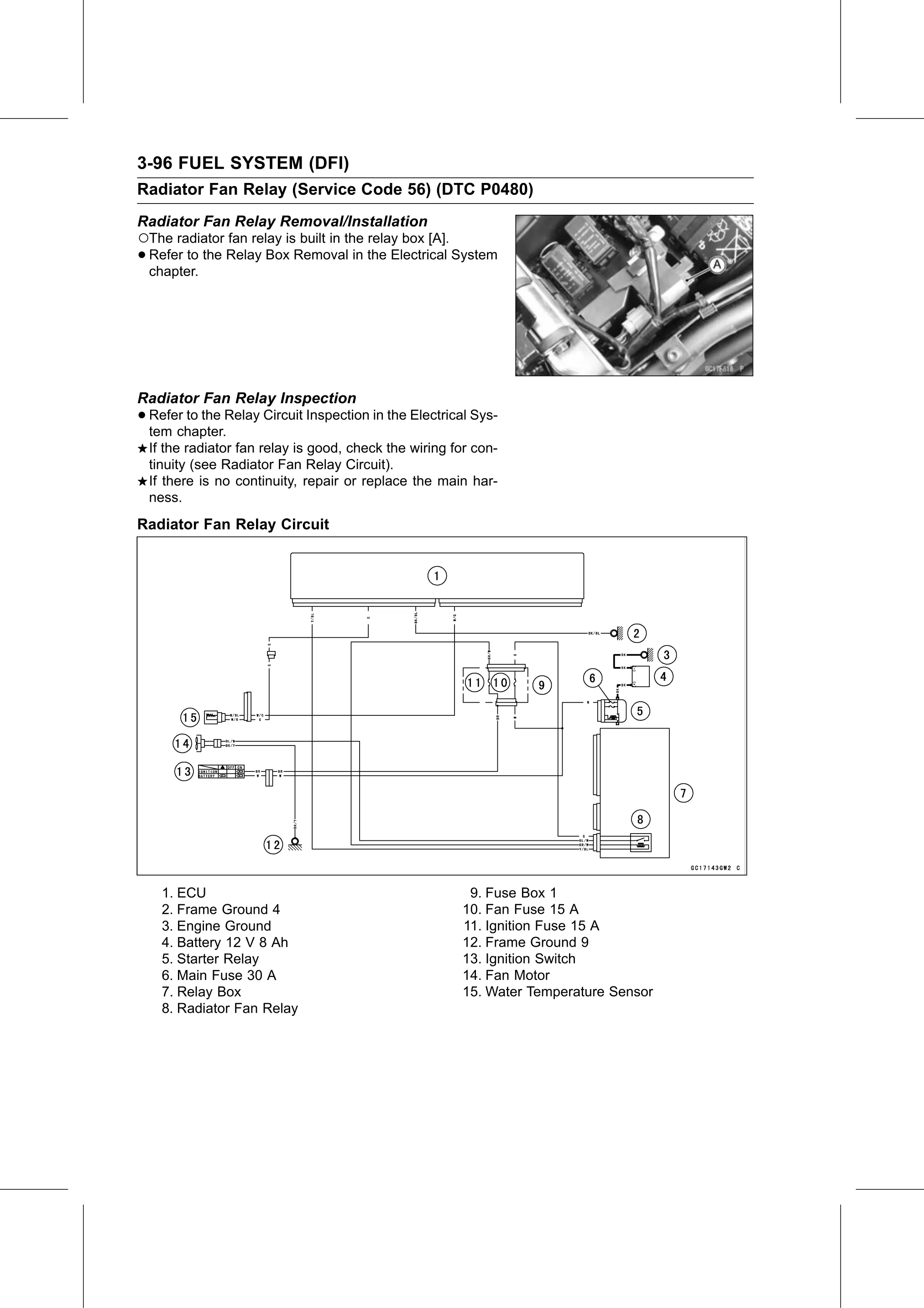

3-96 FUEL SYSTEM (DFI)
Radiator Fan Relay (Service Code 56) (DTC P0480)
Radiator Fan Relay Removal/Installation
○The radiator fan relay is built in the relay box [A].
• Refer to the Relay Box Removal in the Electrical System
  chapter.

Radiator Fan Relay Inspection
• Refer to the Relay Circuit Inspection in the Electrical Sys-
  tem chapter.
  If the radiator fan relay is good, check the wiring for con-
  tinuity (see Radiator Fan Relay Circuit).
  If there is no continuity, repair or replace the main har-
  ness.
Radiator Fan Relay Circuit

    1. ECU                                                9. Fuse Box 1
    2. Frame Ground 4                                    10. Fan Fuse 15 A
    3. Engine Ground                                     11. Ignition Fuse 15 A
    4. Battery 12 V 8 Ah                                 12. Frame Ground 9
    5. Starter Relay                                     13. Ignition Switch
    6. Main Fuse 30 A                                    14. Fan Motor
    7. Relay Box                                         15. Water Temperature Sensor
    8. Radiator Fan Relay
