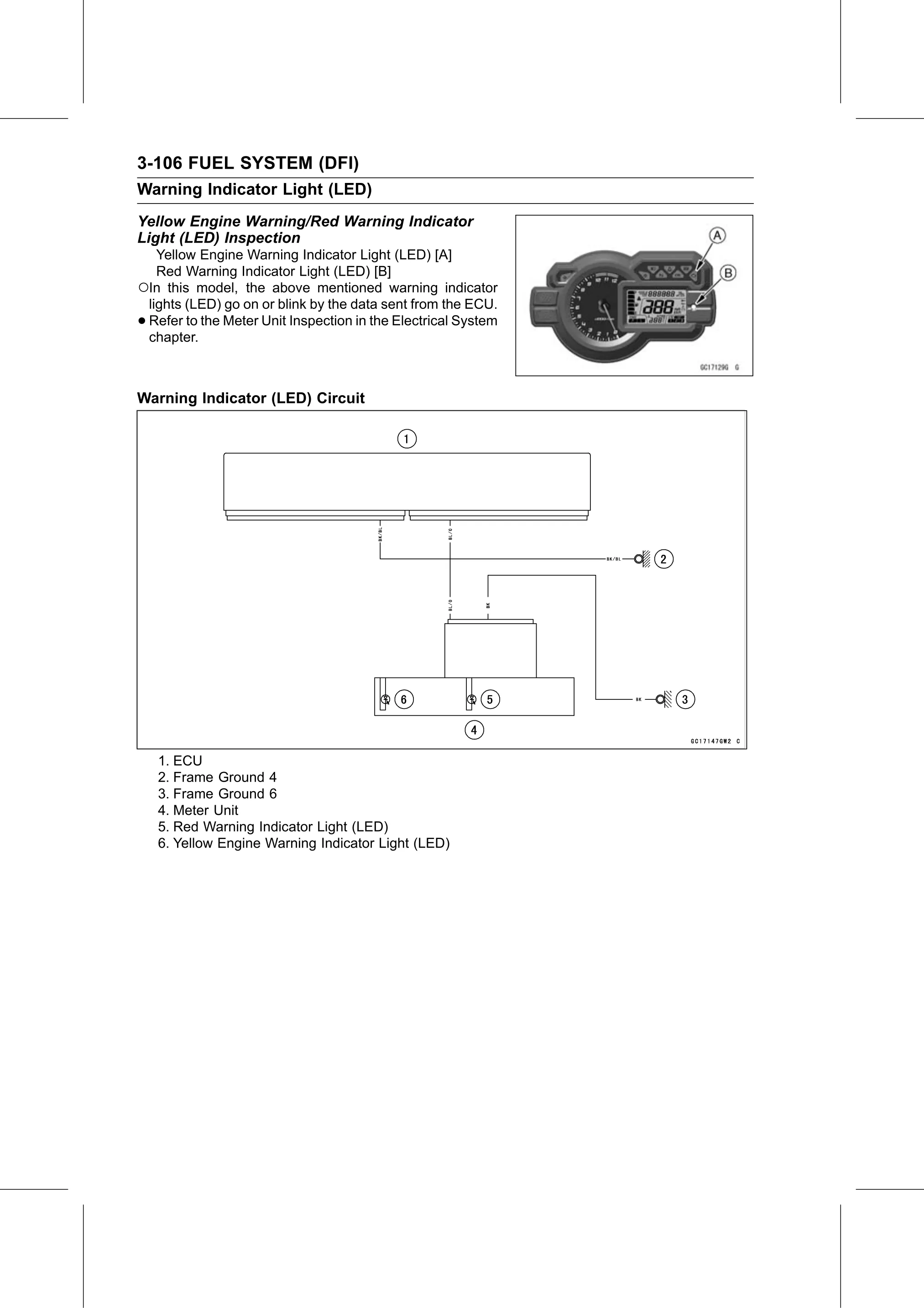

3-106 FUEL SYSTEM (DFI)
Warning Indicator Light (LED)
Yellow Engine Warning/Red Warning Indicator
Light (LED) Inspection
   Yellow Engine Warning Indicator Light (LED) [A]
   Red Warning Indicator Light (LED) [B]
○In this model, the above mentioned warning indicator
 lights (LED) go on or blink by the data sent from the ECU.
•Refer to the Meter Unit Inspection in the Electrical System
 chapter.

Warning Indicator (LED) Circuit

    1. ECU
    2. Frame Ground 4
    3. Frame Ground 6
    4. Meter Unit
    5. Red Warning Indicator Light (LED)
    6. Yellow Engine Warning Indicator Light (LED)
