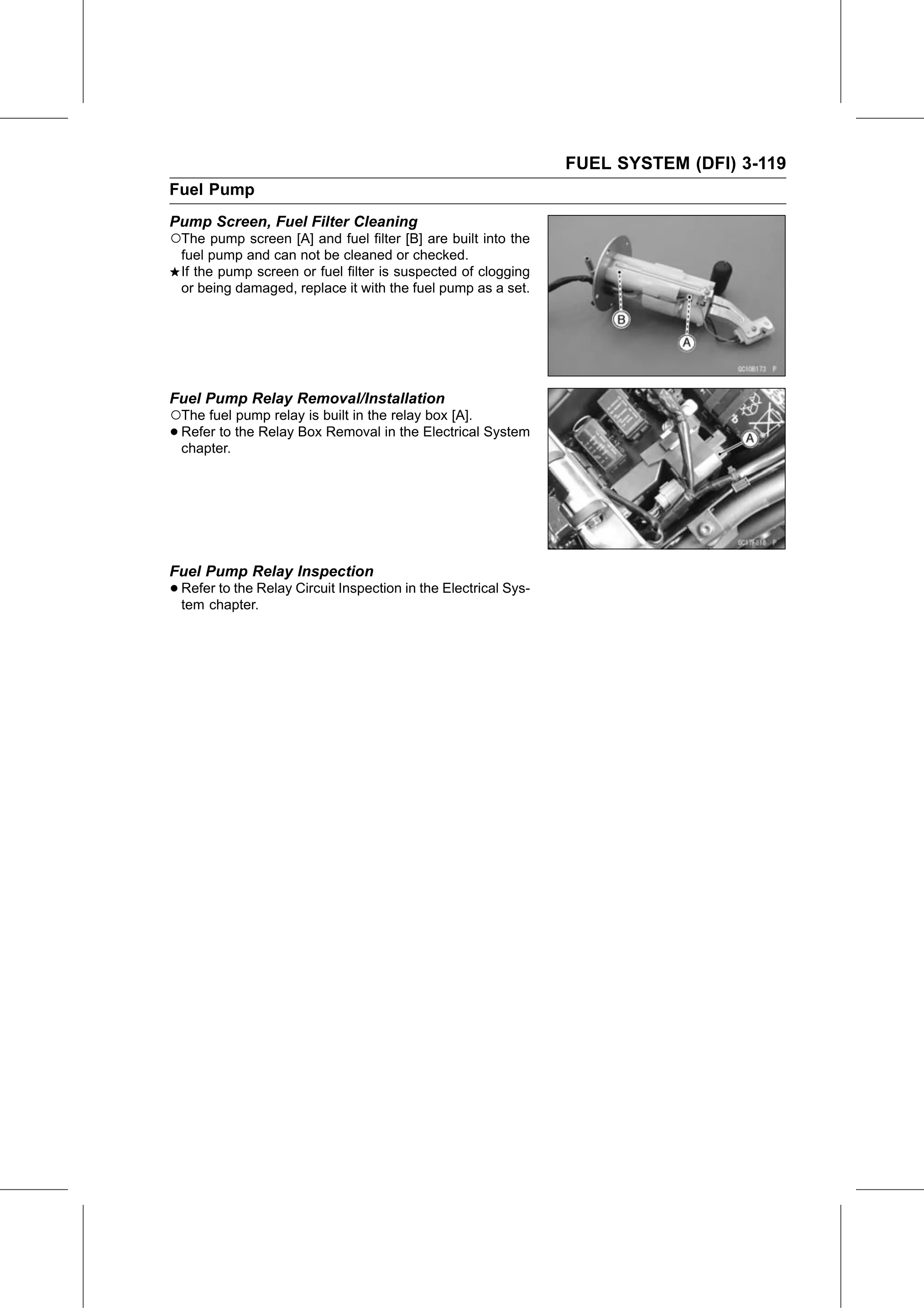

FUEL SYSTEM (DFI) 3-119
Fuel Pump
Pump Screen, Fuel Filter Cleaning
○The pump screen [A] and fuel filter [B] are built into the
  fuel pump and can not be cleaned or checked.
  If the pump screen or fuel filter is suspected of clogging
  or being damaged, replace it with the fuel pump as a set.

Fuel Pump Relay Removal/Installation
○The fuel pump relay is built in the relay box [A].
• Refer to the Relay Box Removal in the Electrical System
  chapter.

Fuel Pump Relay Inspection
• Refer to the Relay Circuit Inspection in the Electrical Sys-
  tem chapter.
