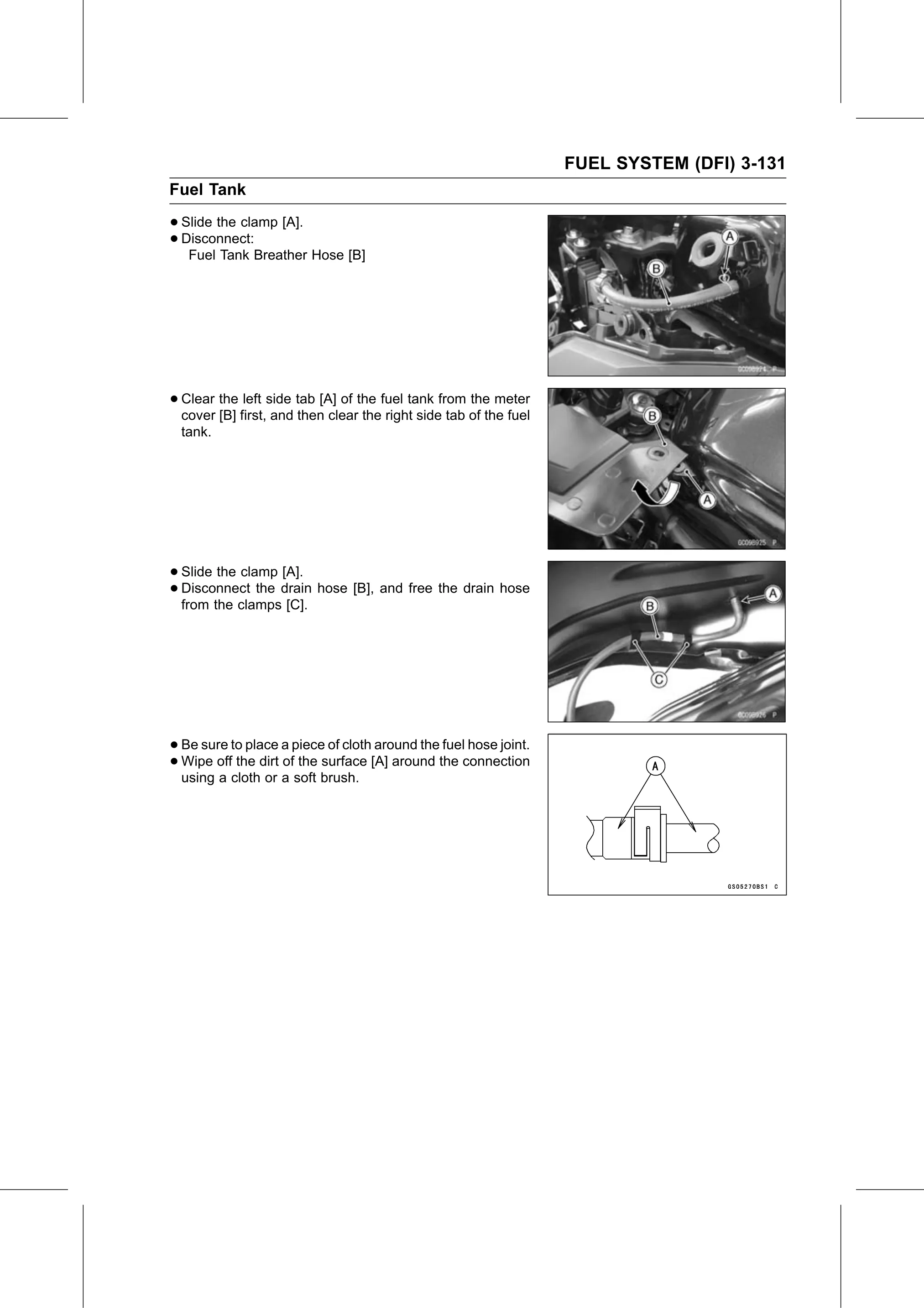

FUEL SYSTEM (DFI) 3-131
Fuel Tank

• Slide the clamp [A].
• Fuel Tank Breather Hose [B]
  Disconnect:

• Clear the left side tab [A] of the fuel tank from the meter
  cover [B] first, and then clear the right side tab of the fuel
  tank.

• Slide the clamp [A].
• from the clamps
  Disconnect   the drain hose [B], and free the drain hose
                    [C].

• Be sure to place a piece of cloth around the fuel hose joint.
• Wipe  off the dirt of the surface [A] around the connection
  using a cloth or a soft brush.
