4-4 COOLING SYSTEM

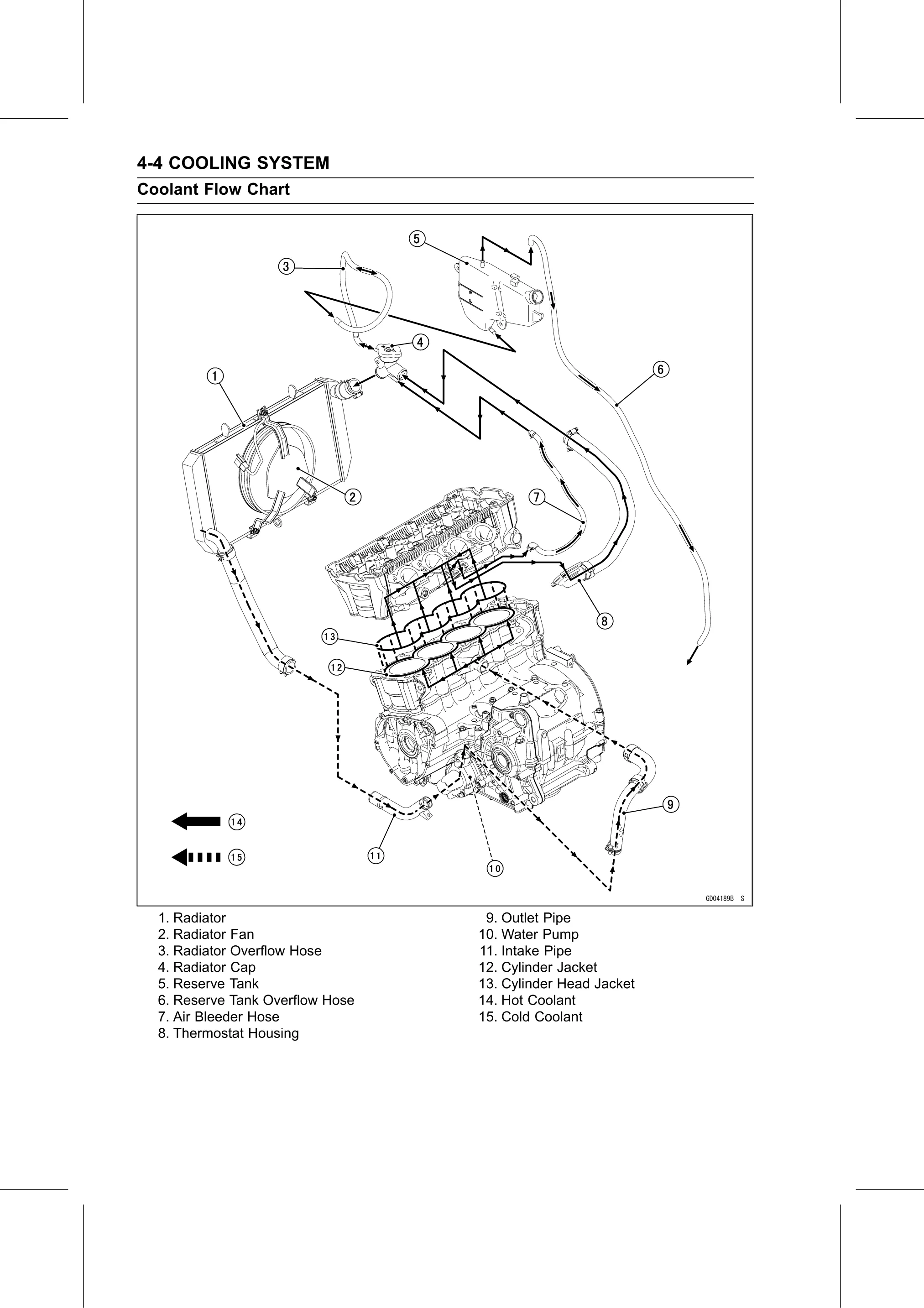

Coolant Flow Chart

  1. Radiator                      9. Outlet Pipe
  2. Radiator Fan                 10. Water Pump
  3. Radiator Overflow Hose       11. Intake Pipe
  4. Radiator Cap                 12. Cylinder Jacket
  5. Reserve Tank                 13. Cylinder Head Jacket
  6. Reserve Tank Overflow Hose   14. Hot Coolant
  7. Air Bleeder Hose             15. Cold Coolant
  8. Thermostat Housing
