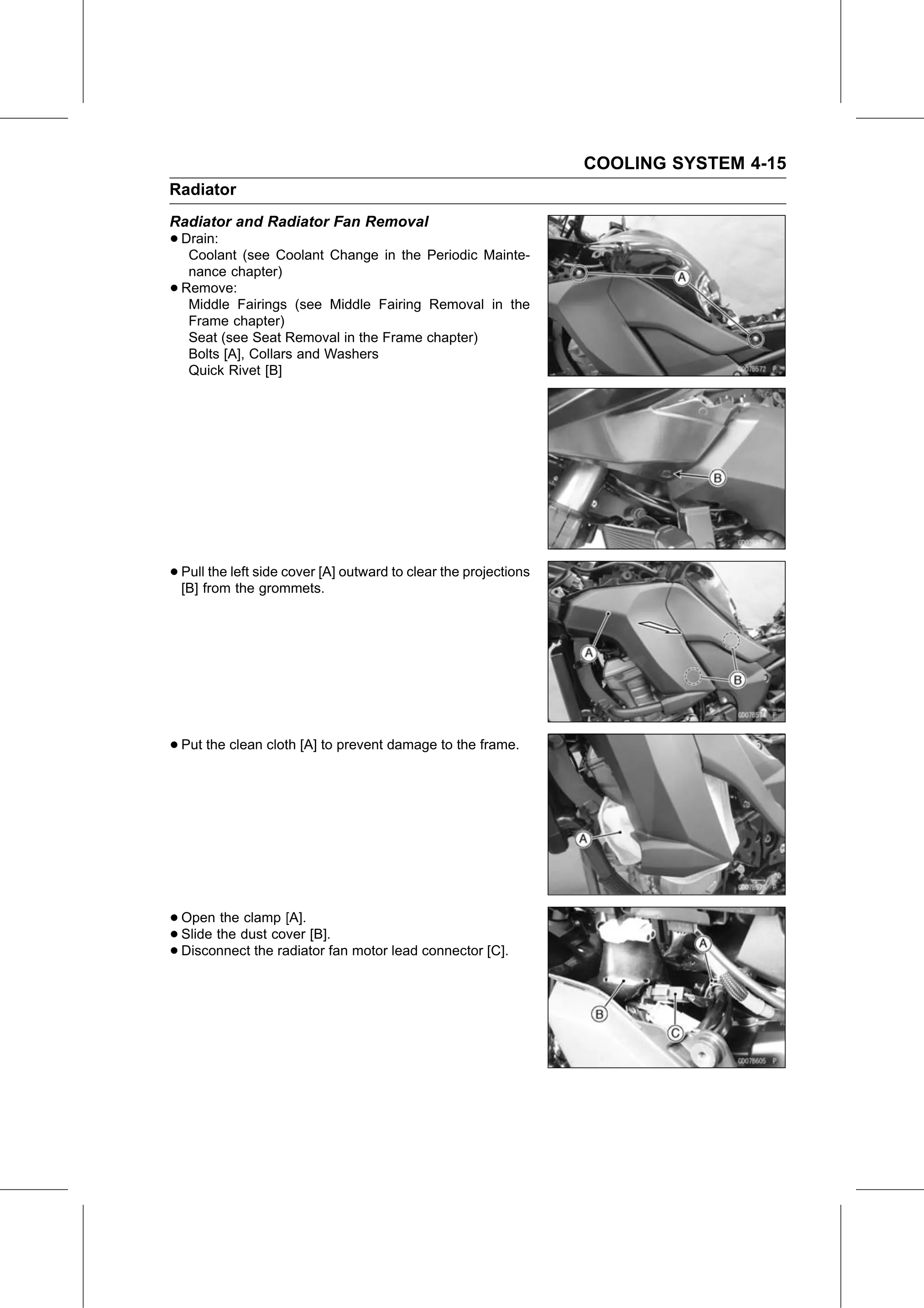

COOLING SYSTEM 4-15
Radiator
Radiator and Radiator Fan Removal
• Drain:
   Coolant (see Coolant Change in the Periodic Mainte-
     nance chapter)
•   Remove:
     Middle Fairings (see Middle Fairing Removal in the
     Frame chapter)
     Seat (see Seat Removal in the Frame chapter)
     Bolts [A], Collars and Washers
     Quick Rivet [B]

• Pull the left side cover [A] outward to clear the projections
  [B] from the grommets.

• Put the clean cloth [A] to prevent damage to the frame.

• Open   the clamp [A].
• Slide the dust cover [B].
• Disconnect   the radiator fan motor lead connector [C].
