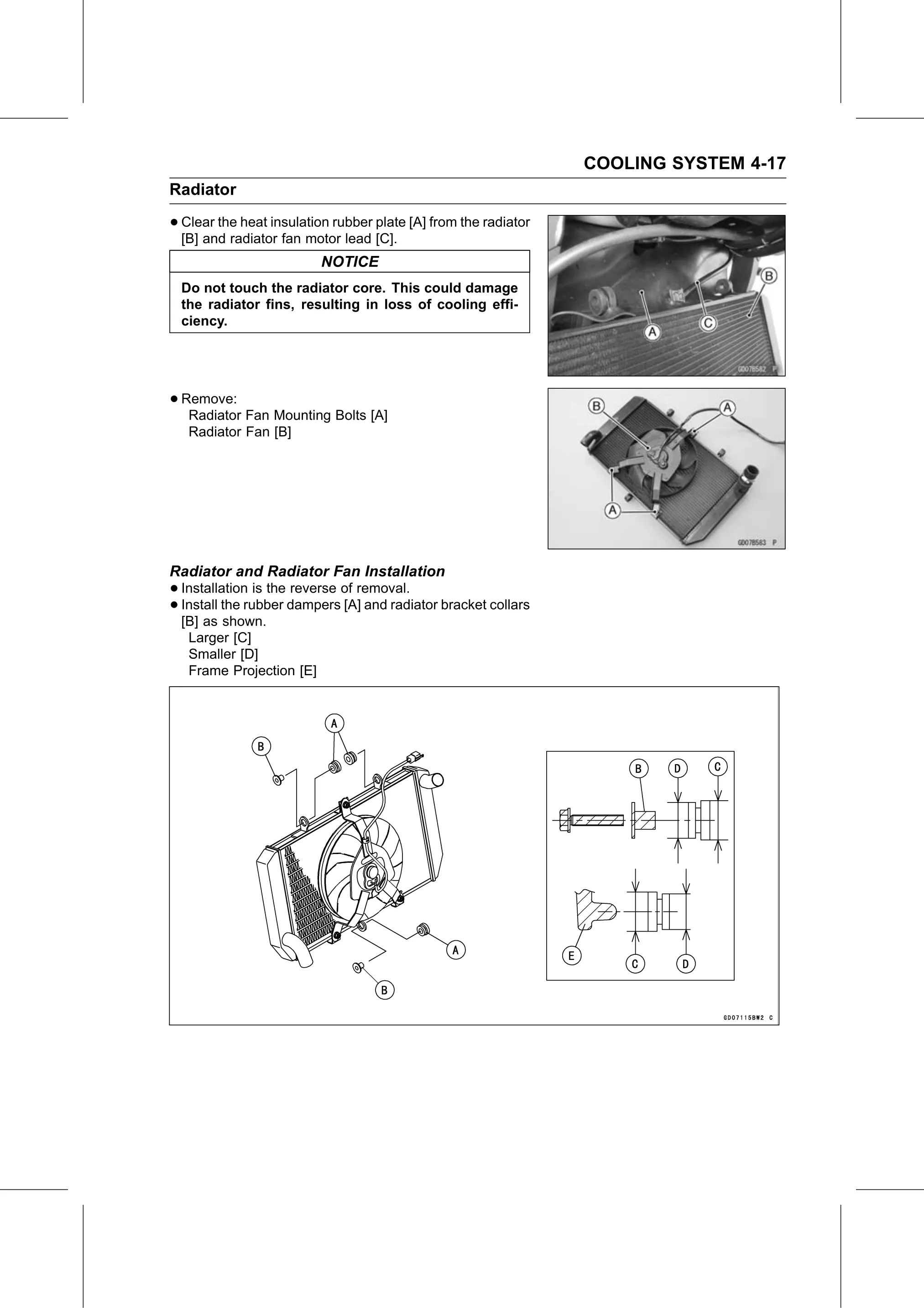

COOLING SYSTEM 4-17
Radiator

• Clear the heat insulation rubber plate [A] from the radiator
  [B] and radiator fan motor lead [C].
                          NOTICE
  Do not touch the radiator core. This could damage
  the radiator fins, resulting in loss of cooling effi-
  ciency.

• Remove:
   Radiator Fan Mounting Bolts [A]
   Radiator Fan [B]

Radiator and Radiator Fan Installation
• Installation  is the reverse of removal.
• Install the rubber dampers [A] and radiator bracket collars
  [B] as shown.
   Larger [C]
   Smaller [D]
   Frame Projection [E]
