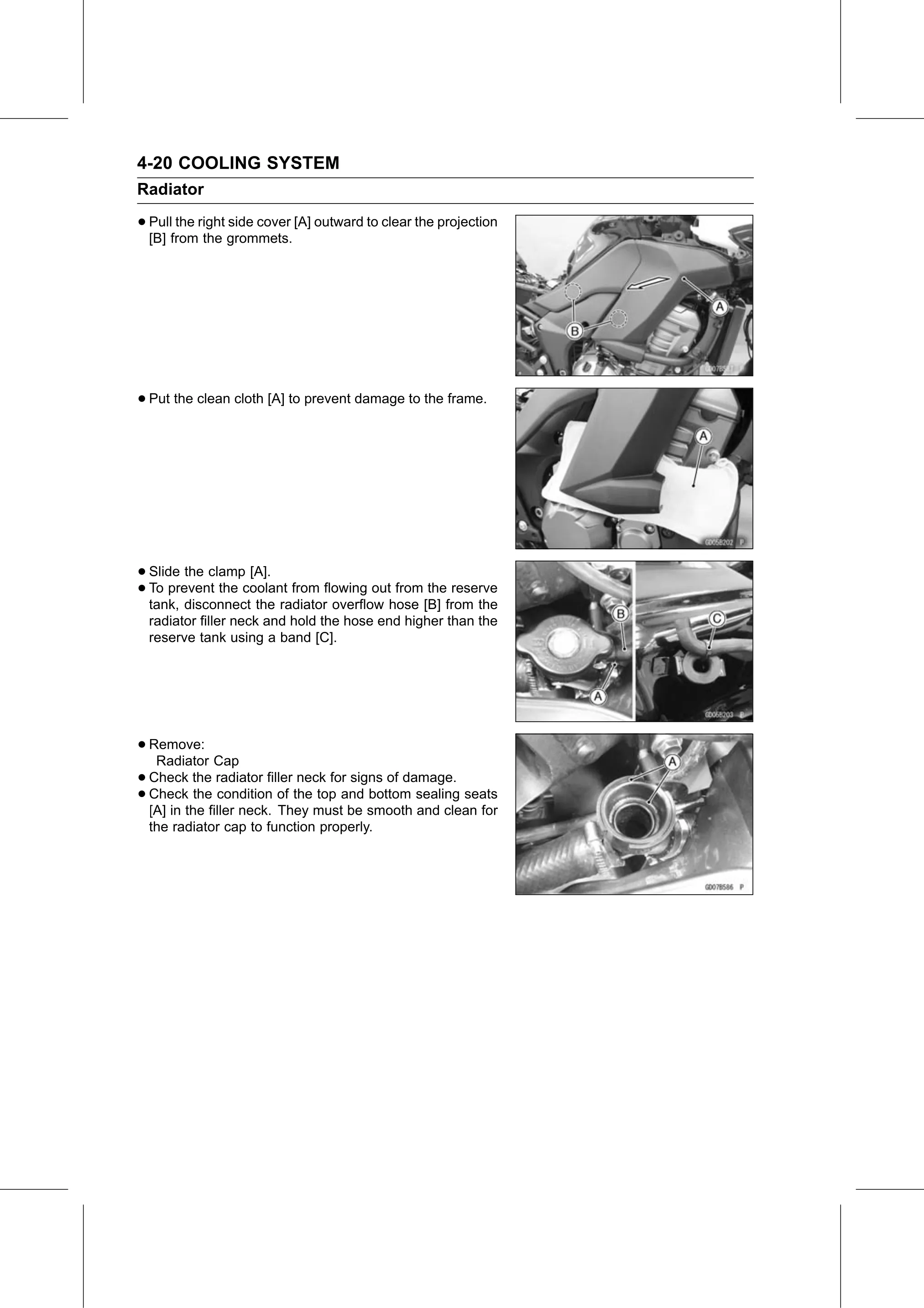

4-20 COOLING SYSTEM
Radiator

• Pull the right side cover [A] outward to clear the projection
  [B] from the grommets.

• Put the clean cloth [A] to prevent damage to the frame.

• Slide the clamp [A].
• tank, disconnect
  To prevent  the coolant from flowing out from the reserve
                    the radiator overflow hose [B] from the
  radiator filler neck and hold the hose end higher than the
  reserve tank using a band [C].

• Remove:
   Radiator Cap
• Check the
  Check        radiator filler neck for signs of damage.
• [A] in the filler
           the condition of the top and bottom sealing seats
                    neck. They must be smooth and clean for
  the radiator cap to function properly.
