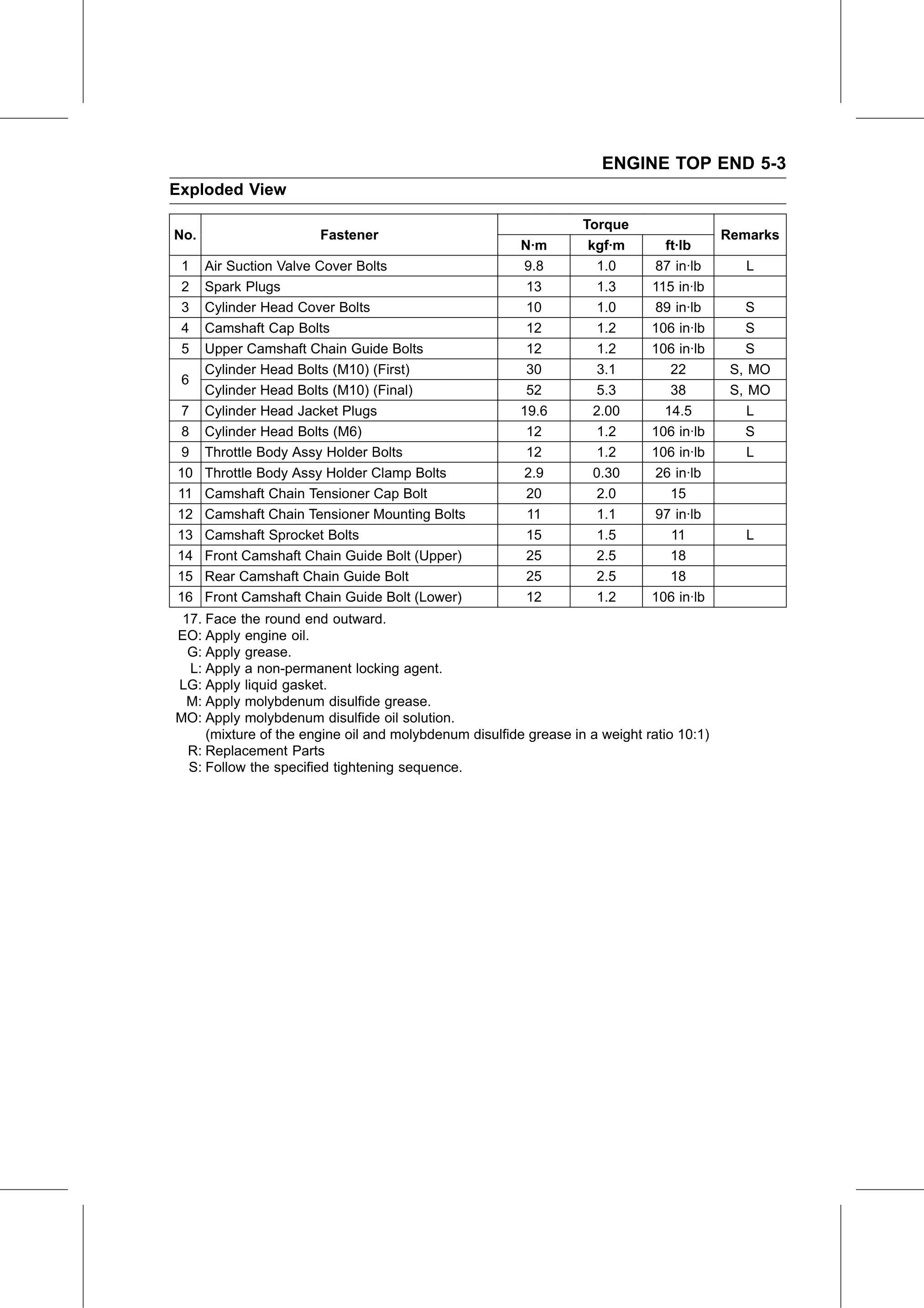

ENGINE TOP END 5-3
Exploded View
Torque
No. Fastener Remarks
N·m kgf·m ft·lb
1 Air Suction Valve Cover Bolts 9.8 1.0 87 in·lb L
2 Spark Plugs 13 1.3 115 in·lb
3 Cylinder Head Cover Bolts 10 1.0 89 in·lb S
4 Camshaft Cap Bolts 12 1.2 106 in·lb S
5 Upper Camshaft Chain Guide Bolts 12 1.2 106 in·lb S
Cylinder Head Bolts (M10) (First) 30 3.1 22 S, MO
6
Cylinder Head Bolts (M10) (Final) 52 5.3 38 S, MO
7 Cylinder Head Jacket Plugs 19.6 2.00 14.5 L
8 Cylinder Head Bolts (M6) 12 1.2 106 in·lb S
9 Throttle Body Assy Holder Bolts 12 1.2 106 in·lb L
10 Throttle Body Assy Holder Clamp Bolts 2.9 0.30 26 in·lb
11 Camshaft Chain Tensioner Cap Bolt 20 2.0 15
12 Camshaft Chain Tensioner Mounting Bolts 11 1.1 97 in·lb
13 Camshaft Sprocket Bolts 15 1.5 11 L
14 Front Camshaft Chain Guide Bolt (Upper) 25 2.5 18
15 Rear Camshaft Chain Guide Bolt 25 2.5 18
16 Front Camshaft Chain Guide Bolt (Lower) 12 1.2 106 in·lb
17. Face the round end outward.
EO: Apply engine oil.
G: Apply grease.
L: Apply a non-permanent locking agent.
LG: Apply liquid gasket.
M: Apply molybdenum disulfide grease.
MO: Apply molybdenum disulfide oil solution.
(mixture of the engine oil and molybdenum disulfide grease in a weight ratio 10:1)
R: Replacement Parts
S: Follow the specified tightening sequence.
