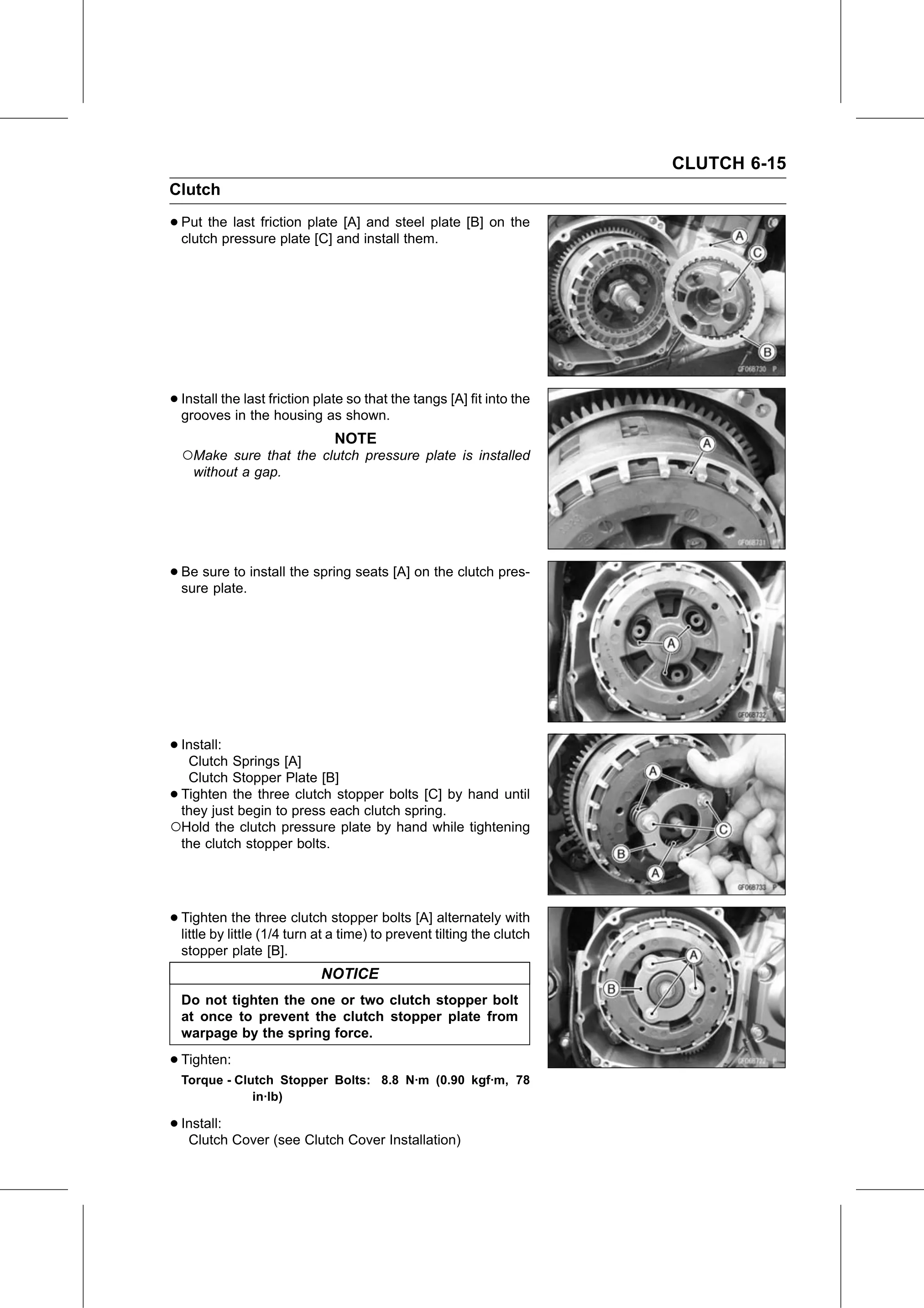

CLUTCH 6-15
Clutch

• Put  the last friction plate [A] and steel plate [B] on the
  clutch pressure plate [C] and install them.

• Install the last friction plate so that the tangs [A] fit into the
  grooves in the housing as shown.
                               NOTE
    ○Make sure that the clutch pressure plate is installed
      without a gap.

• Be sure to install the spring seats [A] on the clutch pres-
  sure plate.

• Install:
   Clutch Springs [A]
  Clutch Stopper Plate [B]
•Tighten the three clutch stopper bolts [C] by hand until
 they just begin to press each clutch spring.
○Hold the clutch pressure plate by hand while tightening
 the clutch stopper bolts.

• Tighten    the three clutch stopper bolts [A] alternately with
  little by little (1/4 turn at a time) to prevent tilting the clutch
    stopper plate [B].
                             NOTICE
    Do not tighten the one or two clutch stopper bolt
    at once to prevent the clutch stopper plate from
    warpage by the spring force.

• Tighten:
    Torque - Clutch Stopper Bolts: 8.8 N·m (0.90 kgf·m, 78
                in·lb)

• Install:
   Clutch Cover (see Clutch Cover Installation)
