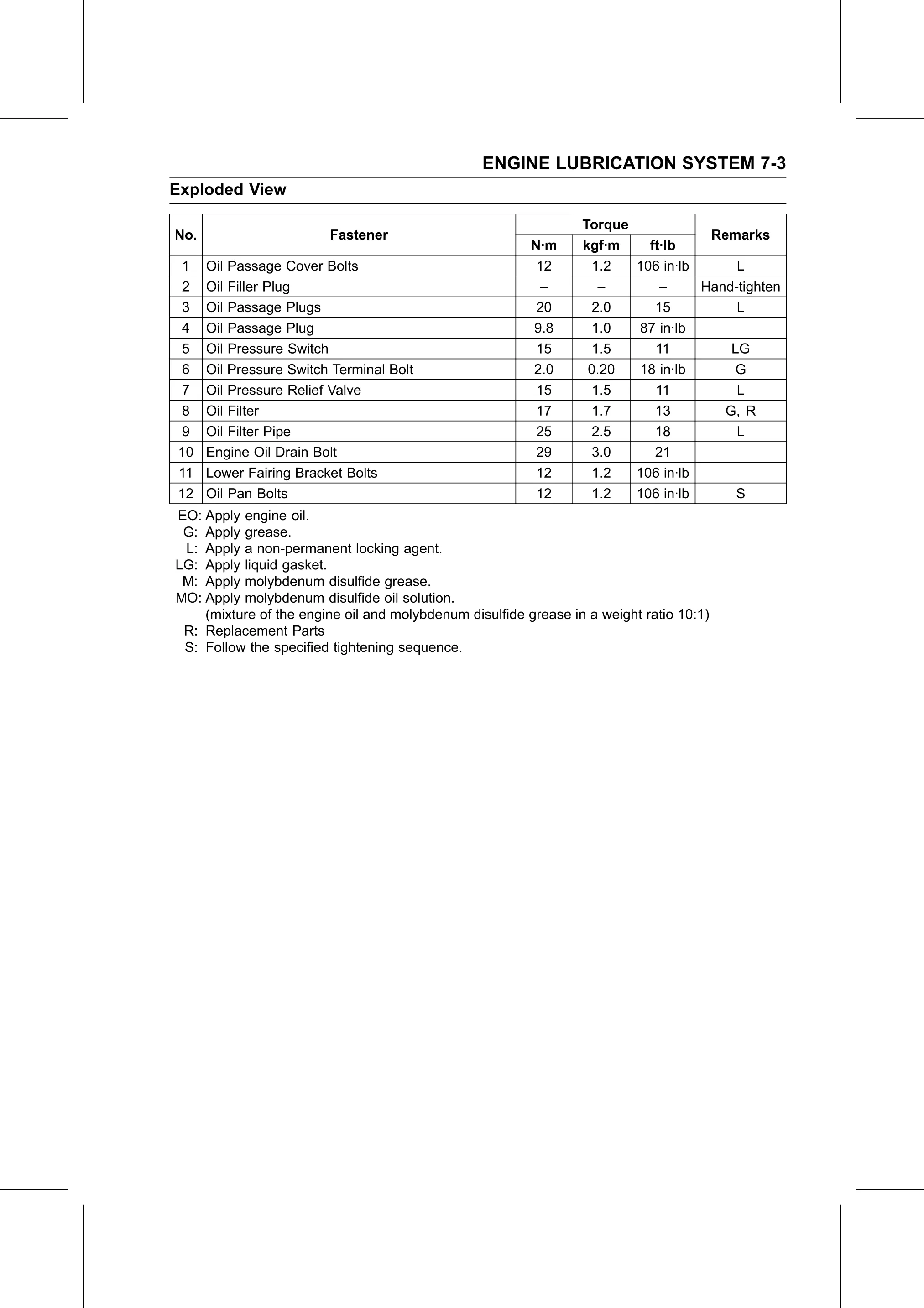

ENGINE LUBRICATION SYSTEM 7-3
Exploded View

                                                                 Torque
No.                      Fastener                                                  Remarks
                                                         N·m     kgf·m    ft·lb
 1    Oil Passage Cover Bolts                             12       1.2  106 in·lb      L
 2    Oil Filler Plug                                      –        –       –     Hand-tighten
 3    Oil Passage Plugs                                   20       2.0     15          L
 4    Oil Passage Plug                                   9.8       1.0  87 in·lb
 5    Oil Pressure Switch                                 15       1.5     11         LG
 6    Oil Pressure Switch Terminal Bolt                  2.0      0.20  18 in·lb       G
 7    Oil Pressure Relief Valve                           15       1.5     11          L
 8    Oil Filter                                          17       1.7     13        G, R
 9    Oil Filter Pipe                                     25       2.5     18          L
10    Engine Oil Drain Bolt                               29       3.0     21
11    Lower Fairing Bracket Bolts                         12       1.2  106 in·lb
12    Oil Pan Bolts                                       12       1.2  106 in·lb      S
EO: Apply engine oil.
 G: Apply grease.
 L: Apply a non-permanent locking agent.
LG: Apply liquid gasket.
 M: Apply molybdenum disulfide grease.
MO: Apply molybdenum disulfide oil solution.
    (mixture of the engine oil and molybdenum disulfide grease in a weight ratio 10:1)
 R: Replacement Parts
 S: Follow the specified tightening sequence.
