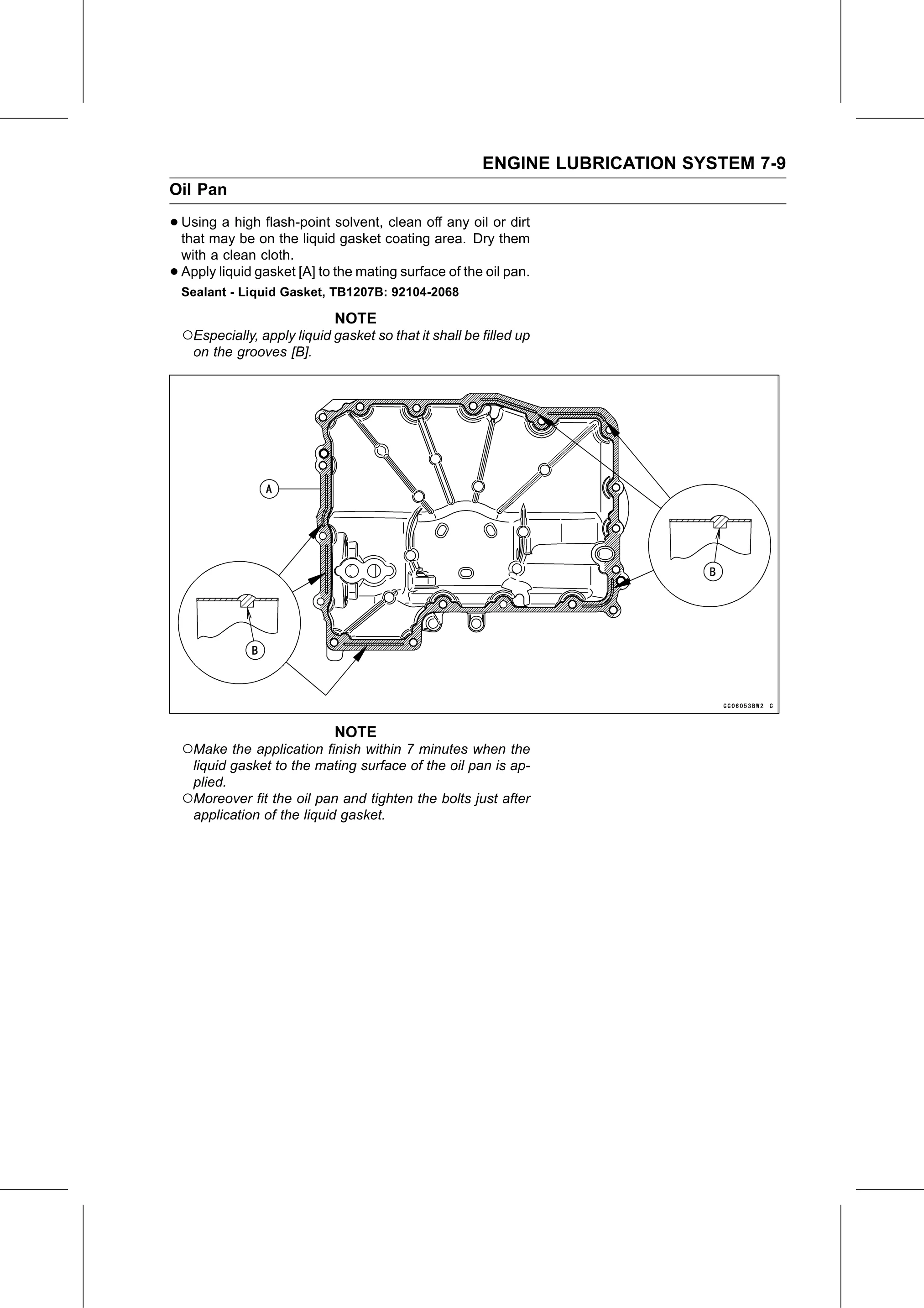

ENGINE LUBRICATION SYSTEM 7-9
Oil Pan

• Using a high flash-point solvent, clean off any oil or dirt
  that may be on the liquid gasket coating area. Dry them
    with a clean cloth.
•   Apply liquid gasket [A] to the mating surface of the oil pan.
    Sealant - Liquid Gasket, TB1207B: 92104-2068

                               NOTE
    ○Especially, apply liquid gasket so that it shall be filled up
      on the grooves [B].

                               NOTE
    ○Make the application finish within 7 minutes when the
     liquid gasket to the mating surface of the oil pan is ap-
     plied.
    ○Moreover fit the oil pan and tighten the bolts just after
     application of the liquid gasket.
