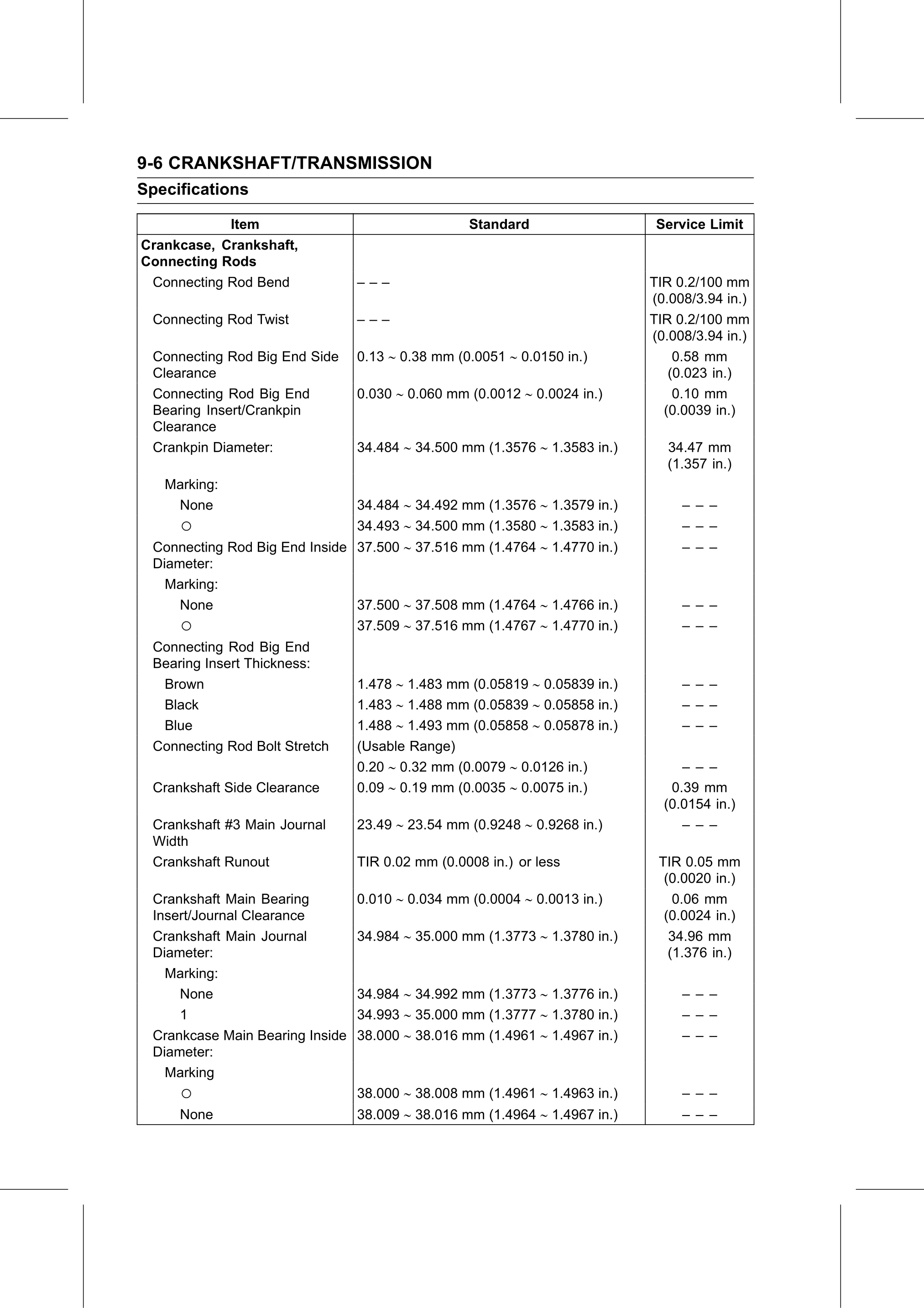

9-6 CRANKSHAFT/TRANSMISSION
Specifications

            Item                                  Standard                   Service Limit
Crankcase, Crankshaft,
Connecting Rods
 Connecting Rod Bend             –––                                        TIR 0.2/100 mm
                                                                            (0.008/3.94 in.)
 Connecting Rod Twist            –––                                        TIR 0.2/100 mm
                                                                            (0.008/3.94 in.)
 Connecting Rod Big End Side     0.13 ∼ 0.38 mm (0.0051 ∼ 0.0150 in.)           0.58 mm
 Clearance                                                                     (0.023 in.)
 Connecting Rod Big End          0.030 ∼ 0.060 mm (0.0012 ∼ 0.0024 in.)         0.10 mm
 Bearing Insert/Crankpin                                                      (0.0039 in.)
 Clearance
 Crankpin Diameter:              34.484 ∼ 34.500 mm (1.3576 ∼ 1.3583 in.)     34.47 mm
                                                                              (1.357 in.)
   Marking:
    None                         34.484 ∼ 34.492 mm (1.3576 ∼ 1.3579 in.)        – – –
     ○                           34.493 ∼ 34.500 mm (1.3580 ∼ 1.3583 in.)        – – –
 Connecting Rod Big End Inside 37.500 ∼ 37.516 mm (1.4764 ∼ 1.4770 in.)          – – –
 Diameter:
   Marking:
     None                      37.500 ∼ 37.508 mm (1.4764 ∼ 1.4766 in.)          – – –
     ○                         37.509 ∼ 37.516 mm (1.4767 ∼ 1.4770 in.)          – – –
 Connecting Rod Big End
 Bearing Insert Thickness:
  Brown                          1.478 ∼ 1.483 mm (0.05819 ∼ 0.05839 in.)        – – –
  Black                          1.483 ∼ 1.488 mm (0.05839 ∼ 0.05858 in.)        – – –
  Blue                           1.488 ∼ 1.493 mm (0.05858 ∼ 0.05878 in.)        – – –
 Connecting Rod Bolt Stretch     (Usable Range)
                                 0.20 ∼ 0.32 mm (0.0079 ∼ 0.0126 in.)            – – –
 Crankshaft Side Clearance       0.09 ∼ 0.19 mm (0.0035 ∼ 0.0075 in.)          0.39 mm
                                                                              (0.0154 in.)
 Crankshaft #3 Main Journal      23.49 ∼ 23.54 mm (0.9248 ∼ 0.9268 in.)          – – –
 Width
 Crankshaft Runout               TIR 0.02 mm (0.0008 in.) or less            TIR 0.05 mm
                                                                              (0.0020 in.)
 Crankshaft Main Bearing         0.010 ∼ 0.034 mm (0.0004 ∼ 0.0013 in.)         0.06 mm
 Insert/Journal Clearance                                                     (0.0024 in.)
 Crankshaft Main Journal         34.984 ∼ 35.000 mm (1.3773 ∼ 1.3780 in.)      34.96 mm
 Diameter:                                                                     (1.376 in.)
   Marking:
     None                        34.984 ∼ 34.992 mm (1.3773 ∼ 1.3776 in.)        – – –
     1                           34.993 ∼ 35.000 mm (1.3777 ∼ 1.3780 in.)        – – –
 Crankcase Main Bearing Inside   38.000 ∼ 38.016 mm (1.4961 ∼ 1.4967 in.)        – – –
 Diameter:
   Marking
     ○                           38.000 ∼ 38.008 mm (1.4961 ∼ 1.4963 in.)        – – –
     None                        38.009 ∼ 38.016 mm (1.4964 ∼ 1.4967 in.)        – – –
