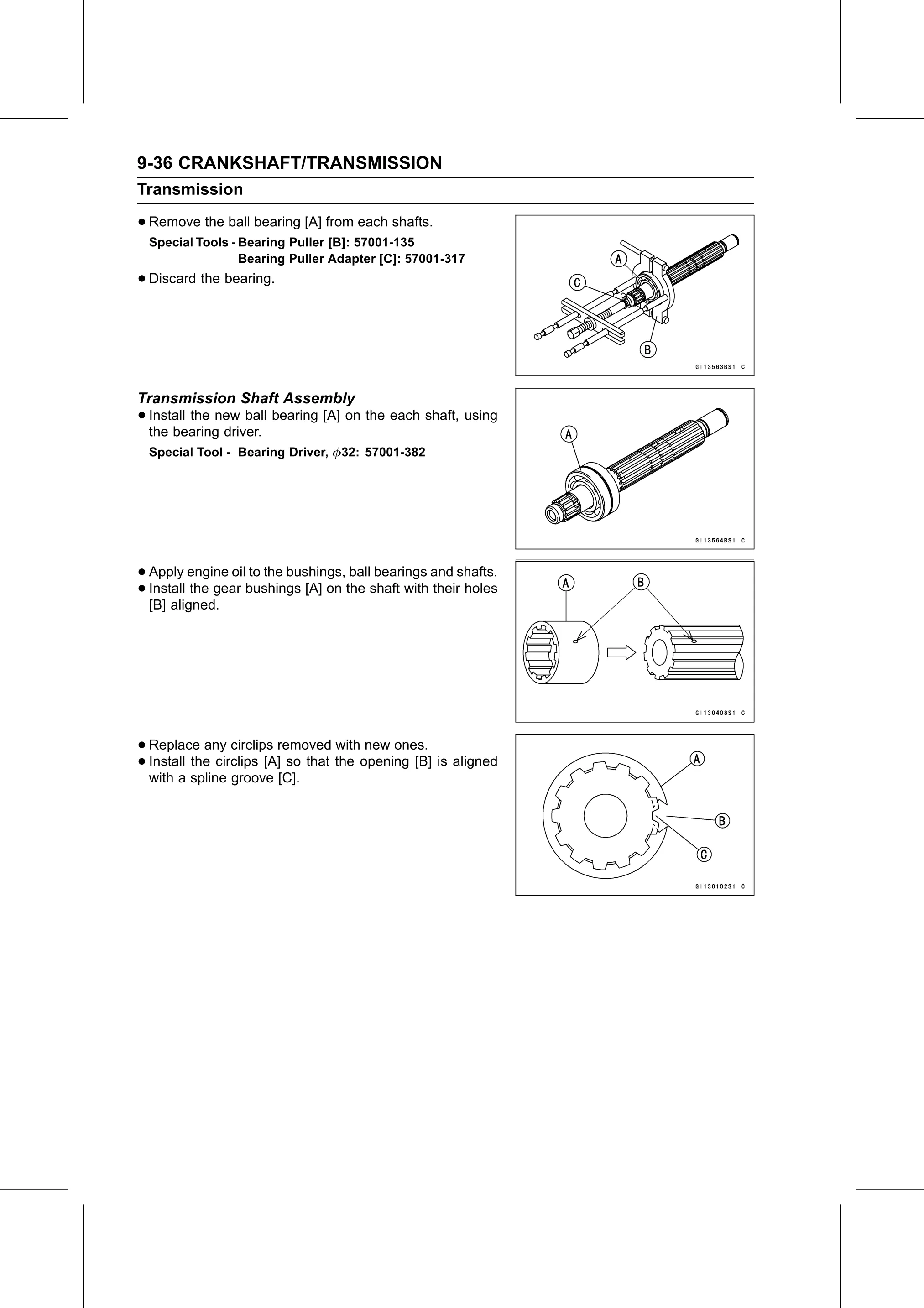

9-36 CRANKSHAFT/TRANSMISSION
Transmission

• Remove the ball bearing [A] from each shafts.
  Special Tools - Bearing Puller [B]: 57001-135
                  Bearing Puller Adapter [C]: 57001-317
• Discard the bearing.

Transmission Shaft Assembly
• Install the new ball bearing [A] on the each shaft, using
  the bearing driver.
  Special Tool - Bearing Driver,   32: 57001-382

• Apply   engine oil to the bushings, ball bearings and shafts.
• [B] aligned.
  Install the gear bushings [A] on the shaft with their holes

• Replace   any circlips removed with new ones.
• Install the circlips [A] so that the opening [B] is aligned
  with a spline groove [C].
