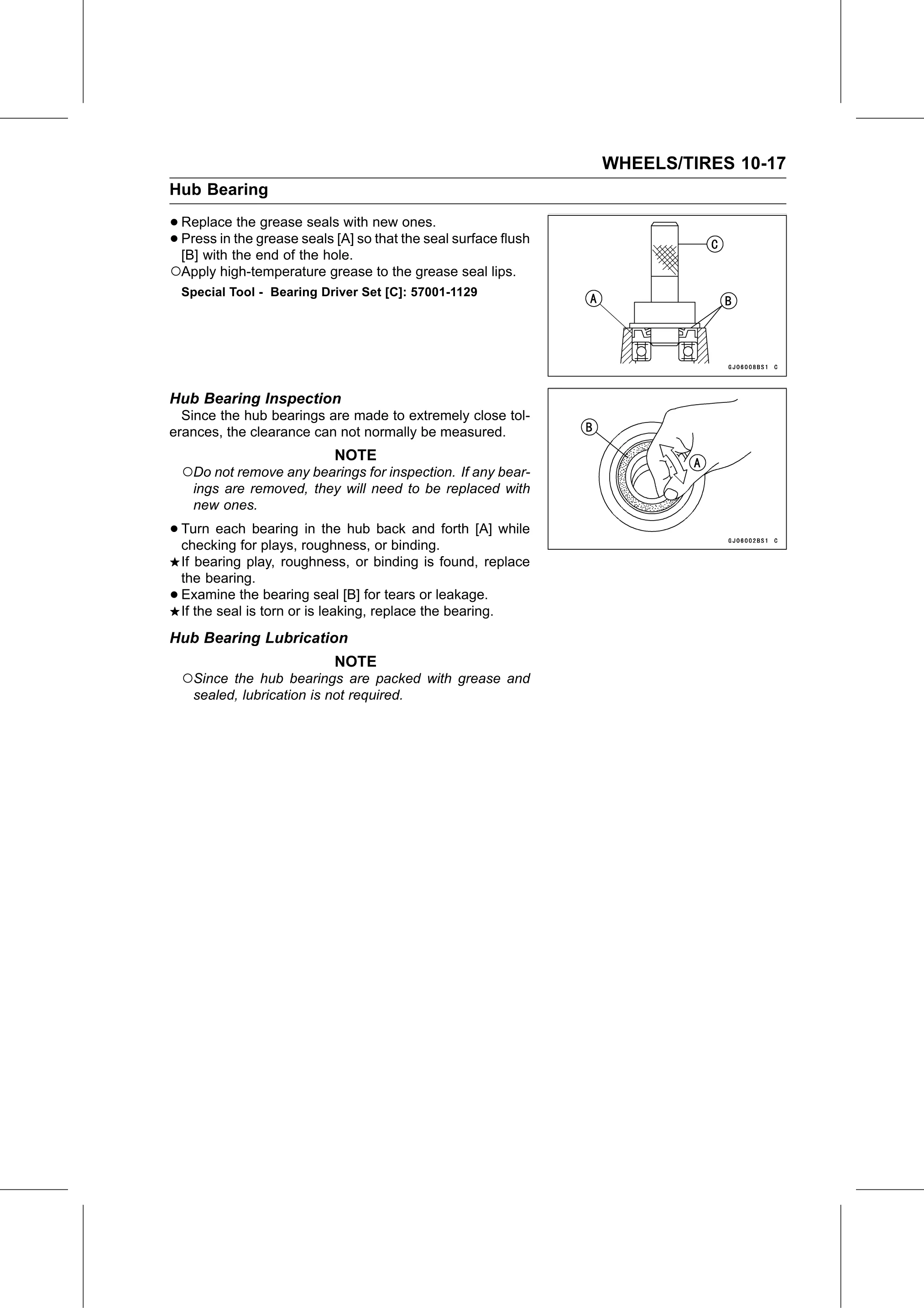

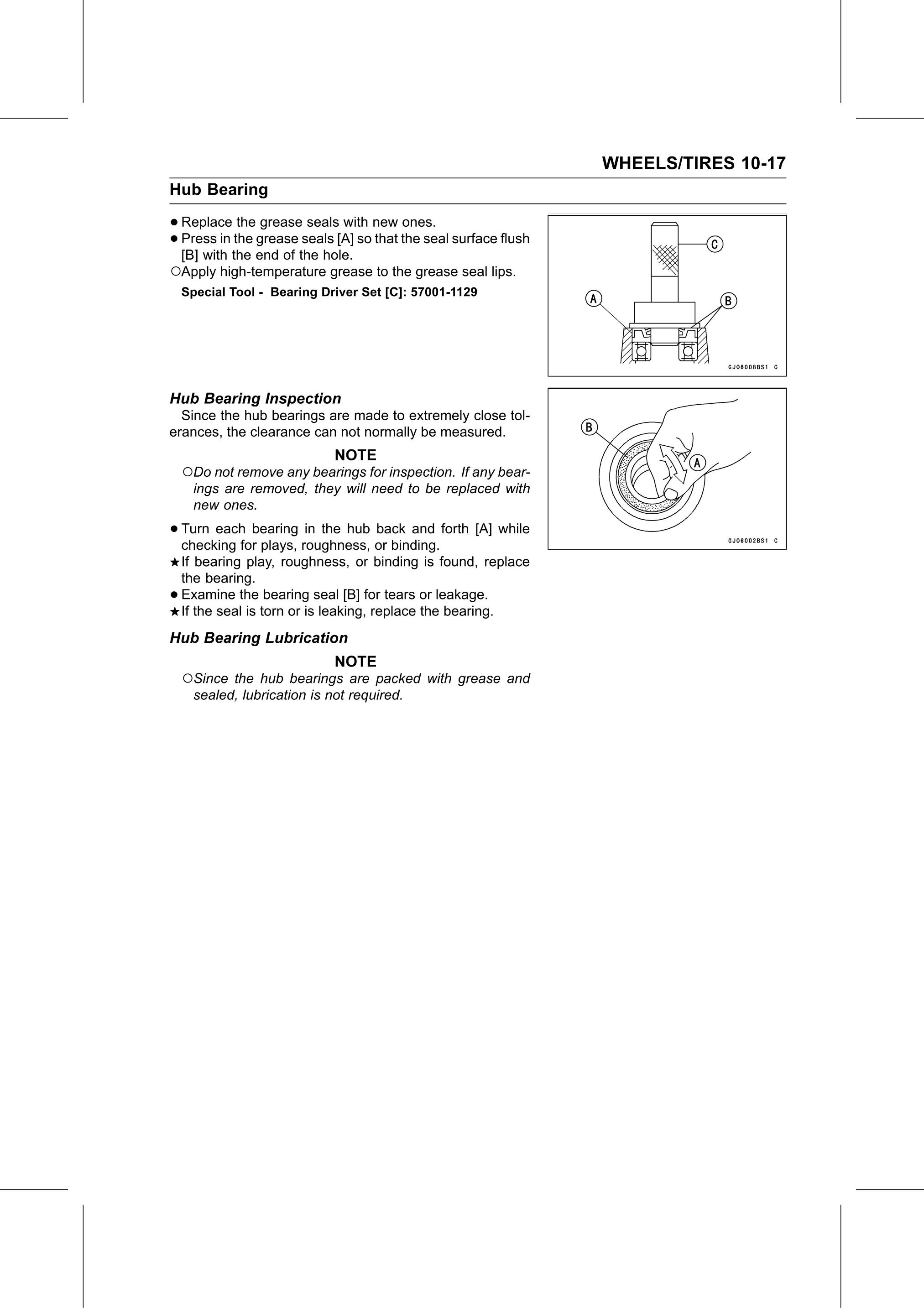

WHEELS/TIRES 10-17
Hub Bearing

• Replace    the grease seals with new ones.
• [B] with the end
  Press  in the grease seals [A] so that the seal surface flush
                    of the hole.
○Apply high-temperature grease to the grease seal lips.
    Special Tool - Bearing Driver Set [C]: 57001-1129

Hub Bearing Inspection
  Since the hub bearings are made to extremely close tol-
erances, the clearance can not normally be measured.
                             NOTE
    ○Do not remove any bearings for inspection. If any bear-
     ings are removed, they will need to be replaced with
     new ones.

• Turn each bearing in the hub back and forth [A] while
  checking for plays, roughness, or binding.
    If bearing play, roughness, or binding is found, replace
    the bearing.
•   Examine the bearing seal [B] for tears or leakage.
    If the seal is torn or is leaking, replace the bearing.
Hub Bearing Lubrication
                             NOTE
    ○Since the hub bearings are packed with grease and
     sealed, lubrication is not required.
