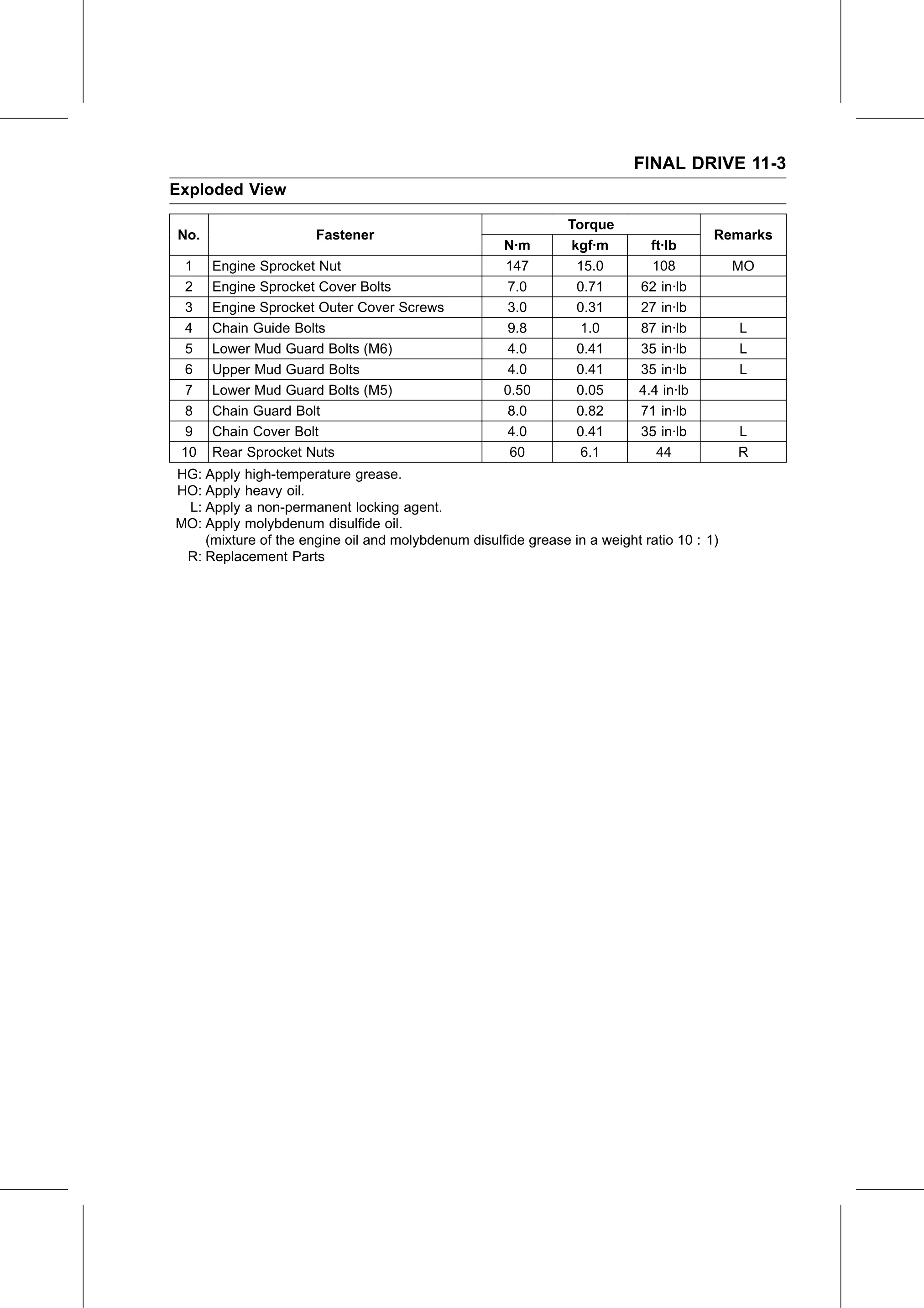

FINAL DRIVE 11-3
Exploded View

                                                               Torque
No.                   Fastener                                                         Remarks
                                                     N·m       kgf·m         ft·lb
  1   Engine Sprocket Nut                            147        15.0         108           MO
  2   Engine Sprocket Cover Bolts                     7.0       0.71       62 in·lb
  3   Engine Sprocket Outer Cover Screws              3.0       0.31       27 in·lb
  4   Chain Guide Bolts                               9.8        1.0       87 in·lb        L
  5   Lower Mud Guard Bolts (M6)                      4.0       0.41       35 in·lb        L
  6   Upper Mud Guard Bolts                           4.0       0.41       35 in·lb        L
  7   Lower Mud Guard Bolts (M5)                     0.50       0.05       4.4 in·lb
  8   Chain Guard Bolt                                8.0       0.82       71 in·lb
  9   Chain Cover Bolt                                4.0       0.41       35 in·lb        L
 10   Rear Sprocket Nuts                              60         6.1          44           R
HG: Apply high-temperature grease.
HO: Apply heavy oil.
 L: Apply a non-permanent locking agent.
MO: Apply molybdenum disulfide oil.
    (mixture of the engine oil and molybdenum disulfide grease in a weight ratio 10 : 1)
 R: Replacement Parts
