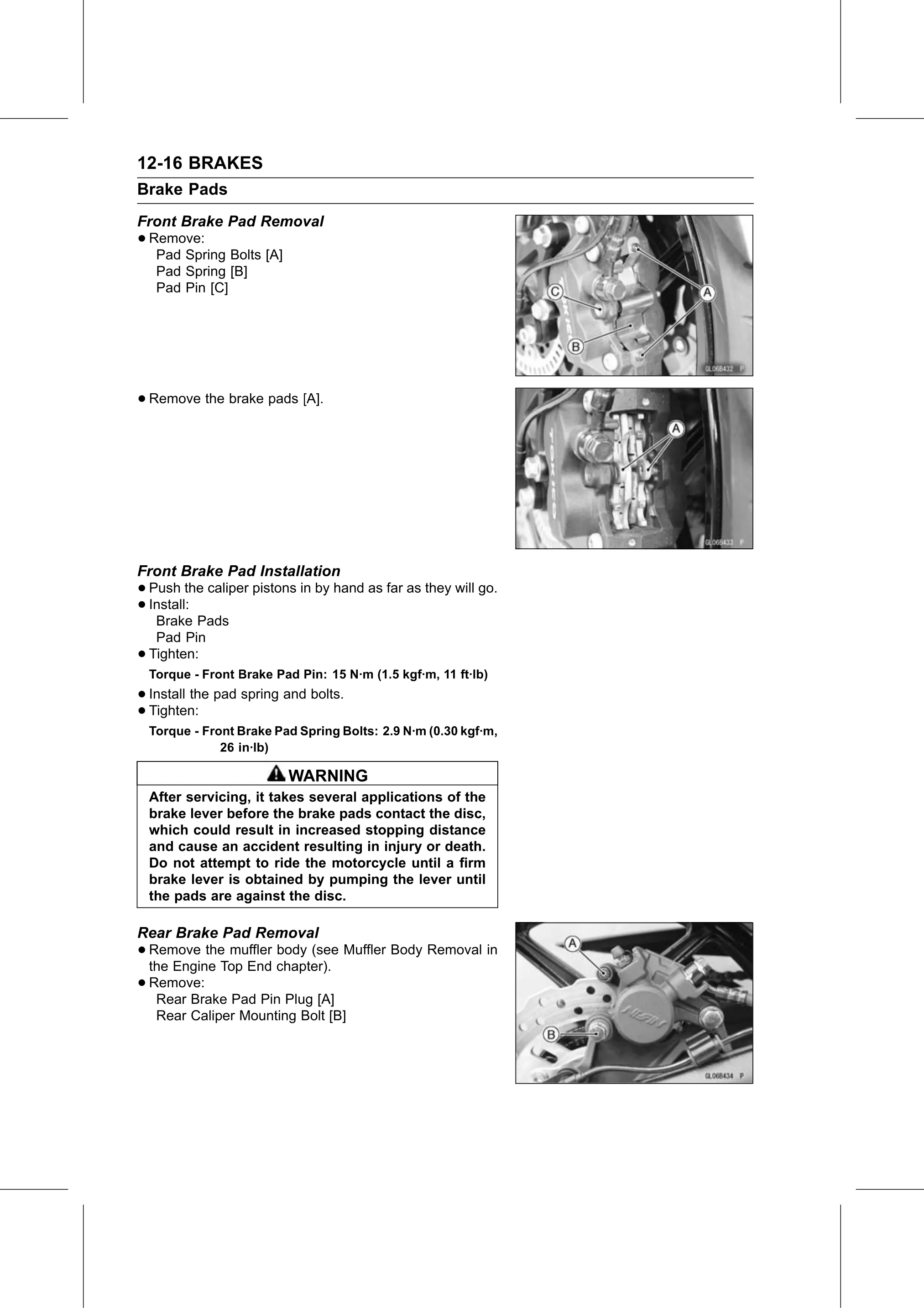

12-16 BRAKES
Brake Pads
Front Brake Pad Removal
• Remove:
   Pad Spring Bolts [A]
     Pad Spring [B]
     Pad Pin [C]

• Remove the brake pads [A].

Front Brake Pad Installation
• Push   the caliper pistons in by hand as far as they will go.
• Install:
   Brake Pads
     Pad Pin
•   Tighten:
    Torque - Front Brake Pad Pin: 15 N·m (1.5 kgf·m, 11 ft·lb)
• Install the pad spring and bolts.
• Tighten:
    Torque - Front Brake Pad Spring Bolts: 2.9 N·m (0.30 kgf·m,
                26 in·lb)

                           WARNING
    After servicing, it takes several applications of the
    brake lever before the brake pads contact the disc,
    which could result in increased stopping distance
    and cause an accident resulting in injury or death.
    Do not attempt to ride the motorcycle until a firm
    brake lever is obtained by pumping the lever until
    the pads are against the disc.

Rear Brake Pad Removal
• Remove   the muffler body (see Muffler Body Removal in
  the Engine Top End chapter).
• Remove:
   Rear Brake Pad Pin Plug [A]
     Rear Caliper Mounting Bolt [B]
