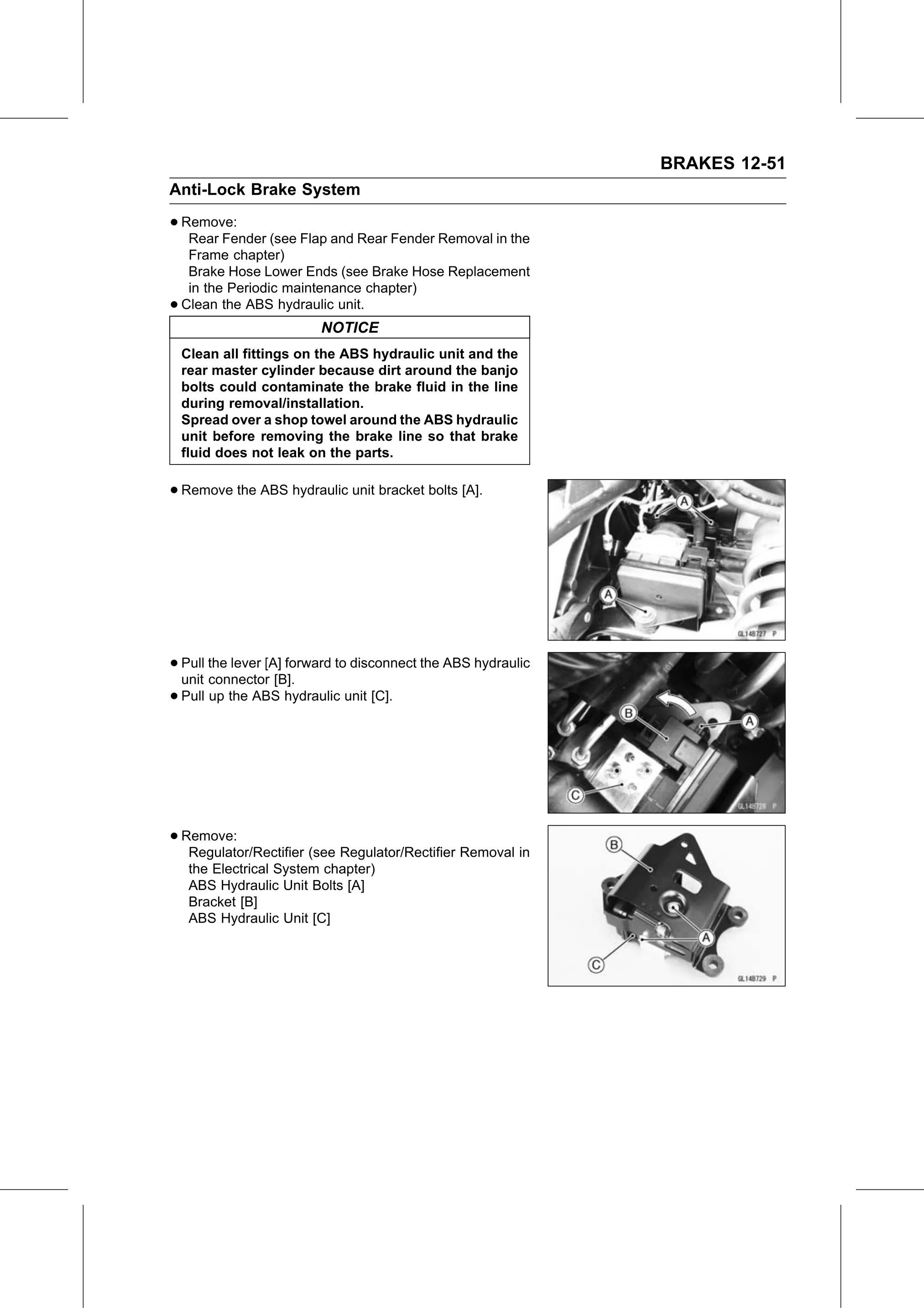

BRAKES 12-51
Anti-Lock Brake System

• Remove:
   Rear Fender (see Flap and Rear Fender Removal in the
     Frame chapter)
     Brake Hose Lower Ends (see Brake Hose Replacement
     in the Periodic maintenance chapter)
•   Clean the ABS hydraulic unit.
                          NOTICE
    Clean all fittings on the ABS hydraulic unit and the
    rear master cylinder because dirt around the banjo
    bolts could contaminate the brake fluid in the line
    during removal/installation.
    Spread over a shop towel around the ABS hydraulic
    unit before removing the brake line so that brake
    fluid does not leak on the parts.

• Remove the ABS hydraulic unit bracket bolts [A].

• Pull the lever [A] forward to disconnect the ABS hydraulic
  unit connector [B].
• Pull up the ABS hydraulic unit [C].

• Remove:
   Regulator/Rectifier (see Regulator/Rectifier Removal in
     the Electrical System chapter)
     ABS Hydraulic Unit Bolts [A]
     Bracket [B]
     ABS Hydraulic Unit [C]
