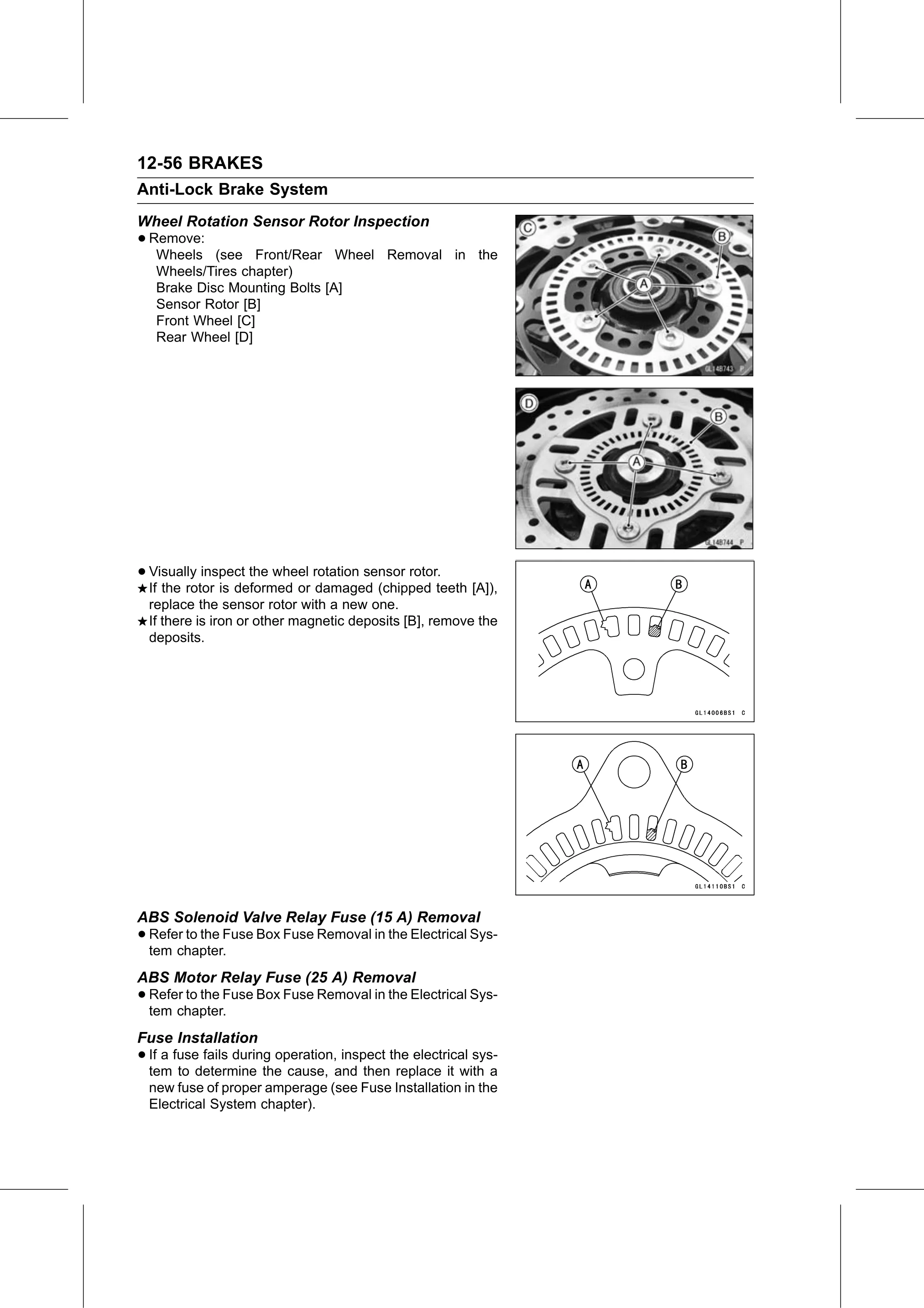

12-56 BRAKES
Anti-Lock Brake System
Wheel Rotation Sensor Rotor Inspection
• Remove:
   Wheels (see Front/Rear Wheel Removal in the
   Wheels/Tires chapter)
   Brake Disc Mounting Bolts [A]
   Sensor Rotor [B]
   Front Wheel [C]
   Rear Wheel [D]

• Visually  inspect the wheel rotation sensor rotor.
  If the rotor is deformed or damaged (chipped teeth [A]),
  replace the sensor rotor with a new one.
  If there is iron or other magnetic deposits [B], remove the
  deposits.

ABS Solenoid Valve Relay Fuse (15 A) Removal
• Refer to the Fuse Box Fuse Removal in the Electrical Sys-
  tem chapter.
ABS Motor Relay Fuse (25 A) Removal
• Refer to the Fuse Box Fuse Removal in the Electrical Sys-
  tem chapter.
Fuse Installation
• Iftema fuse fails during operation, inspect the electrical sys-
          to determine the cause, and then replace it with a
  new fuse of proper amperage (see Fuse Installation in the
  Electrical System chapter).
