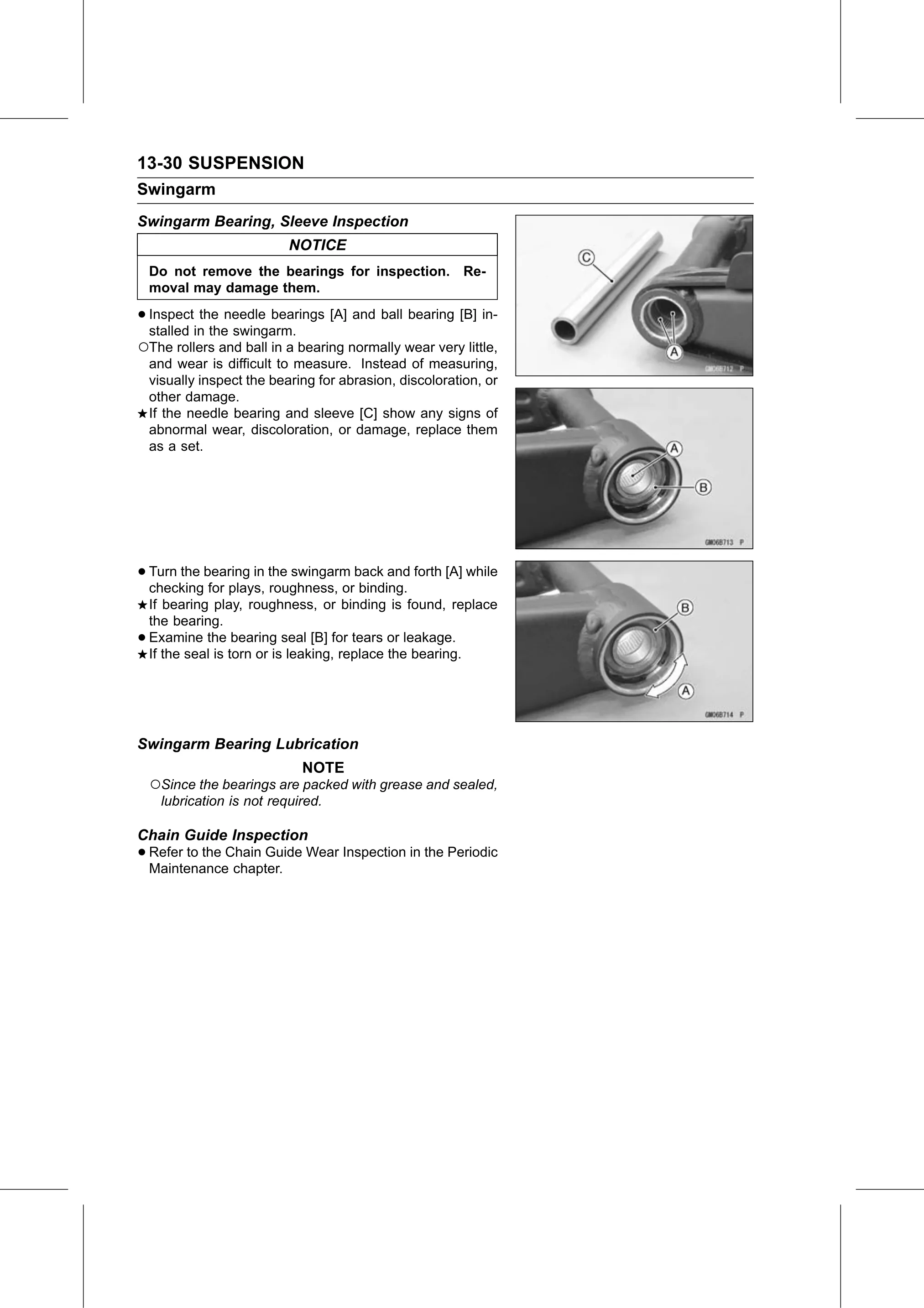

13-30 SUSPENSION
Swingarm
Swingarm Bearing, Sleeve Inspection
                            NOTICE
    Do not remove the bearings for inspection. Re-
    moval may damage them.

• Inspect  the needle bearings [A] and ball bearing [B] in-
  stalled in the swingarm.
○The rollers and ball in a bearing normally wear very little,
    and wear is difficult to measure. Instead of measuring,
    visually inspect the bearing for abrasion, discoloration, or
    other damage.
    If the needle bearing and sleeve [C] show any signs of
    abnormal wear, discoloration, or damage, replace them
    as a set.

• Turn the bearing in the swingarm back and forth [A] while
  checking for plays, roughness, or binding.
    If bearing play, roughness, or binding is found, replace
    the bearing.
•   Examine the bearing seal [B] for tears or leakage.
    If the seal is torn or is leaking, replace the bearing.

Swingarm Bearing Lubrication
                              NOTE
    ○Since the bearings are packed with grease and sealed,
      lubrication is not required.

Chain Guide Inspection
• Refer to the Chain Guide Wear Inspection in the Periodic
  Maintenance chapter.
