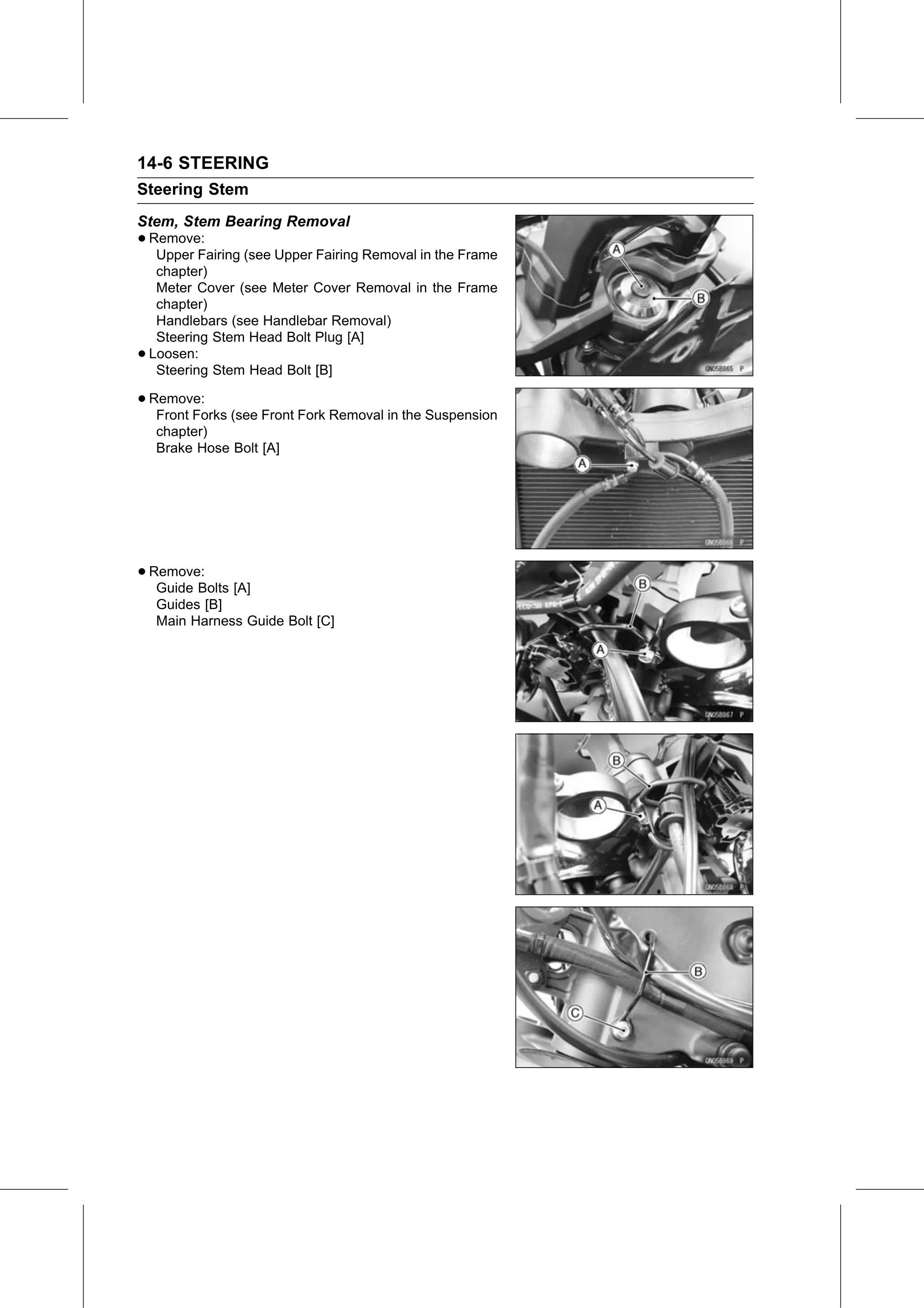

14-6 STEERING
Steering Stem
Stem, Stem Bearing Removal
• Remove:
   Upper Fairing (see Upper Fairing Removal in the Frame
     chapter)
     Meter Cover (see Meter Cover Removal in the Frame
     chapter)
     Handlebars (see Handlebar Removal)
     Steering Stem Head Bolt Plug [A]
•   Loosen:
     Steering Stem Head Bolt [B]

• Remove:
   Front Forks (see Front Fork Removal in the Suspension
     chapter)
     Brake Hose Bolt [A]

• Remove:
   Guide Bolts [A]
     Guides [B]
     Main Harness Guide Bolt [C]
